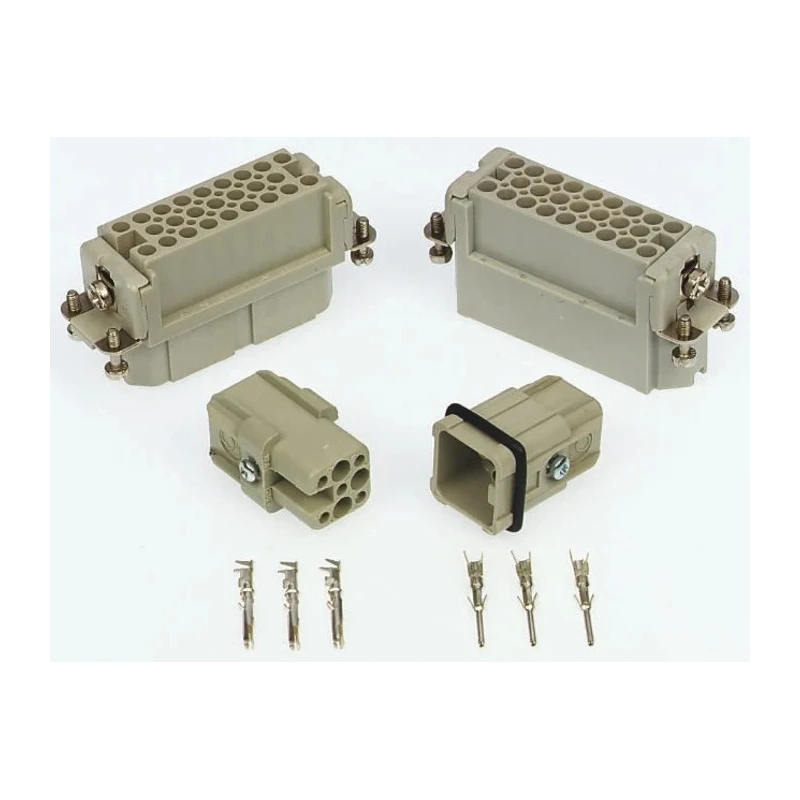

EPIC Heavy Duty Power Connector Insert, 10A, H-D Series Male, 40 Contacts 11.2650

EPIC 11.2650 Heavy Duty Power Connector Insert is engineered for demanding electrical applications requiring robust and reliable power connections. This male insert is part of the H-D series and rated for 10A at 250V, making it suitable for industrial, manufacturing, and commercial electronic systems.

The connector features 40 contacts arranged in three rows plus a dedicated earth contact, enabling high-density wiring in a compact footprint. The contacts are crafted from copper alloy and silver-plated for superior conductivity and resistance to wear, ensuring long service life even under harsh conditions.

Its cable mount design and straight orientation facilitate straightforward installation and integration into existing cable systems. The IP54 rating offers protection against dust ingress and water splashes, suitable for industrial or laboratory environments.

The insert supports wire sizes from 0.5 mm² to 1.5 mm² and is designed for use with heavy-duty power connectors in the H-D series. The product conforms to electrical safety standards including VDE 0110 and others, as well as approvals such as SEV, UL, and CSA, enhancing its trustworthy performance in critical electrical applications.

Applications include power distribution assemblies, machine control wiring, and motor connections in industrial automation, construction equipment, and commercial power setups. The design allows for tool-assisted crimp termination with available tooling options for easy and reliable contact termination.

EPIC's heavy-duty power connector inserts are built to interface seamlessly with a wide range of compatible connectors, ensuring flexible system assembly and maintenance. The earth connection is integrated through all inserts and metal body shells for enhanced safety grounding.

Designed for heavy duty power connector applications with male configuration. Rated for 10 amperes at 250 volts ensuring reliable electrical performance. Equipped with 40 contacts arranged in 3 rows plus earth for high-density connections.

Constructed with copper alloy contacts plated in silver for excellent conductivity and durability. Features straight orientation and cable mount type with IP54 protection rating. Compatible with H-D series heavy duty power connectors for versatile use.

Wire size range supported from 0.5 mm² minimum to 1.5 mm² maximum for flexible wiring options. Product made in Germany, meeting VDE and other electrical standards. Explore the comprehensive range of industrial power connectors and inserts available at EnvMart for your electrical assembly and maintenance requirements.
