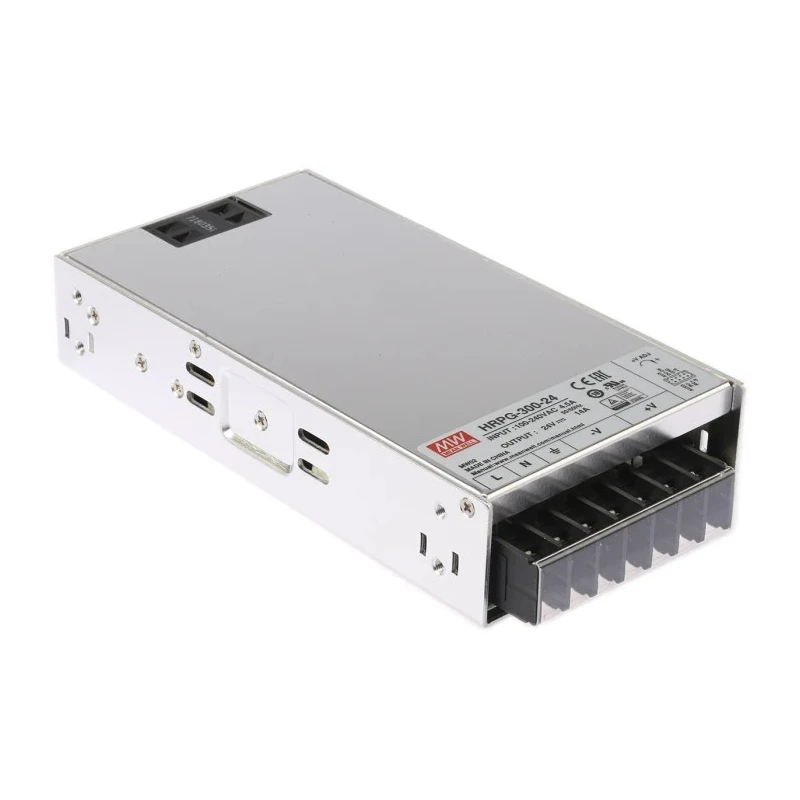

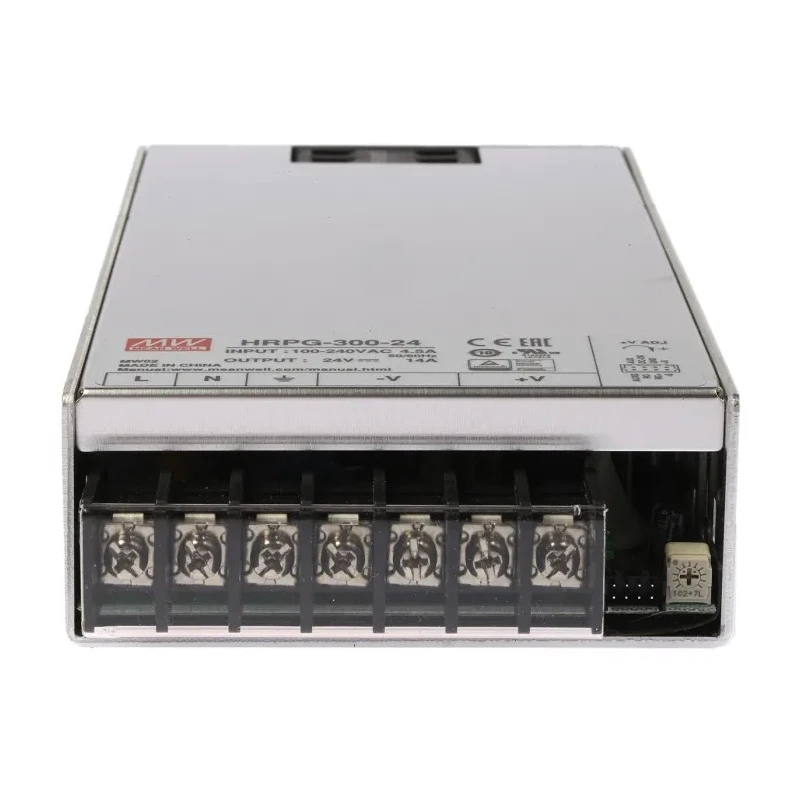

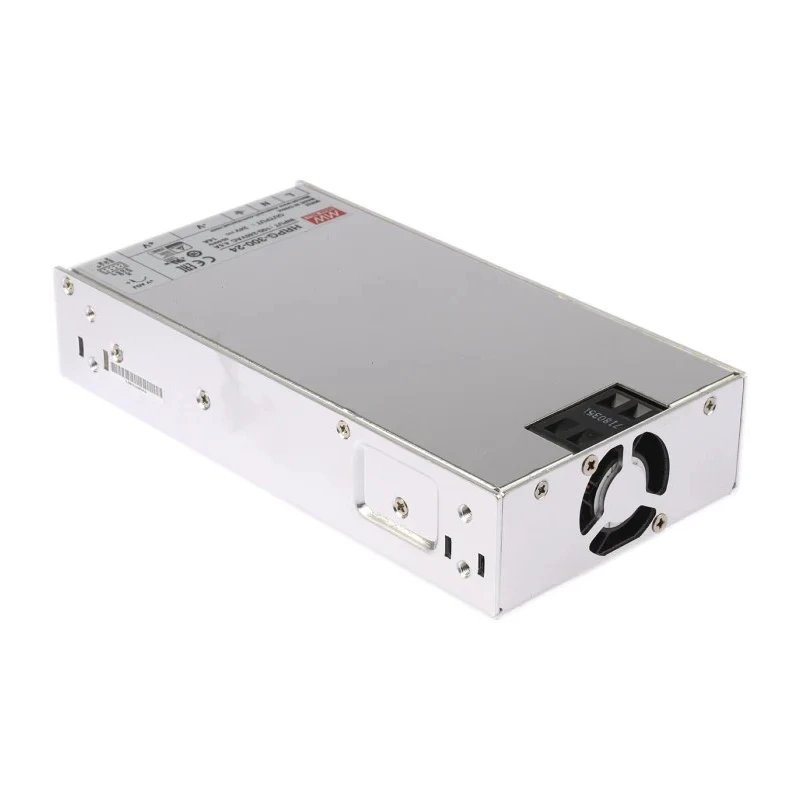

MEAN WELL Switching Power Supply, 336W, 24V DC Output, 14A Output Current, Universal Input 85-264VAC / HRPG-300-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL Switching Power Supply, 336W, 24V DC Output, 14A Output Current, Universal Input 85-264VAC / HRPG-300-24

Name: MEAN WELL Switching Power Supply, 336W, 24V DC Output, 14A Output Current, Universal Input 85-264VAC / HRPG-300-24
Brand: MEAN WELL
SKU: 102495
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	336W
Efficiency	87%
Length	199mm
Model	HRPG-300-24
Depth	41mm
Gross Weight	950g
Width	105mm
Mount Type	Chassis
Series	HRPG-300
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Standards/Approvals	ASNZS 668.1, EAC TP TC 004, TUV BS ENEN 6681, UL 6681
Maximum Output Voltage	24V dc
SMPS Output Current	14A
Minimum Input Voltage	85V ac

Key Features

Universal input voltage range of 85-264VAC and 120-370VDC supports varied power sources.
Chassis mount design enables easy integration into systems requiring reliable power modules.
High efficiency of 87% reduces power loss and operating costs.
Built-in active PFC and multiple protections ensure safety and compliance.
Operating temperature range from -40°C to 70°C supports harsh environments.
Compact dimensions of 199mm(L) x 105mm(W) x 41mm(D) save space in installation.
Single output simplifies design for dedicated 24V DC power requirements.
Includes cooling fan with ON/OFF control to maintain optimal thermal conditions.

Product Description

MEAN WELL HRPG-300-24 is a robust switching power supply delivering 336 watts of power with a constant 24V DC output at 14 amps, designed for industrial, manufacturing, and commercial electrical applications. This unit supports a universal input voltage range from 85V AC up to 264V AC and 120V DC up to 370V DC, allowing flexible power sourcing in diverse environments.

The chassis mount design offers secure installation with compact dimensions 199mm length, 105mm width, and 41mm depth, perfectly suited for panel integration where space is limited. Operating efficiently at up to 87%, this power supply reduces energy waste and contributes to system reliability.

Essential features include built-in active power factor correction (PFC), constant current limiting, and multiple protections against short circuits, overloads, over voltage, and over temperature conditions. The unit also incorporates an automatic cooling fan with ON/OFF control, remote sense function, and a DC OK signal for status monitoring.

Certified to international standards such as UL60950-1, TUV, EN60950-1, and compliant with EN55022 class B EMC requirements, the HRPG-300-24 assures safe and dependable operation. It withstands 300VAC surge input for 5 seconds, supporting use in environments with unstable power conditions.

With an operating temperature range from -40°C to 70°C, this power supply is suitable for harsh industrial and commercial ambient temperatures. Its high reliability and long life make it an excellent choice for powering automation hardware, control systems, communication equipment, and other DC voltage applications.

Universal wide input voltage supports AC and DC supplies. High efficiency minimizes power loss and thermal load. Multiple built-in protections enhance safety and durability. Compact chassis mount facilitates flexible installation.

Cooling fan control optimizes operating temperature and longevity. Wide temperature rating enables use in extreme conditions. Complies with rigorous international safety and EMC standards. Explore more power supplies and electronic components at EnvMart to meet your industrial and commercial power management needs.
