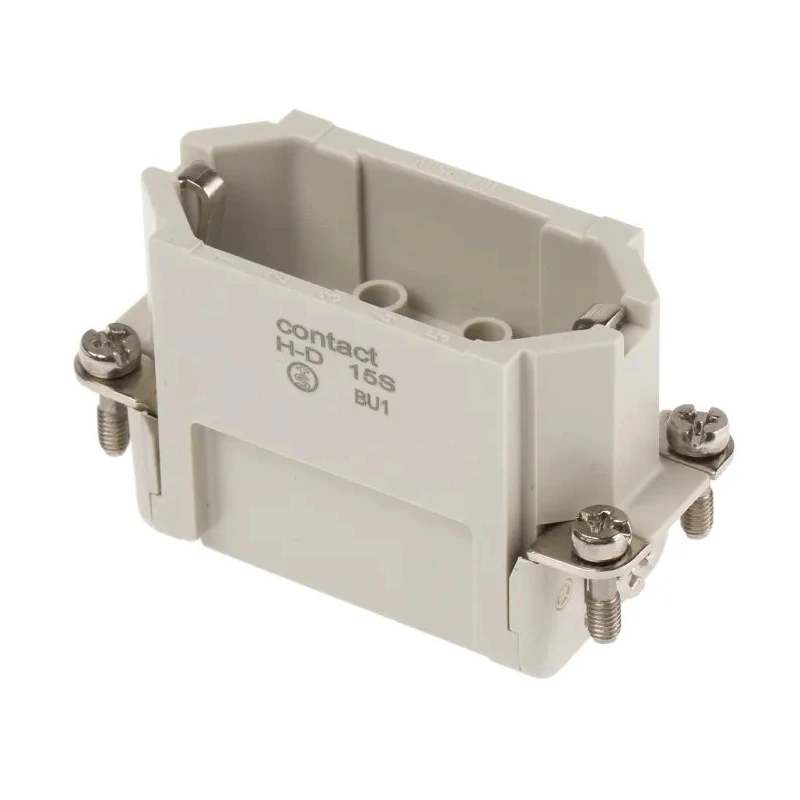

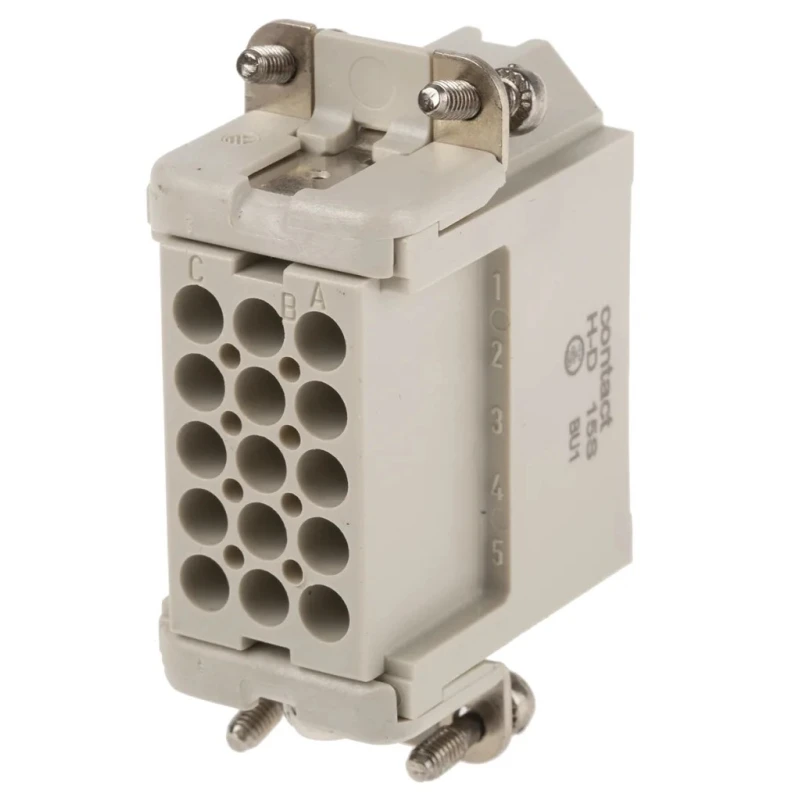

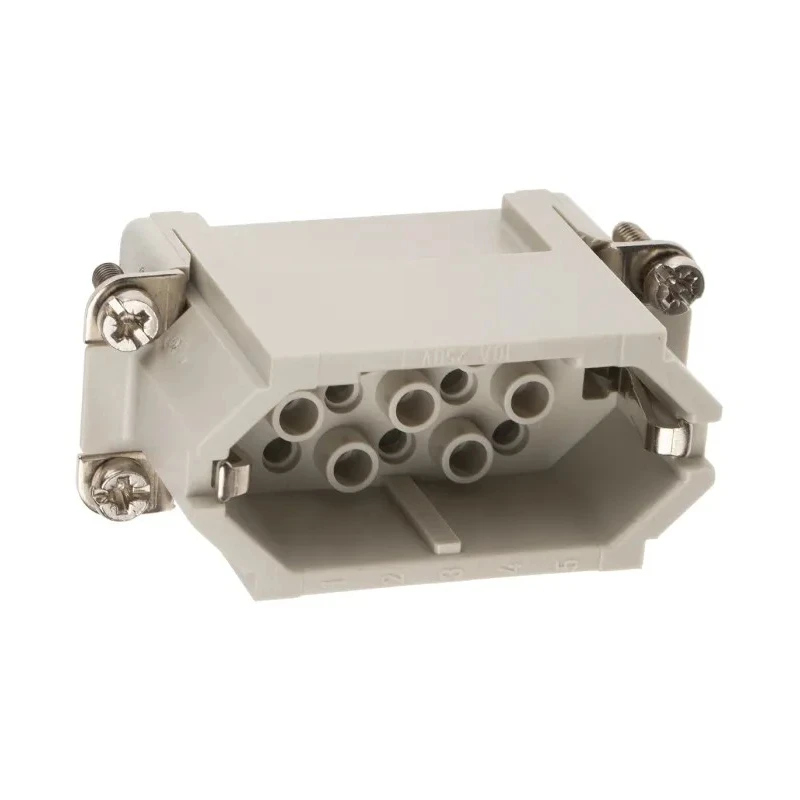

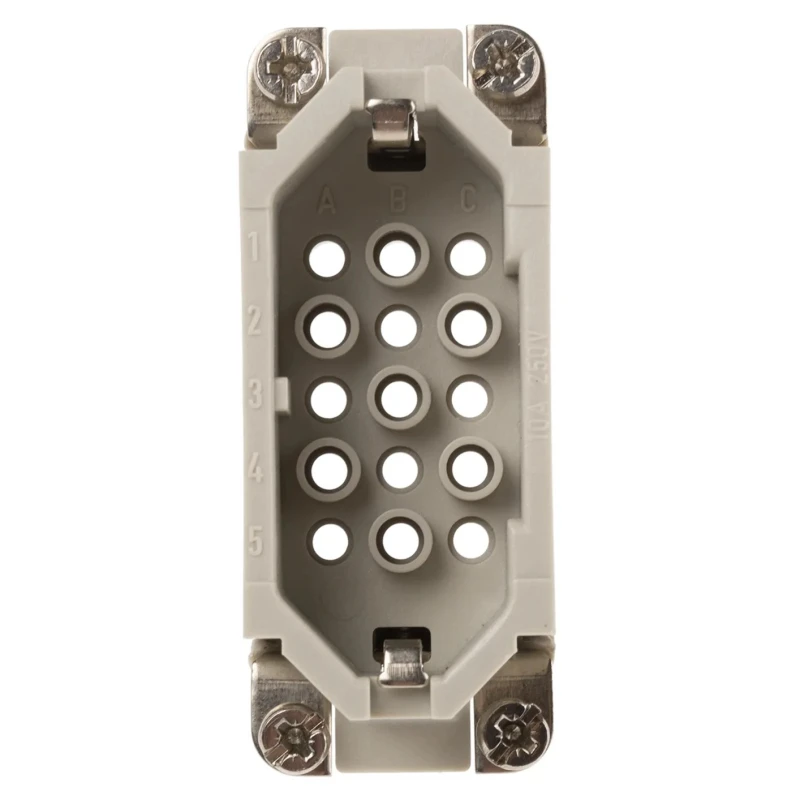

EPIC Heavy Duty Power Connector Insert, 10A Current Rating, 15 Contacts, Cable Mount, Silver Plated Copper Alloy 11.2550

Name: EPIC Heavy Duty Power Connector Insert, 10A Current Rating, 15 Contacts, Cable Mount, Silver Plated Copper Alloy 11.2550
Brand: EPIC
SKU: 183165
Price: 12.4 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand EPIC Condition New

Specifications

Country of Origin	Germany
Voltage	250V
Brand	EPIC
Orientation	Straight
Model	11.2550
IP Rating	IP54
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	10A
Series	H-D
Sub Type	Connector Insert
For Use With	Heavy Duty Power Connector
Pole Format	15+E
Contact Plating	Silver
Number of Contacts	15
Connector Gender	Male
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Lapp, 15 Way, 10A, Male, H-D, 250 VBrand	Lapp

Key Features

This connector is rated for a voltage of 250V and features a straight orientation for male connectors.
It has an IP54 ingress protection rating ensuring durability in industrial environments.
Contacts are made from copper alloy with silver plating to provide reliable electrical conductivity and corrosion resistance.
Connector supports a wire size range from 0.5mm² to 1.5mm², suitable for a variety of cable types.
The insert features a high-density contact loading, enabling more power and control connections in a smaller shell size.
It uses 8-point indent crimp termination, providing simple and effective contact assembly.
Earth connection is separately established through all inserts, ensuring safety compliance.
This connector is made in Germany and complies with standards VDE 0110//72, 0110b, 79, and VDE 0627//86.

Product Description

EPIC 11.2550 Heavy Duty Power Connector Insert is a male connector designed for reliable power and control connections in industrial and electronic applications. Rated at 10A current and 250V voltage, it accommodates 15 contacts with a straight orientation and is mounted via cable connection in the H-D series configuration.

The use of copper alloy contacts with silver plating enhances electrical conductivity while resisting corrosion. The connector supports wire sizes from 0.5mm² to 1.5mm², making it versatile for different cable specifications.

Providing high-density contact loading, the insert allows more connections within smaller shell sizes. Termination uses a quality 8 point indent crimp tool for enhanced serviceability and reliability. The earth connection is made separately through all inserts and connects to metal body shells for safety.

This product features an IP54 ingress protection rating, assuring protection against dust ingress and water splashes, suitable for demanding industrial environments. The connector upholds international standards including VDE 0110 and VDE 0627, and is manufactured in Germany.

Applications include industrial automation, power distribution systems, machinery controls, and electronic component assemblies requiring durable and reliable power connectors. This connector facilitates secure and reliable electrical connections in industrial settings.

High contact density maximizes connection points while minimizing space requirements. Quality materials and plating ensure long service life and corrosion resistance. IP54 rating guarantees performance under industrial environmental conditions.

Separate earth connections enhance safety protocols.

Choose EPIC H-D series power connectors to optimize your heavy-duty electrical system's performance and reliability. Browse other EPIC heavy-duty power connectors and modules on EnvMart for complementary products.
