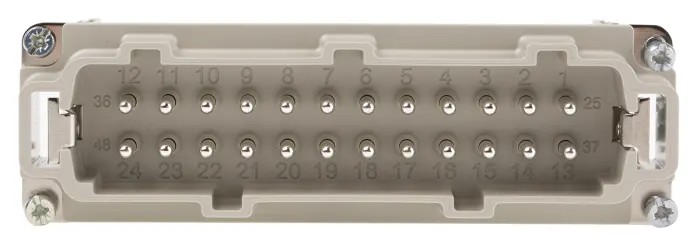

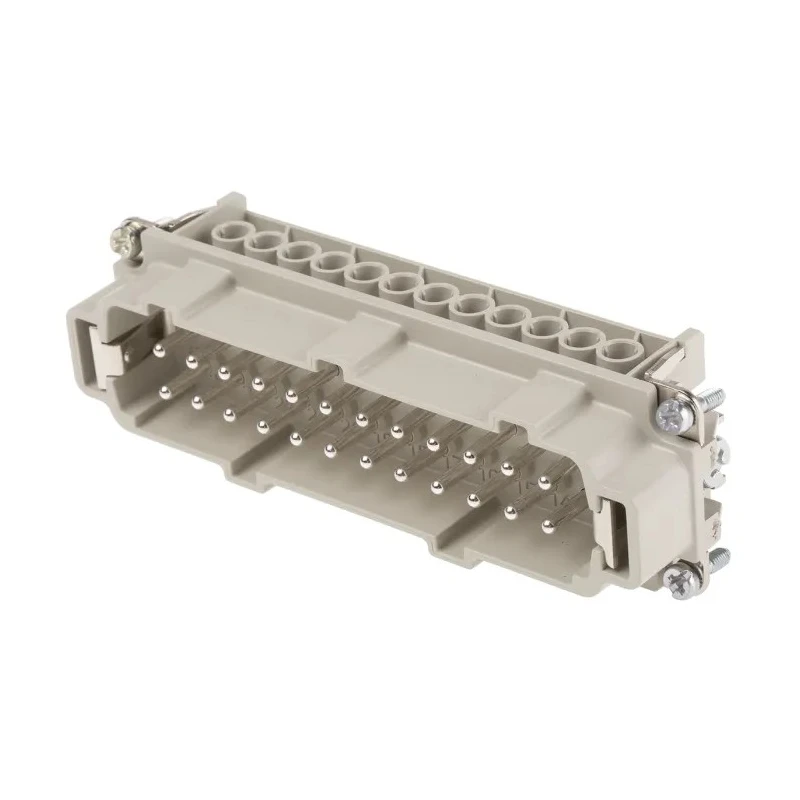

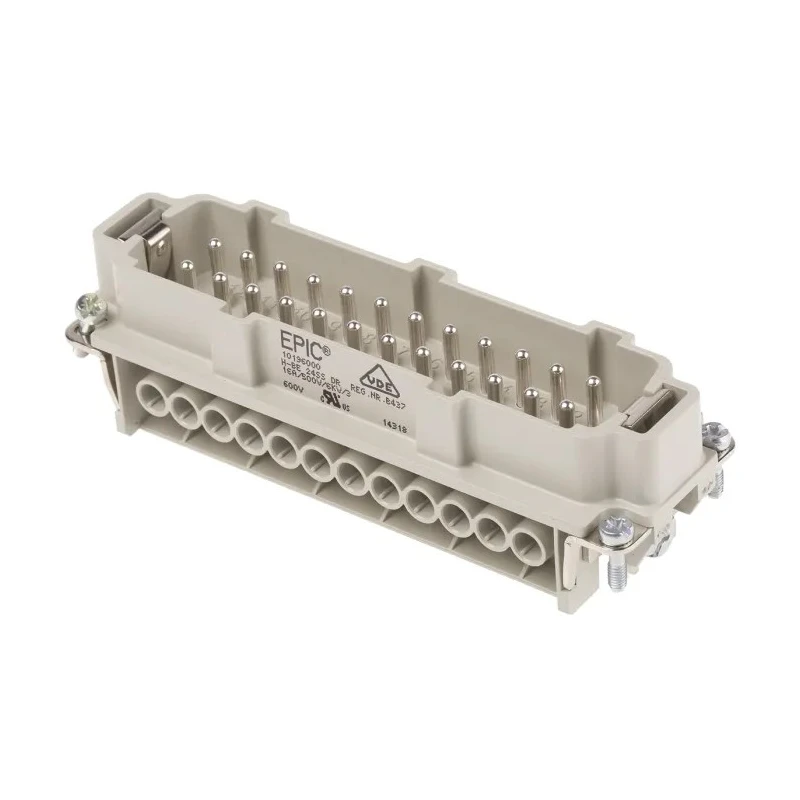

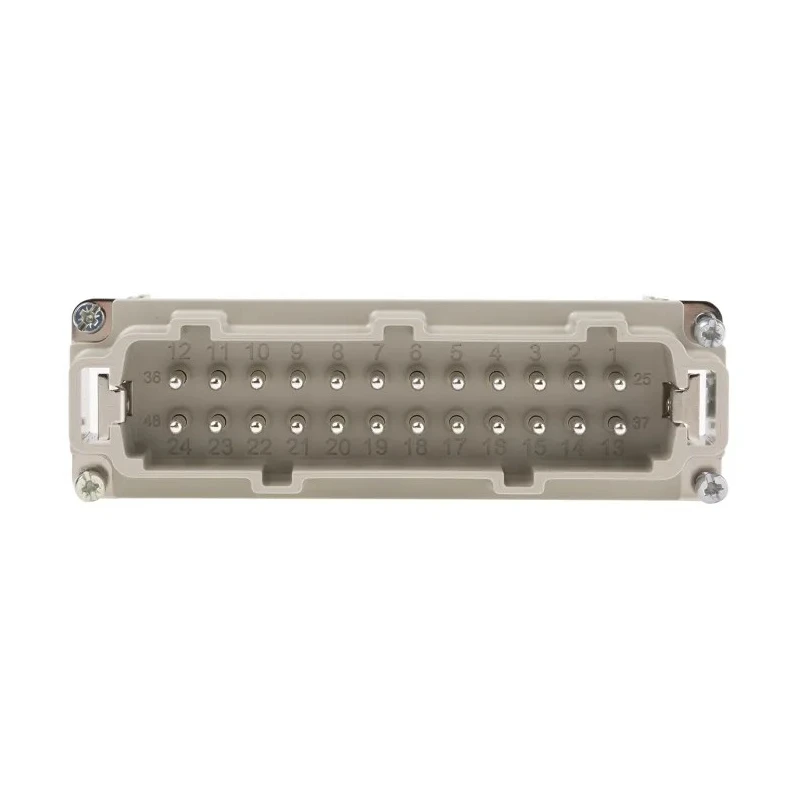

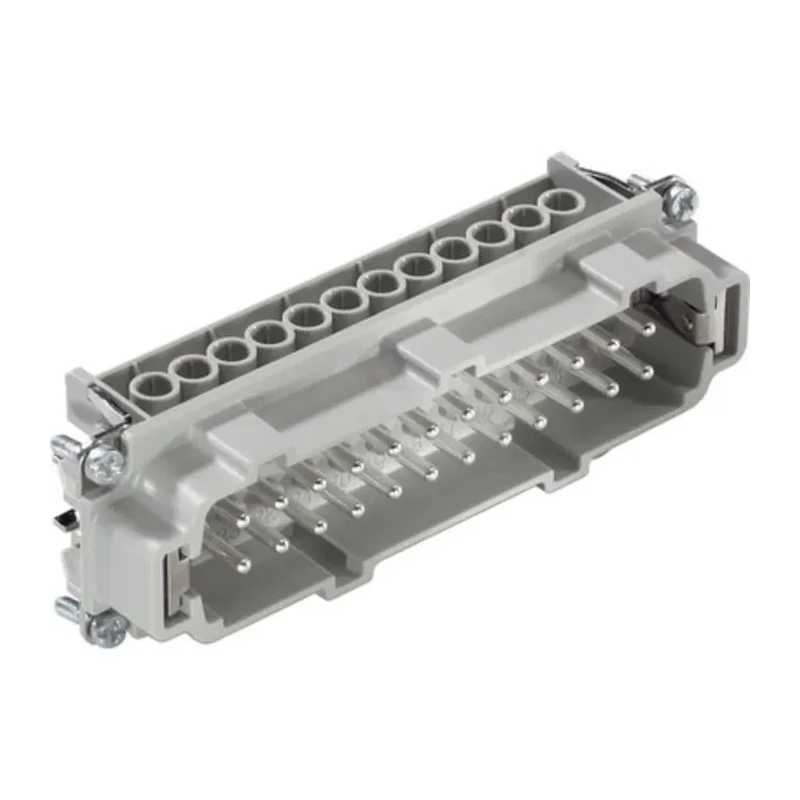

EPIC Heavy Duty Power Connector Insert, 16A Current Rating, 600V Voltage, 24 Contacts, Male, H-BE Series 10196000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | EPIC |
| Orientation | Straight |
| Model | 10196000 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | H-BE |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 24+PE |
| Contact Plating | Silver |
| Number of Contacts | 24 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for currents up to 16A and voltages up to 600V.
- Part of the H-BE series with a male connector gender.
- Features 24 contacts plus protective earth arranged in two rows with straight orientation.
- Constructed with durable copper alloy contacts plated with silver for reduced corrosion and enhanced conductivity.
- Supports cables from 0.5mm² to 2.5mm² wire size with crimp termination for secure, vibration-resistant connection.
- IP65 rated to provide reliable protection against dust and water ingress for harsh environments.
- Wide operating temperature range from -40°C to +100°C suitable for industrial automotive and robotics environments.
- Manufactured in Germany with high standards for long-lasting performance up to 500 cycles.
Product Description
EPIC 10196000 Heavy Duty Power Connector Insert is engineered for robust industrial use, delivering a reliable performance at 16A current and 600V voltage ratings. Its 24-contact male insert from the H-BE series offers a compact design with two rows of contacts arranged in a straight orientation, ensuring efficient space utilization in heavy-duty power connectors.
This connector insert is designed for cable mounting with crimp terminations that resist heat and vibration, guaranteeing a stable and secure connection. The contacts are crafted from copper alloy and coated with silver plating, enhancing durability and conductivity while resisting corrosion. Its IP65 rating ensures protection against dust and water, making it suitable for challenging environments including automotive production, robotics systems, and manufacturing facilities.
Supporting wire sizes from 0.5mm² to 2.5mm², this unit offers flexibility and compatibility with a variety of heavy-duty cables. Its wide operating temperature range from -40°C to +100°C further extends its usability in harsh industrial conditions. Made in Germany, the EPIC 10196000 insert offers up to 500 cycles of durability ensuring long-term service life.
Applications include robust power distribution and signal connections in automotive manufacturing, robotics automation, and heavy industrial environments. Rated at 16A current and 600V voltage for heavy-duty power applications.
24 contacts in two rows with male connector gender, H-BE series design. Copper alloy contacts with silver plating for enhanced conductivity and corrosion resistance. IP65 rated for dust and water protection suitable for harsh industrial environments.
Crimp termination for secure and vibration-resistant cable connections. Wide temperature tolerance from -40°C to +100°C for diverse conditions. Supports wire sizes from 0.5mm² to 2.5mm² for compatibility with varied cables.
Manufactured in Germany ensuring quality and durability, with a lifecycle up to 500 mating cycles. Ideal for automotive, robotics, and manufacturing facility power connector needs. Browse the Electronics & Electricals > Power Connectors category on EnvMart to explore more high-quality connectors and modules from EPIC and other leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for a current of 16A and a voltage of 600V.
It features 24 contacts plus a protective earth, arranged in two rows with a straight orientation.
The connector has an IP65 rating, providing protection against dust and water ingress.
It supports wire sizes ranging from 0.5mm² to 2.5mm² with crimp termination for secure connections.
The contacts are made from copper alloy and are plated with silver to enhance conductivity and resist corrosion.
It operates effectively within a temperature range of -40°C to +100°C, suitable for harsh industrial conditions.
This connector insert is manufactured in Germany, adhering to high-quality standards.
It is designed for cable mounting, allowing for secure and vibration-resistant connections.
It is suitable for robust power distribution and signal connections in automotive manufacturing, robotics automation, and heavy industrial environments.
The connector is designed for up to 500 mating cycles, ensuring long-term service life.
This model features a male connector gender, part of the H-BE series.
The contacts are arranged in a straight orientation, which aids in efficient space utilization.
