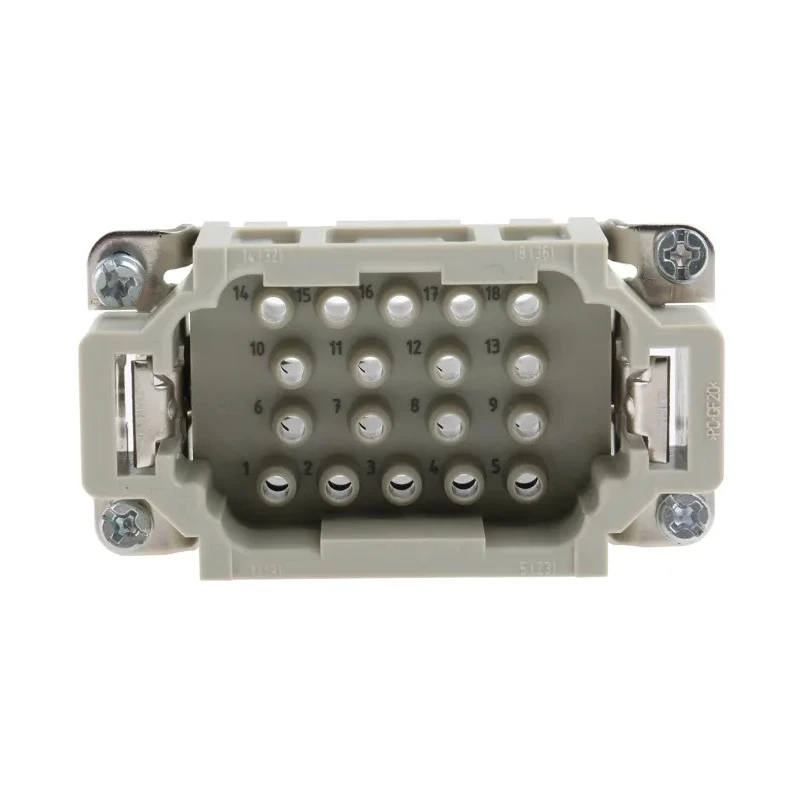

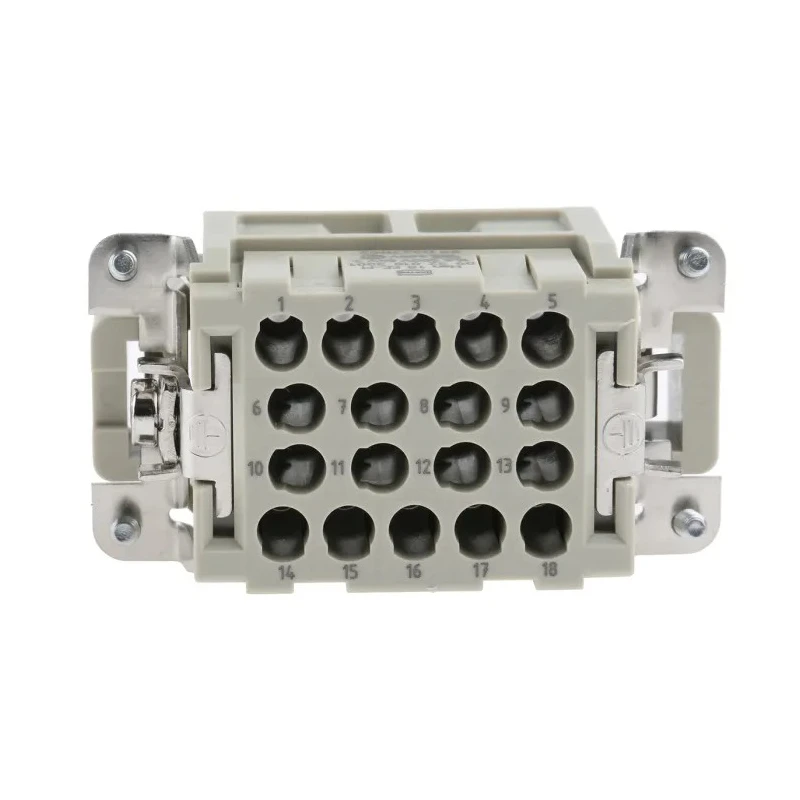

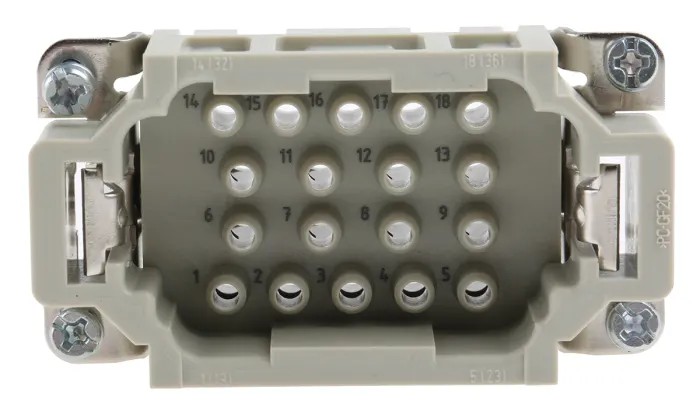

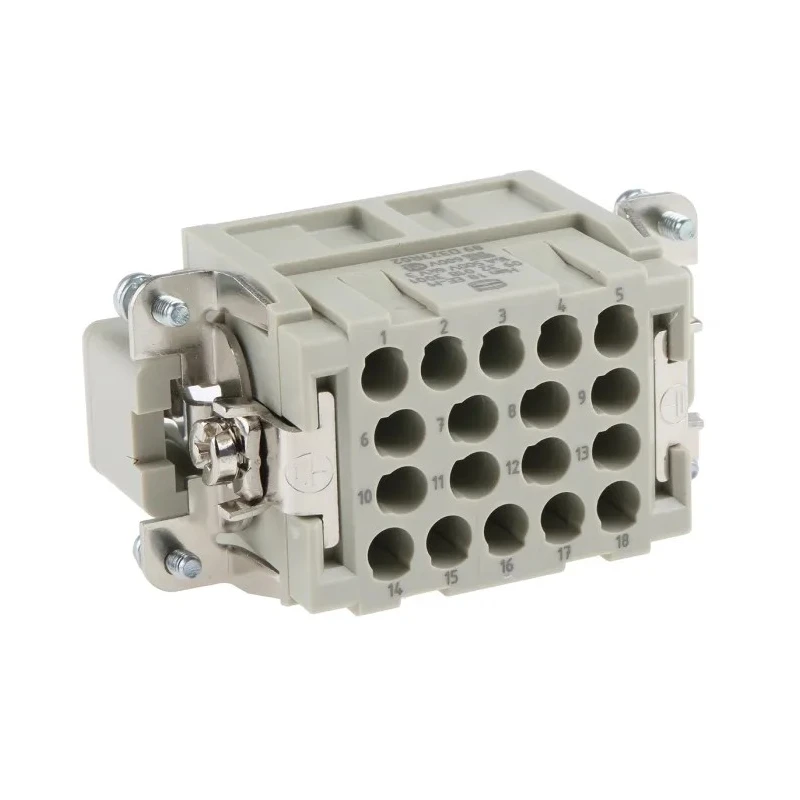

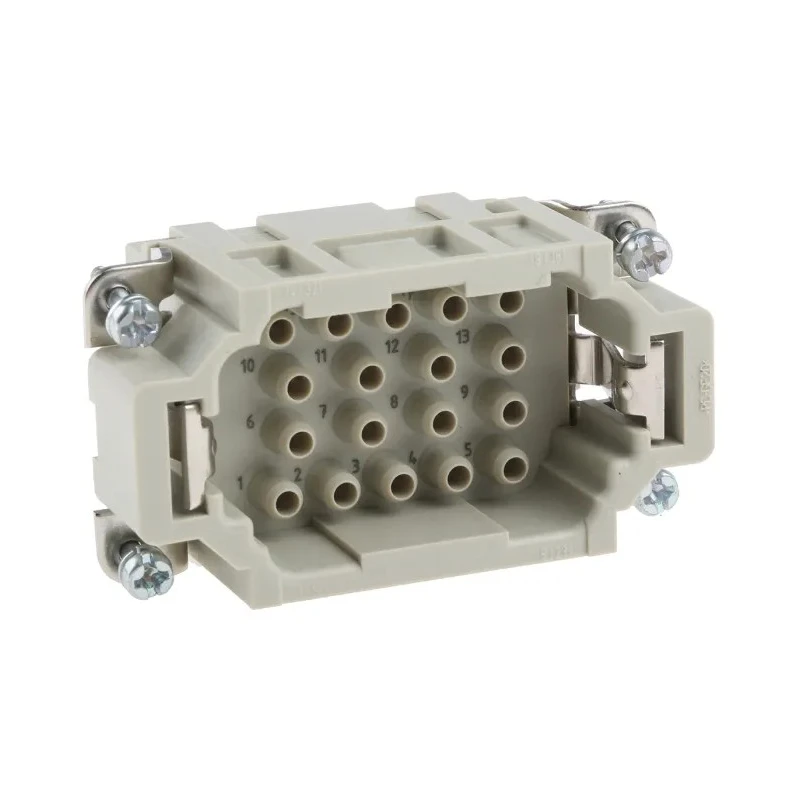

HARTING Heavy Duty Power Connector Insert 16A 500V HAN EE Series Male 18 Contacts 09320183001

Free Delivery in India | Lowest Global Shipping Charges

HARTING Heavy Duty Power Connector Insert 16A 500V HAN EE Series Male 18 Contacts 09320183001

Name: HARTING Heavy Duty Power Connector Insert 16A 500V HAN EE Series Male 18 Contacts 09320183001
Brand: HARTING
SKU: 181111
Price: 39.23 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand HARTING Condition New

Specifications

Country of Origin	Romania
Voltage	500V
Brand	HARTING
Orientation	Straight
Mount Type	Cable
Contact Material	Polycarbonate
Current Rating	16A
Series	Han EE
Thread Size	M3 x 10
Sub Type	Connector Insert
Number of Rows	4
For Use With	Heavy Duty Power Connector
Standards/Approvals	IEC 60664-1
Pole Format	18+E
Number of Contacts	18
Connector Gender	Male
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	4mm²

Key Features

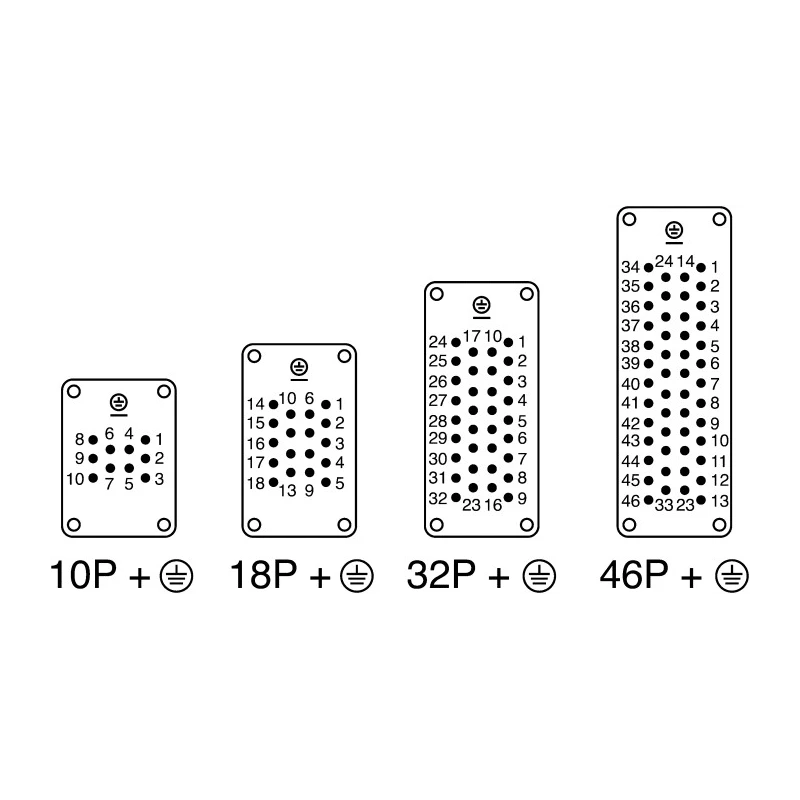

Designed with an 18+E pole layout supporting multiple signal or power lines plus dedicated earth conductor.
Male connector insert from the HAN EE Series with polycarbonate contact material for electrical insulation.
Cable mount type providing secure and rugged in-line cabling integration for industrial environments.
Supports conductor wire sizes from 0.14mm² up to 4mm² to accommodate flexible cable options.
Complies with IEC 60664-1 insulation standards suitable for industrial control and machinery applications.
Orientation is straight with 4 rows and thread size M3 x 10 for mounting security.
Ideal for motor control panel connections, factory automation power distribution, and industrial machinery interfaces.
Manufactured in Romania ensuring quality and reliability.

Product Description

HARTING 09320183001 Heavy Duty Power Connector Insert Male is engineered for robust electrical connections in industrial cable assemblies. Rated for 16A current and 500V voltage, it fits into compatible heavy duty connector housings from the HAN EE Series, providing reliable medium-power distribution in control and machinery environments.

The connector insert features an 18+E pole layout with eighteen contacts plus a dedicated earth conductor, simplifying complex cable routing by accommodating multiple power or signal lines within a single insert. The use of polycarbonate contact material ensures high electrical insulation and durability.

This cable mount connector supports conductor wire sizes ranging from 0.14mm² to 4mm², providing flexibility for both small signal wires and larger power conductors. Suitable for motor control panel connections, factory automation power distribution, and integration with industrial machinery power interfaces, it's designed to meet IEC 60664-1 insulation standards which guarantee proper insulation coordination for industrial voltage applications.

The connector has a straight orientation with 4 rows of contacts and a thread size of M3 x 10 for secure mounting within assemblies. Manufactured in Romania, it meets strict quality controls for industrial use.

Designed with an 18+E pole layout supporting multiple signal or power lines plus dedicated earth conductor. Male connector insert from the HAN EE Series with polycarbonate contact material for electrical insulation. Cable mount type providing secure and rugged in-line cabling integration for industrial environments.

Supports conductor wire sizes from 0.14mm² up to 4mm² to accommodate flexible cable options. Complies with IEC 60664-1 insulation standards suitable for industrial control and machinery applications. Orientation is straight with 4 rows and thread size M3 x 10 for mounting security.

Ideal for motor control panel connections, factory automation power distribution, and industrial machinery interfaces. Manufactured in Romania ensuring quality and reliability.

This heavy duty power connector insert is essential for professional industrial power connection applications involving machinery and automation control systems. Browse more in the Heavy Duty Power Connector Inserts category on EnvMart for high quality industrial connectors.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This connector insert is rated for a current of 16A and a voltage of 500V, making it suitable for medium-power distribution in industrial applications.

It features an 18+E pole layout, which includes eighteen contacts plus a dedicated earth conductor for enhanced electrical routing.

This model supports conductor wire sizes ranging from 0.14mm² to 4mm², accommodating both small signal wires and larger power conductors.

It complies with IEC 60664-1 insulation standards, ensuring proper insulation coordination for industrial voltage applications.

This connector insert is designed for cable mounting, providing secure and rugged integration for in-line cabling in industrial environments.

The connector has a straight orientation and features 4 rows of contacts, allowing for organized electrical connections.

The contacts are made from polycarbonate, which provides good electrical insulation and durability for industrial applications.

The thread size for mounting this connector insert is M3 x 10, ensuring secure attachment within assemblies.

It is suitable for applications such as motor control panel connections, factory automation power distribution, and integration with industrial machinery interfaces.

This connector insert is manufactured in Romania, adhering to strict quality controls for industrial use.

This model is a male connector insert, designed to fit into compatible heavy duty connector housings from the HAN EE Series.

Yes, the 18+E pole layout allows it to support multiple signal or power lines, making it versatile for various electrical routing needs.
