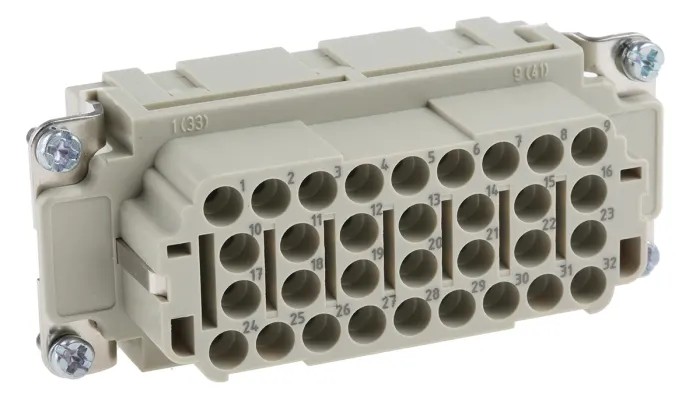

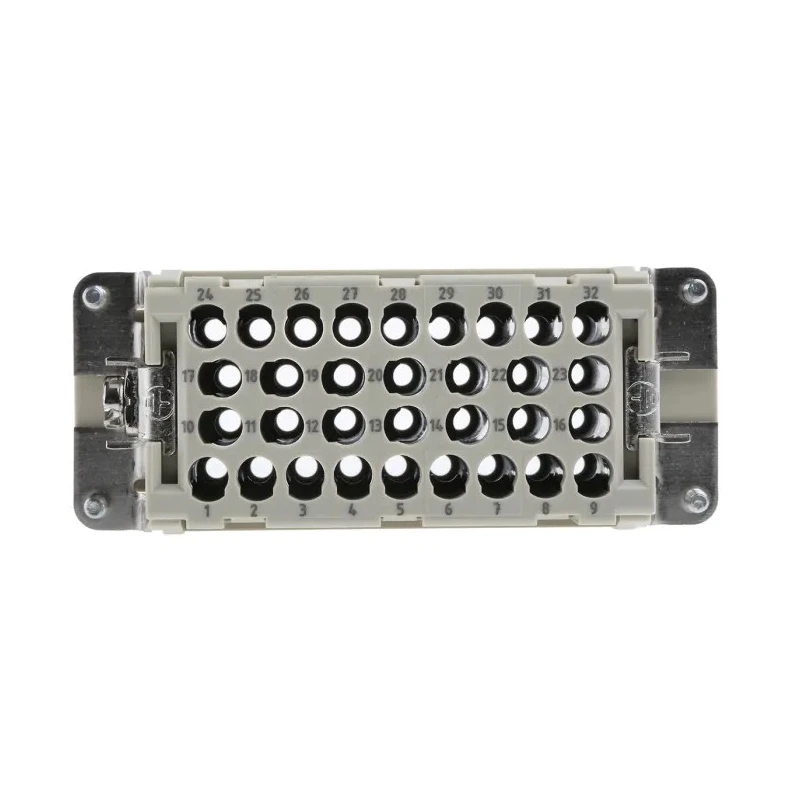

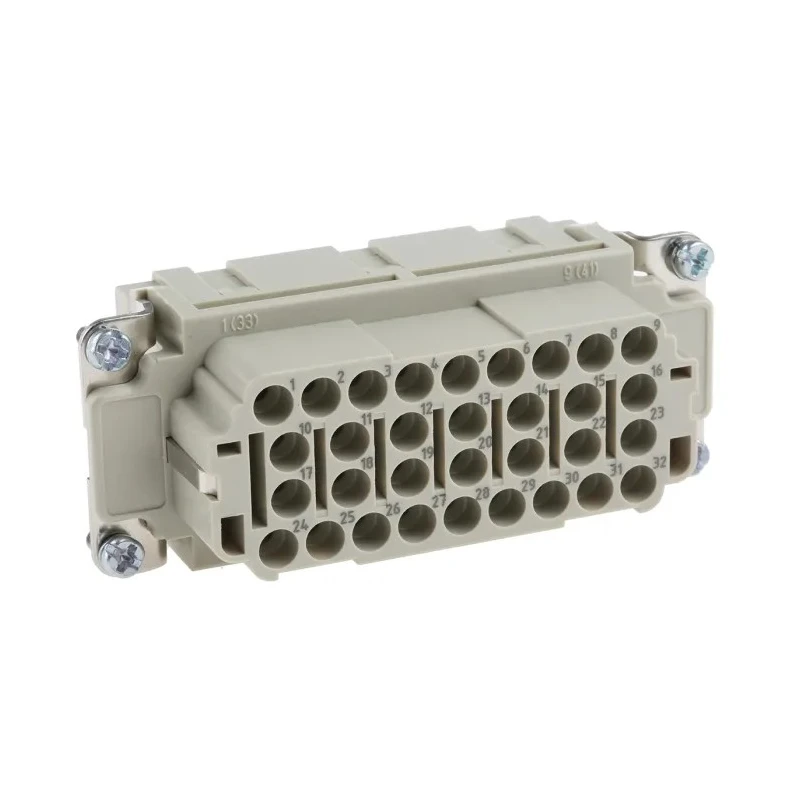

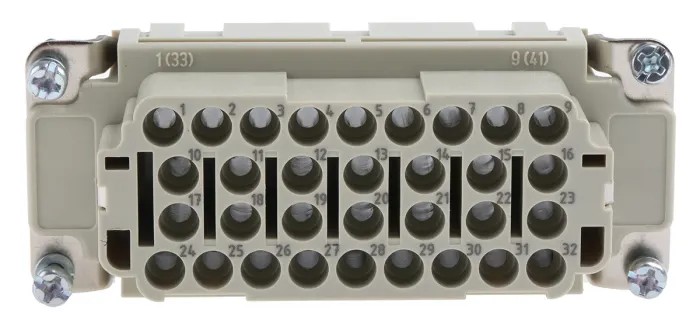

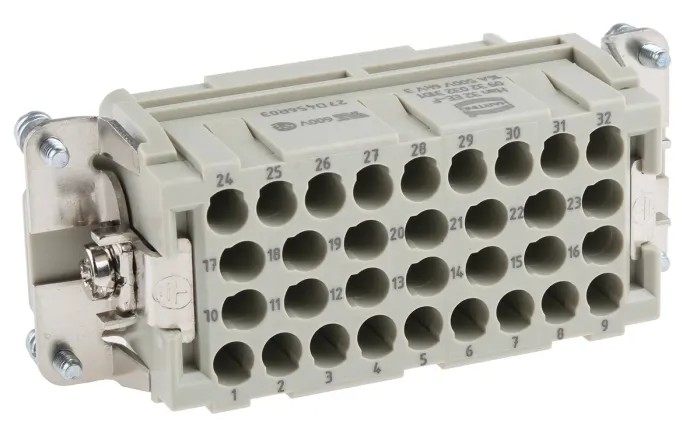

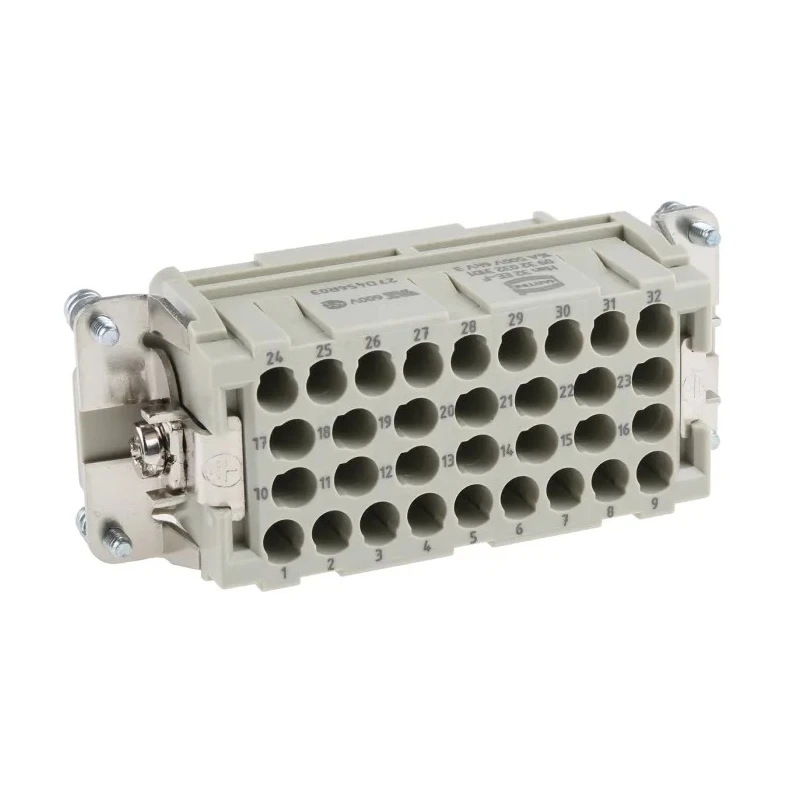

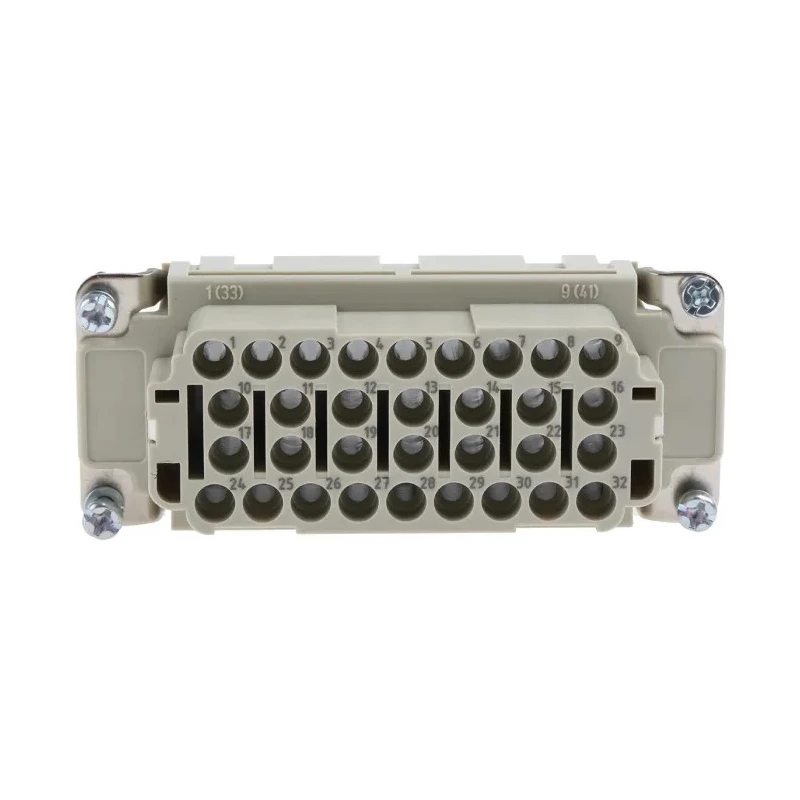

HARTING Heavy Duty Power Connector Insert 16A HAN EE Series Female 32 Contacts 09320323101
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 500V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Polycarbonate |
| Current Rating | 16A |
| Series | Han EE |
| Sub Type | Connector Insert |
| Number of Rows | 4 |

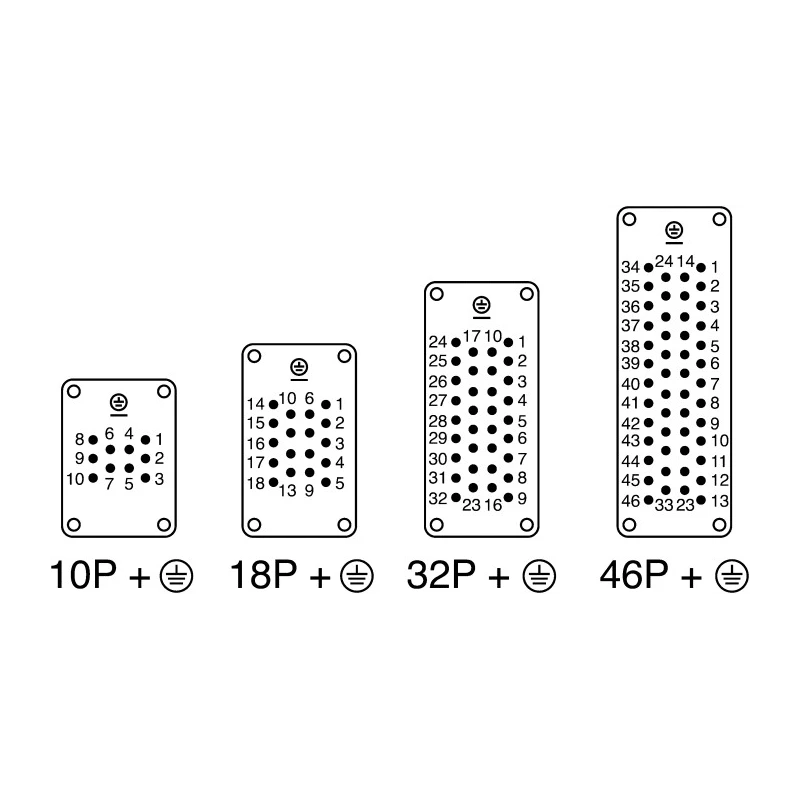

| Poles | 10-46 (crimp connection) |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 32 |
| Number of Contacts | 32 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 4mm² |
Key Features
- Provides a current rating of 16A suitable for robust power connections.
- Features 32 contacts arranged in 4 rows to support multiple wiring needs.
- Constructed with durable polycarbonate contact material for long-lasting performance.
- Designed for use with Heavy Duty Power Connectors within the HAN EE series.
- Compatible with voltage ratings up to 500V ensuring safe electrical operation.
- Mount type is cable for straightforward installation in cable assemblies.
- Offers a straight orientation for efficient cable routing.
- Supports minimum wire size of 0.14 mm² and maximum wire size of 4 mm².
Product Description
HARTING 09320323101 Heavy Duty Power Connector Insert is a robust and reliable connector designed for industrial electrical applications requiring a current capacity of 16A and a voltage rating of 500V. This female connector insert belongs to the HAN EE series and features 32 contacts distributed evenly across 4 rows, ideal for cable mounting in demanding environments.
Constructed with polycarbonate contact material, it guarantees resilient electrical connections while maintaining durability. The connector supports a wide range of wire sizes from 0.14 mm² to 4 mm², ensuring compatibility with various cable specifications.
These inserts are intended to be used with heavy duty power connectors and must be paired with appropriate hood and housing ranges identified within sizes 5 to 8. The connector design promotes safety with polarization features to avoid incorrect mating. It is recommended that connectors are not mated or unmated under electrical load to prevent damage.
The product complies with UL, CSA, and SEV standards ensuring it meets rigorous safety and quality requirements. It is manufactured in Romania, reflecting HARTING's commitment to high production standards and reliability in power connector technology.
16 Amp current rating for reliable power delivery. 32 contact poles arranged in 4 rows for versatile wiring. Polycarbonate contacts ensure durable electrical connections. Suitable for use in industrial, manufacturing, and electrical distribution applications.
Cable mounting type for ease of installation. Voltage rating of up to 500 volts for robust performance. Supports wire sizes from 0.14 mm² to 4 mm². Manufactured in Romania with compliance to UL, CSA, and SEV standards. Part of the HARTING HAN EE series integration system.
Crimp contacts must be ordered separately for customization.
This insert is suitable for industries including manufacturing, machinery, industrial automation, and electrical distribution. For users requiring a dependable heavy duty connector with precise specifications, this model 09320323101 stands as a high-quality solution. Explore further industrial connector options at EnvMart for complementary components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert has a current rating of 16A, making it suitable for robust power connections.
It is designed to operate with a voltage rating of up to 500V, ensuring safe electrical operation.
The insert features a total of 32 contacts arranged in 4 rows, allowing for versatile wiring configurations.
It supports a minimum wire size of 0.14 mm² and a maximum wire size of 4 mm², accommodating various cable specifications.
This model uses a cable mounting type, which facilitates straightforward installation in cable assemblies.
The contacts are constructed from polycarbonate, which provides durable electrical connections.
Yes, the connector design includes polarization features to prevent incorrect mating, enhancing safety during use.
This connector insert is manufactured in Romania, reflecting high production standards.
It is part of the HARTING HAN EE series, designed for heavy duty power connections.
This model is suitable for industrial, manufacturing, and electrical distribution applications.
It uses crimp connections, with crimp contacts that must be ordered separately for customization.
It complies with UL, CSA, and SEV standards, ensuring it meets rigorous safety and quality requirements.
