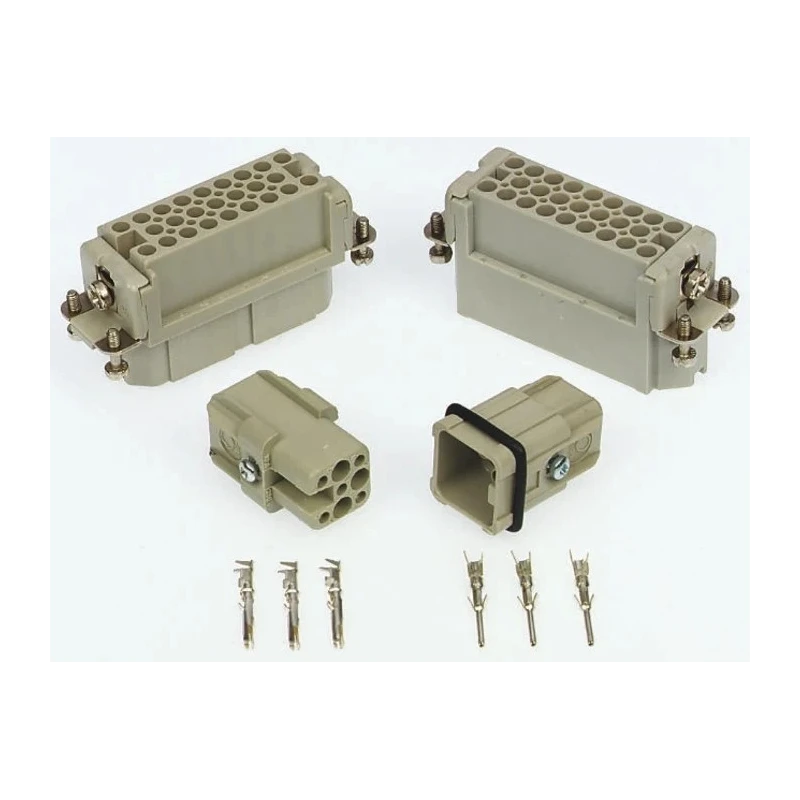

EPIC Heavy Duty Power Connector Insert Female, 10A, 600V, 41 Contacts, H-D Series 11.2660

Free Delivery in India | Lowest Global Shipping Charges

EPIC Heavy Duty Power Connector Insert Female, 10A, 600V, 41 Contacts, H-D Series 11.2660

Name: EPIC Heavy Duty Power Connector Insert Female, 10A, 600V, 41 Contacts, H-D Series 11.2660
Brand: EPIC
SKU: 183172
Price: 28.57 USD
Availability: InStock



Category Heavy Duty Power Connector Insert Brand EPIC Condition New

Specifications

Country of Origin	Germany
Voltage	600V
Brand	EPIC
Orientation	Straight
Model	11.2660
IP Rating	IP54
Mount Type	Cable
Contact Material	Copper Alloy
Current Rating	10A
Series	H-D
Sub Type	Connector Insert
Number of Rows	3
For Use With	Heavy Duty Power Connector
Pole Format	41+E
Contact Plating	Silver
Number of Contacts	41
Connector Gender	Female
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²

Key Features

High density contact loading enables smaller shell sizes without sacrificing connection quality.
Constructed with copper alloy contacts silver plated for improved conductivity and durability.
IP54 rated for protection against dust and water ingress in cable mount installation.
Crimp termination using an 8 point indent crimp tool ensures secure and efficient terminations.
Compatible with HD series plugs and sockets, mates with separate earth connection through metal shells.
Stamped and formed contacts with tooling available for reliable service and maintenance.
Designed for industrial, electronic, and power connector applications requiring robust and durable inserts.
Originating from Germany, built to VDE and international standards including SEV, UL, and CSA approvals.

Product Description

EPIC 11.2660 Heavy Duty Power Connector Insert Female is a robust connector designed for industrial and electronic power applications. Rated at 10A and 600V, it supports up to 41 contacts arranged in a 3-row format enabling high-density connections within a compact shell size.

Manufactured with copper alloy contacts that are silver plated, this insert offers excellent electrical conductivity and high mechanical durability. It is designed for cable mounting with an IP54 ingress protection rating, ensuring resistance against dust and water ingress suitable for harsh industrial environments.

The crimp termination utilizes a quality 8 point indent crimp tool providing simple yet reliable contact termination. The contacts are stamped, formed, and tooling is available to maintain serviceability and secure connections over time. The inserts are compatible with other H-D series plugs and sockets with a dedicated earth connection routed through the metal shell for safety.

This heavy-duty insert supports a minimum wire size of 0.5mm² up to a maximum of 1.5mm², enabling versatile use across various cable gauges. The product conforms to the VDE 0110//72, 0110b, 79, and VDE 0627//86 standards and has approvals from SEV, UL, and CSA, confirming its compliance with international safety and performance regulations.

Ideal for use in industrial automation, electronic controls, power distribution systems, manufacturing, and other demanding environments requiring reliable connector solutions. EPIC's heavy duty connectors offer durable service life and easy maintenance, making them suitable for critical electrical power connections.

High density contact loading for space-saving design. Copper alloy with silver plating for excellent conductivity. Cable mount type with IP54 ingress protection. Crimp termination using 8 point indent crimp tool. Compatible with HD series plugs and sockets.

Separate earth connection through metal shells. Certified to VDE, SEV, UL, and CSA standards. Manufactured in Germany for high quality and reliability. Explore the full range of EPIC Heavy Duty Power Connector Inserts and modules on EnvMart for dependable industrial electrical connectivity solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model is rated for 10A current and 600V voltage, making it suitable for various industrial and electronic applications.

It has an IP54 ingress protection rating, providing resistance against dust and water ingress, suitable for harsh environments.

This connector insert features a total of 41 contacts arranged in a 3-row format, allowing for high-density connections.

The contacts are made from copper alloy and are silver plated, which enhances conductivity and mechanical durability.

It supports a minimum wire size of 0.5mm² and a maximum wire size of 1.5mm², accommodating various cable gauges.

Yes, it is compatible with HD series plugs and sockets, allowing for versatile applications in power connections.

It utilizes crimp termination with an 8 point indent crimp tool, ensuring secure and efficient contact connections.

This connector insert is manufactured in Germany, ensuring adherence to high quality and reliability standards.

It is certified to VDE, SEV, UL, and CSA standards, confirming its compliance with international safety and performance regulations.

It is designed for industrial automation, electronic controls, power distribution systems, and other demanding environments requiring reliable connections.

The orientation of this connector insert is straight, which is typical for many industrial applications.

This model belongs to the H-D series of heavy-duty power connector inserts, known for their robust design.
