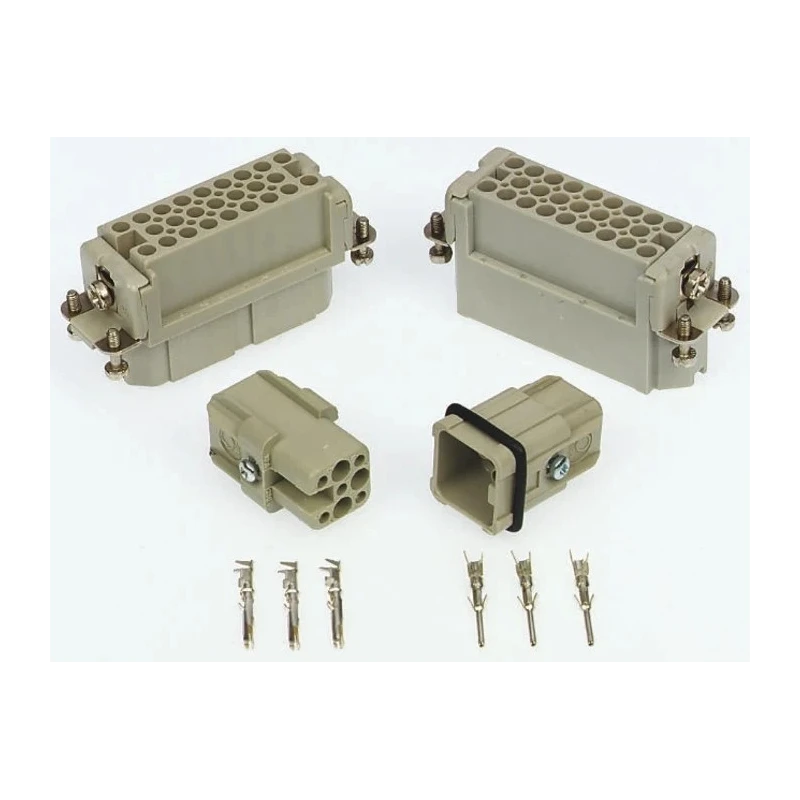

EPIC Heavy Duty Power Connector Insert 10A 250V Female 25 Contacts H-D Series 11.2610

EPIC 11.2610 Heavy Duty Power Connector Insert is a high-quality female connector insert designed for H-D series heavy duty power connectors. Rated at 10A and 250V, it features 25 contacts arranged in a straight orientation, providing a compact and reliable solution for industrial and commercial electrical applications.

This connector insert is constructed with copper alloy contacts plated with silver, ensuring excellent conductivity and corrosion resistance. The product supports a wire size range from 0.5 mm² to 1.5 mm², making it versatile for various cable types. It has an IP54 rating, offering protection against dust ingress and water splashes, suitable for demanding environments.

The H-D series plug and socket inserts provide high-density contact loading to accommodate more power and control connections in smaller shell sizes. Machined and formed contacts offer reliable interconnection, and crimp termination is facilitated by quality 8-point indent crimp tooling. Although assembled connectors are type-tested at 10A 250V a.c., they also include features like separate earth connections integrated through all inserts.

Manufactured in Germany, the connector meets the rigorous standards of VDE 0110//72, 0110b, 79, and VDE 0627//86, with approvals from SEV, UL, and CSA. The connector is suitable for industrial, electrical, and electronic component applications requiring robust power connections and reliable insertion modules.

Designed for heavy duty power connectors with a current rating of 10A. Features 25 contacts with a straight orientation for effective cable mounting. Constructed using copper alloy contacts plated with silver for durability.

Offers an IP54 protection rating suitable for industrial environments. Supports wire sizes from 0.5 mm² to 1.5 mm² for various cable requirements. Compatible with H-D series heavy duty power connectors for interconnection.

Ensures reliable serviceability with machined and formed contact technology. Connector is made in Germany and complies with VDE 0110 and related standards. Explore EnvMart's extensive category for Power Connectors to find compatible and complementary industrial connectors supporting various high-power applications.
