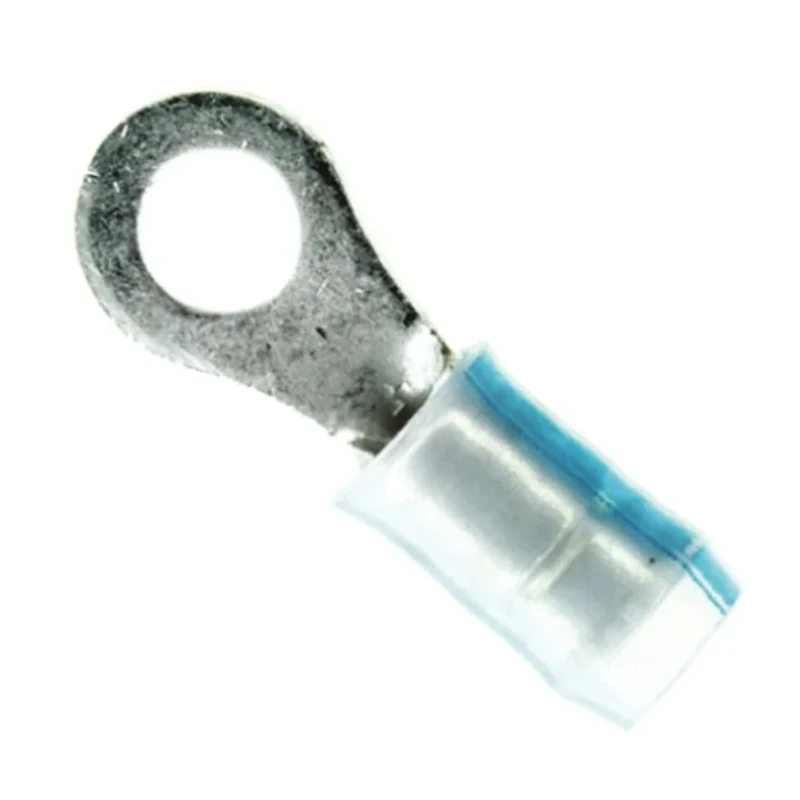

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Polyvinyl Fluoride Insulation 53417-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| THICKNESS | 0.031in |
| Model | 53417-1 |
| Insulation | Insulated |
| Overall Length | 0.844in |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 150°C |
| Insulation Material | Polyvinyl Fluoride |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 0.312in |
| Inner Ring Diameter | 0.171in |
| Stud Size | M4 |
Key Features
- Insulated with Polyvinyl Fluoride (PVF) for enhanced durability.
- Constructed from bright tin-plated copper for excellent conductivity.
- Features precision-formed metal wire barrel with serrations for maximum contact and tensile strength.
- Outer ring diameter is 0.312 inches and inner ring diameter is 0.171 inches.
- Overall length of the terminal is 0.844 inches with thickness of 0.031 inches for stable installation.
- Supports operating temperatures up to 150 degrees Celsius.
- Suitable for use in industrial, automotive, and electrical applications requiring secure wire termination.
- Color-coded natural insulation for easy identification of wire gauge compatibility.
Product Description
TE Connectivity 53417-1 PIDG Insulated Ring Terminal is engineered for high performance in electrical connections, offering an M4 stud size suitable for wire gauges between 16 AWG and 14 AWG. The terminal features a durable Polyvinyl Fluoride (PVF) insulation, providing resistance against environmental factors and mechanical wear. The body is made from high conductivity copper with a bright tin plating ensuring excellent electrical performance and corrosion resistance.
This ring terminal has a precision-formed metal wire barrel containing serrations that deliver maximum contact and tensile strength after crimping, thus providing a strong and reliable connection. The barrel is enclosed within a copper sleeve and completely encased in a PVF color-coded insulation sleeve which aids in quick wire size identification.
Physical dimensions include an outer ring diameter of 0.312 inches, an inner ring diameter of 0.171 inches, and an overall length of 0.844 inches with a thickness of 0.031 inches. It is designed to operate effectively in environments with temperatures reaching up to 150°C.
This PIDG ring terminal is broadly useful across industrial, construction, manufacturing, and electrical maintenance tasks, particularly where secure, vibration-resistant wire terminations are critical such as in automotive wiring harnesses and control panel installations.
Insulated with Polyvinyl Fluoride for robust protection. Copper construction with tin plating for conductivity and corrosion resistance. Precision serrated metal wire barrel ensures secure crimping. Natural color insulation for easy wire gauge identification.
Rated for continuous use in temperatures up to 150°C. Compact dimensions facilitate use in restricted spaces. Provides mechanical stability and electrical integrity under vibrations. Ideal for industrial and automotive electrical connections.
Enhances durability of wire terminations in harsh environments.
Explore the full range of TE Connectivity components and other top-quality wire terminals within the Electronics & Electricals section on EnvMart for reliable industrial applications.
Explore more products in our Wire Terminals & Splices category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes between 16 AWG and 14 AWG, accommodating a minimum wire size of 1 mm² and a maximum wire size of 2.6 mm².
It is rated for continuous use in temperatures up to 150°C, making it suitable for various industrial and automotive applications.
The outer ring diameter is 0.312 inches, the inner ring diameter is 0.171 inches, and the overall length is 0.844 inches with a thickness of 0.031 inches.
The contact material is copper, which is bright tin-plated to enhance conductivity and corrosion resistance.
It features Polyvinyl Fluoride (PVF) insulation, providing enhanced durability and resistance against environmental factors.
The terminal has a precision-formed metal wire barrel with serrations that ensure maximum contact and tensile strength after crimping.
This terminal is suitable for industrial, automotive, and electrical applications requiring secure wire termination, especially in environments with vibrations.
The insulation is color-coded natural, which aids in the quick identification of wire gauge compatibility.
The stud size for this terminal is M4, allowing it to be used with compatible mounting hardware.
The terminal is manufactured in India, ensuring compliance with local manufacturing standards.
The thickness of this terminal is 0.031 inches, which supports stable installation in various applications.
The tin plating on the copper contact enhances conductivity and provides corrosion resistance, which is crucial for maintaining electrical performance.
