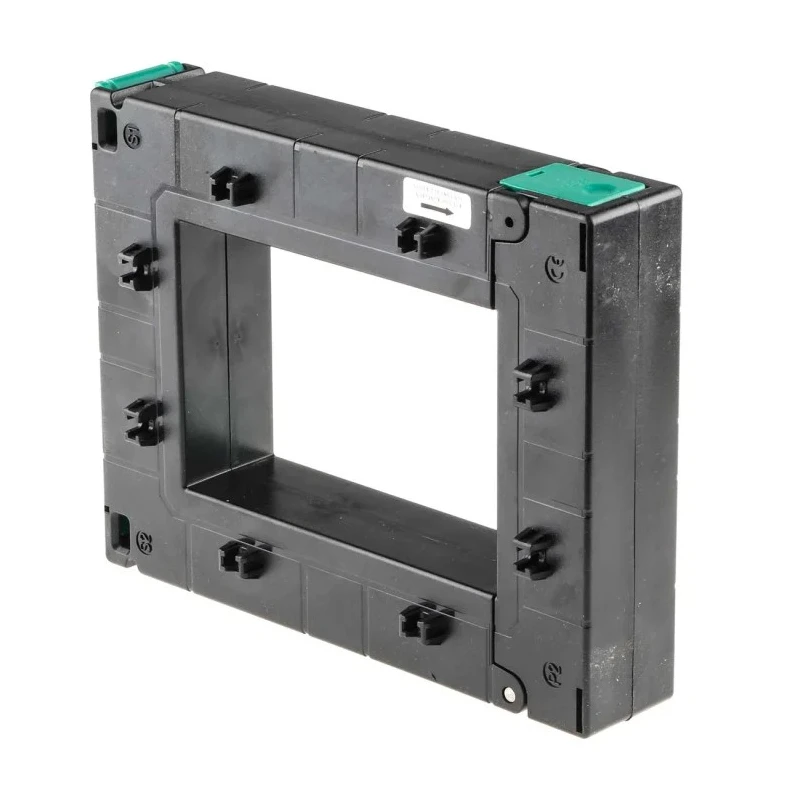

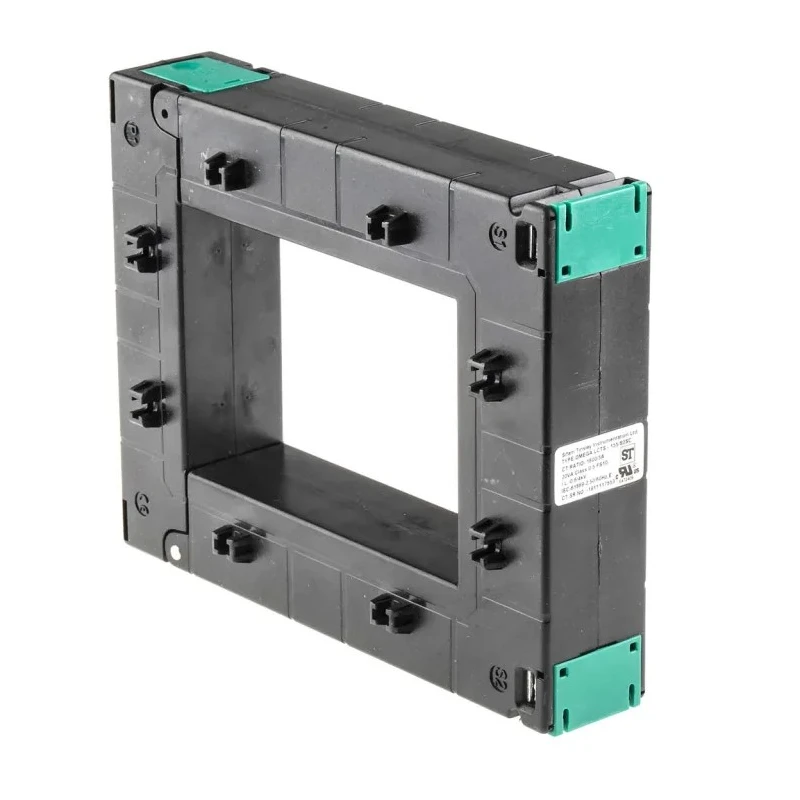

Sifam Tinsley OMEGA 10 Series Surface Mount Split-Core Current Transformer 1600A 5A Secondary 40mm Bore XS03-435145S 000000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Sifam Tinsley |
| Model | XS03-435145S 000000 |
| Mount Type | Surface |
| Series | OMEGA 10 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 20°C |
| Bore Diameter | 40mm |
| Secondary current | 5A |
| Standards/Approvals | UL 94V-O, IEC 61869-1, EN 60044-1 |
| ANSI/ESD S20.20 | 2014 |
| BS EN 61340-5-1 | 2007 |
| Primary Current | 1600A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Current ratio is 1600 | 5 |
Key Features
- The split-core design allows installation without disconnecting the conductor.
- Supports system voltage up to 720V and test voltage of 3kV for 1 minute.
- Operating temperature range from 20°C to 70°C ensures reliability in diverse environments.
- Flame retardant grade enclosure enhances operational safety.
- Suitable for distribution systems, generator sets, control panels, and overload protection.
- Conforms to IEC 61869-1, EN 60044-1, and UL 94V-O standards.
- Operating frequency between 50Hz and 60Hz accommodates standard industrial frequencies.
- Surface mount type simplifies installation and maintenance.
Product Description
Sifam Tinsley XS03-435145S 000000 OMEGA 10 Series Current Transformer is a surface mount split-core measuring device designed to monitor electrical currents up to 1600 amps with a secondary output of 5 amps. Built for industrial, commercial, and electrical automation applications, this transformer supports system voltages up to 720V and test voltages of 3kV for one minute, ensuring robust insulation and safety.
The split-core design enables quick installation without interrupting the conductor, greatly reducing commissioning time. Constructed with a flame retardant enclosure, it ensures safe operation within temperature ranges from 20°C to 70°C. The unit operates effectively in systems with frequencies between 50Hz and 60Hz, catering to standard electrical requirements.
Designed for a variety of applications including distribution systems, generator sets, control panels, and overload protection, this current transformer is compliant with industry standards IEC 61869-1, EN 60044-1, and UL 94V-O. Its precise current ratio of 1600:5 allows for accurate current measurement essential in protection and monitoring circuits.
The split-core design simplifies installation and maintenance. Surface mount type ensures easy and secure fitting on equipment. System voltage rating of up to 720V with a 3kV test voltage specification. Flame retardant enclosure for enhanced safety.
Wide operating temperature range from 20°C to 70°C. Conforms to IEC 61869-1, EN 60044-1, and UL 94V-O standards. Frequency operation between 50Hz and 60Hz suitable for various industrial scenarios. Applications include power distribution, generator monitoring, control panels, and overload protection.
This Sifam Tinsley current transformer is manufactured in India and represents a reliable choice for accurate current sensing in electrical automation and control systems. Explore the extensive range of Current Transformers and automation equipment to find solutions tailored for your industrial and commercial needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a primary current rating of 1600A with a secondary output of 5A.
It operates within a temperature range of 20°C to 70°C.
The bore diameter is 40mm.
It supports system voltages up to 720V and has a test voltage of 3kV for one minute.
It conforms to IEC 61869-1, EN 60044-1, and UL 94V-O standards.
The operating frequency range is between 50Hz and 60Hz.
The split-core design allows for installation without disconnecting the conductor, simplifying the process.
It features a surface mount type, which simplifies installation and maintenance.
It is suitable for distribution systems, generator sets, control panels, and overload protection.
The enclosure has a flame retardant grade of UL 94V-O, enhancing operational safety.
This model is manufactured in India.
The current ratio is 1600:5, allowing for accurate current measurement.
