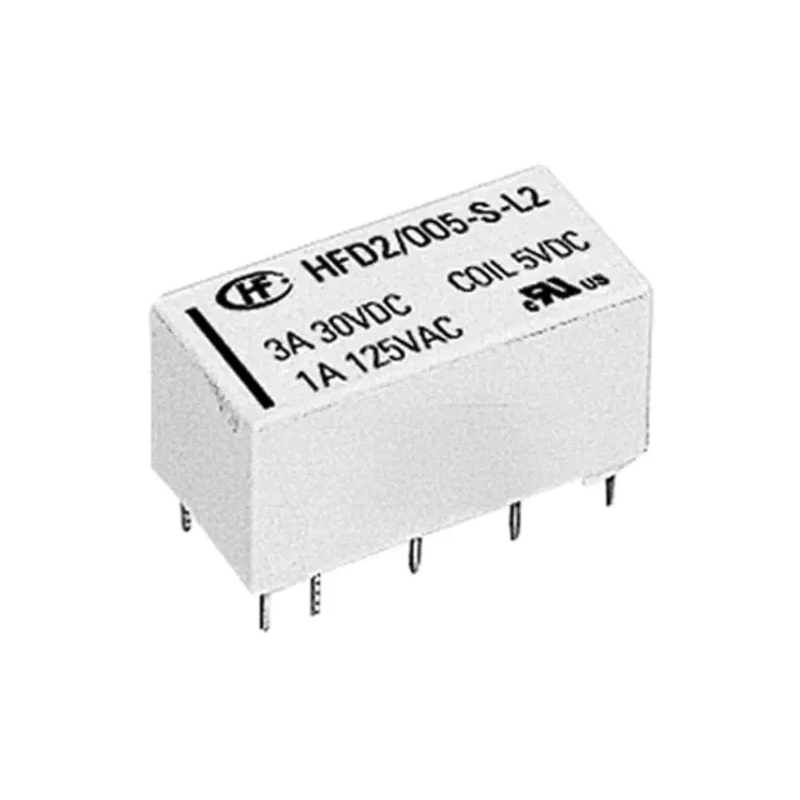

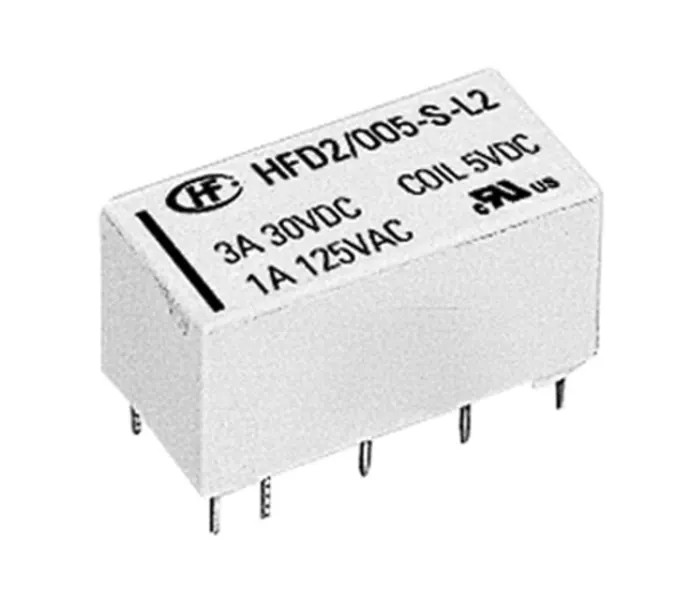

Hongfa Europe GMBH PCB Signal Relay 24V DC Coil 2A DPDT HFD2/024-S-D
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 10.6mm |
| Length | 20.2mm |
| Model | HFD2/024-S-D |
| Width | 10.2mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HFD2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 3800Ω |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 150mW |
Key Features
- Operates with a coil power of 150mW ensuring energy-efficient operation.
- Supports switching AC voltage up to 250V AC and DC voltage up to 220V DC.
- Constructed with gold-plated silver contacts for enhanced conductivity and reliability.
- Compact dimensions with a length of 20.2mm, width of 10.2mm, and height of 10.6mm.
- Designed for PCB mounting with PCB terminals for easy integration.
- Wide operating temperature range from -40°C to 85°C suitable for diverse environments.
- RoHS compliant ensuring adherence to environmental standards.
- Contact resistance is low at 100mΩ, facilitating efficient signal switching.
Product Description
Hongfa Europe GMBH HFD2/024-S-D PCB Signal Relay is a high-performance subminiature electromagnetic relay designed for PCB mounting, actuated by a 24V DC coil. This relay features a double pole double throw (DPDT) contact configuration with a switching current capacity of 2A, suitable for signal controlling applications in industrial, automotive, and automation systems.
With a coil power consumption of only 150mW, it provides energy-efficient operation. The relay's gold-plated silver contacts ensure excellent conductivity and durability over prolonged use. Its compact form factor, measuring 20.2mm in length, 10.2mm in width, and 10.6mm in height, enables easy installation in space-constrained circuit designs.
Operating across a broad temperature spectrum from -40°C to 85°C, this relay is reliable in varied climatic conditions. It supports switching of AC voltages up to 250V AC and DC voltages up to 220V DC, making it versatile for multiple applications. The relay utilizes PCB terminals for secure and standardized mounting on printed circuit boards.
Being RoHS compliant, the HFD2/024-S-D contributes to environmentally responsible manufacturing and use. Its low contact resistance of 100mΩ facilitates smooth and efficient signal switching. The relay’s isolation voltage between coil and contacts is 1.5KV AC, ensuring operational safety and signal integrity.
This product is widely used as a control device across industrial automation, automotive electronics, signal conditioning circuits, and other electronic control systems demanding reliable switching performance.
Operates with low coil power of 150mW. Supports AC voltage up to 250V and DC voltage up to 220V. Compact size and PCB mount type for easy integration. Wide operating temperature range from -40°C to 85°C. Gold plated contacts ensure durability and conductivity.
RoHS compliant for environmental safety. Low contact resistance of 100mΩ ensures efficient operation. Isolation voltage between coil and contact is 1.5KV AC.
Explore more industrial and electrical components like Signal Relays and contactors at EnvMart, where quality and technical precision meet your automation and signal conditioning needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HFD2/024-S-D relay has a switching current capacity of 2A.
This model measures 20.2mm in length, 10.2mm in width, and 10.6mm in height.
The relay operates with a coil voltage of 24V DC.
It is designed for PCB mounting and utilizes PCB terminals for easy integration.
It supports switching AC voltage up to 250V AC and DC voltage up to 220V DC.
The relay features a double pole double throw (DPDT) contact configuration.
The contact resistance is low at 100mΩ, which facilitates efficient signal switching.
It operates within a wide temperature range from -40°C to 85°C.
The contacts are constructed with gold-plated silver for enhanced conductivity and reliability.
The relay operates with a coil power consumption of 150mW, ensuring energy-efficient operation.
Yes, this relay is RoHS compliant, ensuring adherence to environmental standards.
The isolation voltage between the coil and contacts is 1.5KV AC, ensuring operational safety and signal integrity.
