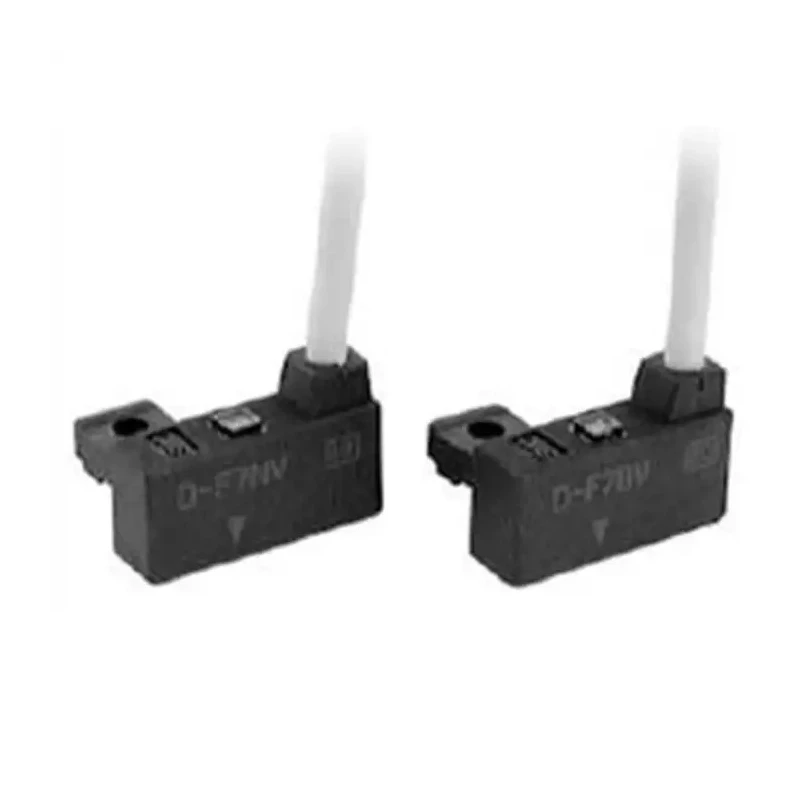

SMC 3-Wire Open End Cable Rail PNP Solid State Pneumatic Cylinder Switch with LED Indicator D-F7PV

Free Delivery in India | Lowest Global Shipping Charges

SMC 3-Wire Open End Cable Rail PNP Solid State Pneumatic Cylinder Switch with LED Indicator D-F7PV



Category Pneumatic Cylinder Switch Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Height	18mm
Model	D-F7PV
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	PNP
Mount Type	Rail
Series	D-F7P
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	10mA
For Use With	F7PV, F7NV, F7BV
Standards/Approvals	RoHS, IEC 529
Electrical Connection Type	3-Wire Open End Cable
Applicable Load	IC Circuit/Relay/PLC

Key Features

The switch is mounted on the F7 series compact cylinder's auto switch groove.
Features a 3-wire open end cable electrical connection with PNP operation type.
Includes an LED indicator to confirm switch status.
Constructed with IP67 protection rating for dust and water resistance.
Operates within a temperature range of -10°C to 60°C.
Supports switching current of 10mA suitable for IC circuit, relay, or PLC loads.
The compact size enables precise positioning, clamping, and ejection applications.
Robust design with compliance to RoHS and IEC 529 standards.

Product Description

SMC D-F7PV is a 3-Wire Open End Cable Rail PNP Solid State Pneumatic Cylinder Switch with an LED indicator, specifically designed for use with F7PV, F7NV, and F7BV pneumatic piston rod cylinders. These cylinders feature pistons enclosed to generate precise linear motion in industrial automation systems.

The compact switch mounts firmly into the groove of the double-acting, single-rod cylinders from the D-F7P series, allowing accurate and reliable detection of piston position. The 3-wire open end cable facilitates straightforward electrical wiring and PNP operation ensures compatibility with modern control equipment.

Rated with an IP67 ingress protection, this switch resists dust and water penetration, making it suitable for harsh industrial environments. The LED indicator provides immediate visual confirmation of the switch state, enhancing troubleshooting and maintenance processes.

With a switching current of 10mA and compatibility with IC circuits, relays, and PLCs, the D-F7PV switch supports a wide range of control applications. It operates reliably within the temperature range from -10°C to 60°C, ensuring functionality across varying industrial climates.

The switch dimensions are compact at 15.5mm width, 18mm height, and 46mm depth, optimizing its use in space-constrained pneumatic systems. The product complies with RoHS and IEC 529 standards, guaranteeing safety and environmental compliance.

Manufactured in Japan, this pneumatic cylinder switch is ideal for industrial automation, manufacturing machinery, material handling, packaging, and pneumatic control systems requiring precise piston position feedback.

The switch is mounted on the F7 series compact cylinder's auto switch groove. Features a 3-wire open end cable electrical connection with PNP operation type. Includes an LED indicator to confirm switch status. Constructed with IP67 protection rating for dust and water resistance.

Operates within a temperature range of -10°C to 60°C. Supports switching current of 10mA suitable for IC circuit, relay, or PLC loads. The compact size enables precise positioning, clamping, and ejection applications. Robust design with compliance to RoHS and IEC 529 standards.
