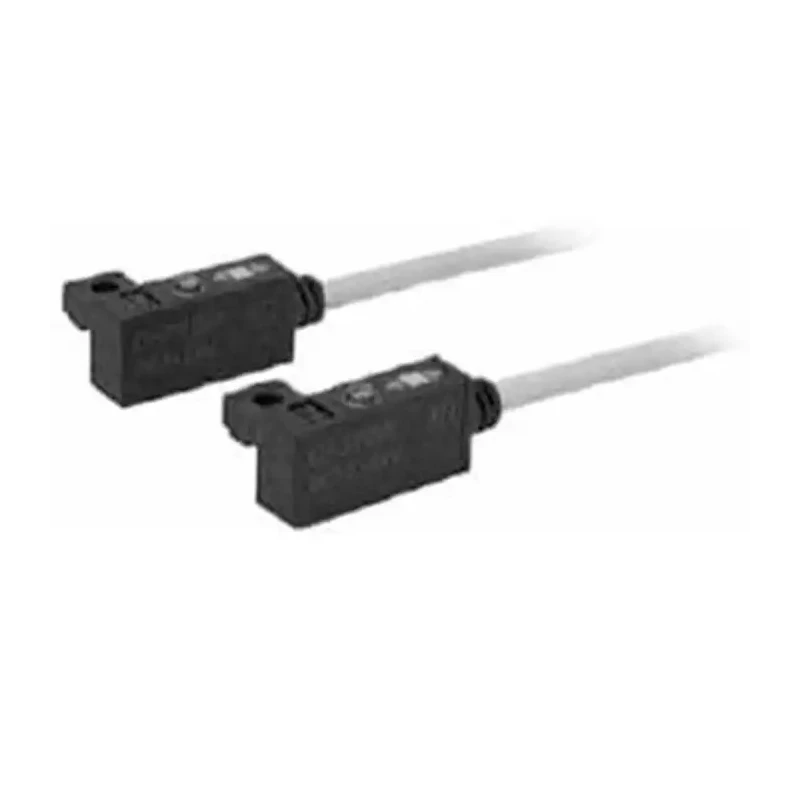

SMC Pneumatic 3-Wire Open End Cable Direct PNP Solid State Switch with LED Indicator D-F7PW

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 3-Wire Open End Cable Direct PNP Solid State Switch with LED Indicator D-F7PW



Category Pneumatic Cylinder Switch Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Height	18mm
Model	D-F7PW
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	PNP
Mount Type	Direct
Series	D-F7P
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	10mA
For Use With	J79W, F79W, F7PW
Standards/Approvals	IEC 529, RoHS
Electrical Connection Type	3-Wire Open End Cable
Applicable Load	IC Circuit/Relay/PLC

Key Features

Designed for direct mounting on SMC F7 series cylinders.
Offers LED indicator for operational status.
Rated IP67 for high resistance to dust and water.
Operates with 10mA switching current suitable for IC circuits, relays, and PLCs.
Applicable temperature ranges from -10°C to 60°C for versatile industrial use.
Compact dimensions of 18mm height, 15.5mm width, and 46mm depth.
Compatible with cylinder models J79W, F79W, and F7PW.
Complies with IEC 529 and RoHS standards for safety and environmental compliance.

Product Description

SMC D-F7PW is a pneumatic solid state switch from the D-F7P series designed for direct mounting on compatible pneumatic piston rod cylinders such as J79W, F79W, and F7PW models. This 3-wire open end cable switch provides PNP operation with an integrated LED indicator for clear operational feedback.

The switch features a compact form factor measuring 18mm in height, 15.5mm in width, and 46mm in depth, making it ideal for installation in tight spaces. It is rated IP67, ensuring excellent protection against dust and water ingress, suitable for demanding industrial environments.

The D-F7PW switch supports a switching current of 10mA and can be used with IC circuits, relays, or PLCs, offering precise and reliable control over pneumatic cylinder movement. Its operating temperature range from -10°C to 60°C accommodates various industrial climate conditions.

Constructed in compliance with IEC 529 and RoHS directives, this pneumatic switch adheres to international safety and environmental standards. It is manufactured in Japan, ensuring high quality and durability.

Ideal for industrial automation applications including manufacturing lines, fluid power control, and pneumatic system monitoring, the D-F7PW enhances equipment reliability and operational safety.

Designed for direct mounting on SMC F7 series cylinders. Offers LED indicator for operational status. Rated IP67 for dust and water protection. 10mA switching current suitable for multiple load types. Operating temperature range from -10°C to 60°C.

Compact dimensions enable installation in restricted spaces. Compatibility with multiple cylinder models. Complies with IEC 529 and RoHS standards. Discover more pneumatic sensors and switches in the Industrial Tools & Equipment category at EnvMart for efficient pneumatic system solutions.
