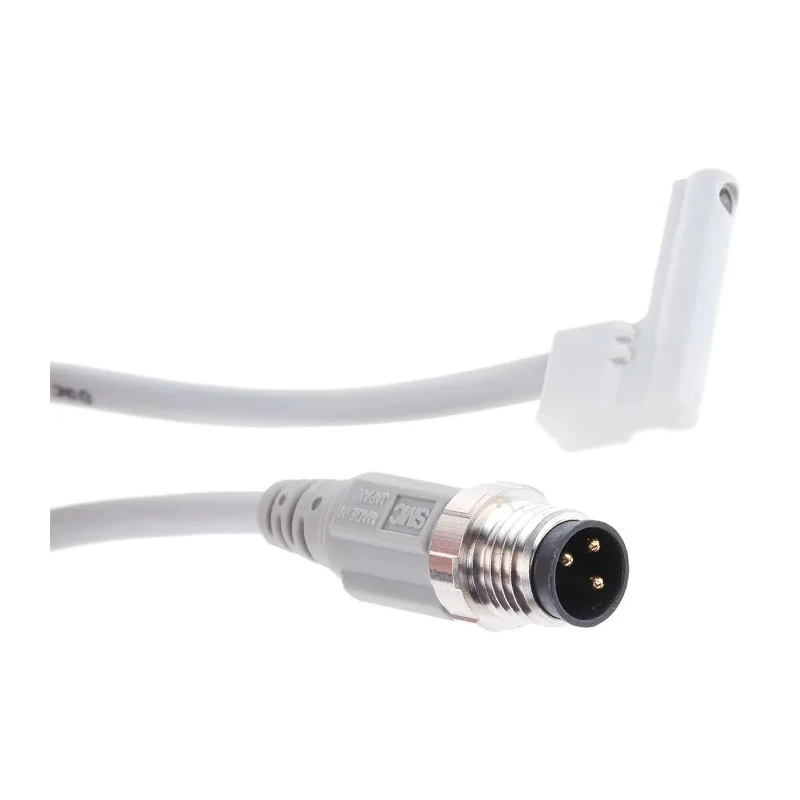

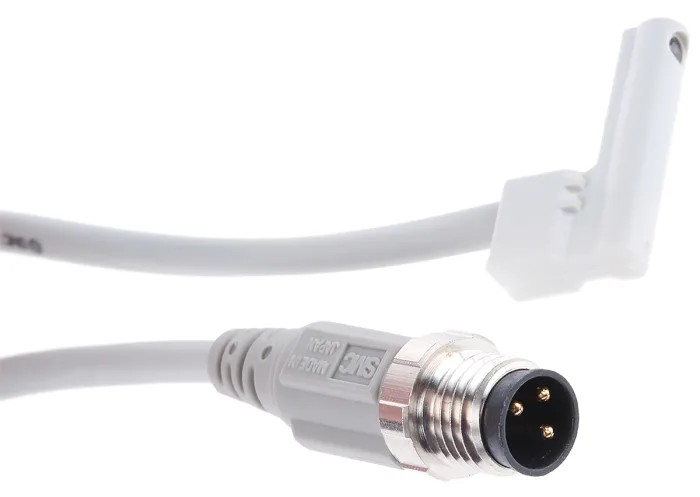

SMC 3 Pin M8 Direct PNP Solid State Pneumatic Switch D-M9PVL 0.8V LED Indicator

Free Delivery in India | Lowest Global Shipping Charges

SMC 3 Pin M8 Direct PNP Solid State Pneumatic Switch D-M9PVL 0.8V LED Indicator



Category Pneumatic Cylinder Switch Brand SMC Condition New

Specifications

Country of Origin	France
Voltage	0.8V
Brand	SMC
Height	18mm
Model	D-M9PVL
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	PNP
Mount Type	Direct
Series	D-M9
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	40mA
Standards/Approvals	RoHS, IEC 529
Electrical Connection Type	3 Pin M8
Applicable Load	IC Circuit/Relay/PLC

Key Features

Operates at a voltage of 0.8V with a visible LED indicator for status monitoring.
Mounts directly with a 3 Pin M8 electrical connection for easy integration.
Features IP67 protection rating for dust-tight and waterproof performance.
Suitable for switching currents up to 40mA for controlling relays and PLC circuits.
Designed for operating temperatures ranging from -10°C to 60°C for versatile industrial use.
Compact dimensions with 46mm depth, 18mm height, and 15.5mm width fit cylinder grooves.
Complies with RoHS and IEC 529 standards to ensure safe operation and environmental compliance.
Includes an extra-flexible 3m cable without an M8 connector, suitable for various pneumatic cylinders.

Product Description

SMC D-M9PVL is a 3 Pin M8 Direct PNP Solid State Pneumatic Switch featuring a 0.8V LED indicator designed for industrial environments requiring reliable cylinder sensing. This solid state auto switch integrates directly onto cylinder grooves and is compatible with a wide range of pneumatic cylinders including C55 and MY1 series.

The switch operates at a voltage of 0.8V and provides a visible LED indicator to display operational status, aiding quick diagnostics on the factory floor.

Constructed with IP67 rated protection, it ensures dust-tight and water-resistant performance, making it suitable for demanding environments such as manufacturing, automation, and process control.

Provides switching current capacity of 40mA capable of driving IC circuits, relays, and PLC inputs. Operating temperature spans from -10°C to +60°C, allowing usage in diverse climate conditions. Compact size with measurements of 46mm depth, 18mm height, and 15.5mm width facilitates seamless installation into confined spaces.

Certified to RoHS and IEC 529 standards, aligning with international safety and environmental regulations. Equipped with an extra-flexible 3m cable offering installation versatility without an M8 connector, which may be added as needed.

The SMC D-M9PVL pneumatic switch supports industrial automation workflows, pneumatic sensing, and control applications in sectors such as manufacturing, material handling, packaging, and laboratory automation.

This product is made in France and carries the quality assurance standards expected from SMC components used in hydraulic and pneumatic tool systems. Browse the Industrial Tools & Equipment category on EnvMart for more pneumatic switches, sensors, and automation components from leading manufacturers.
