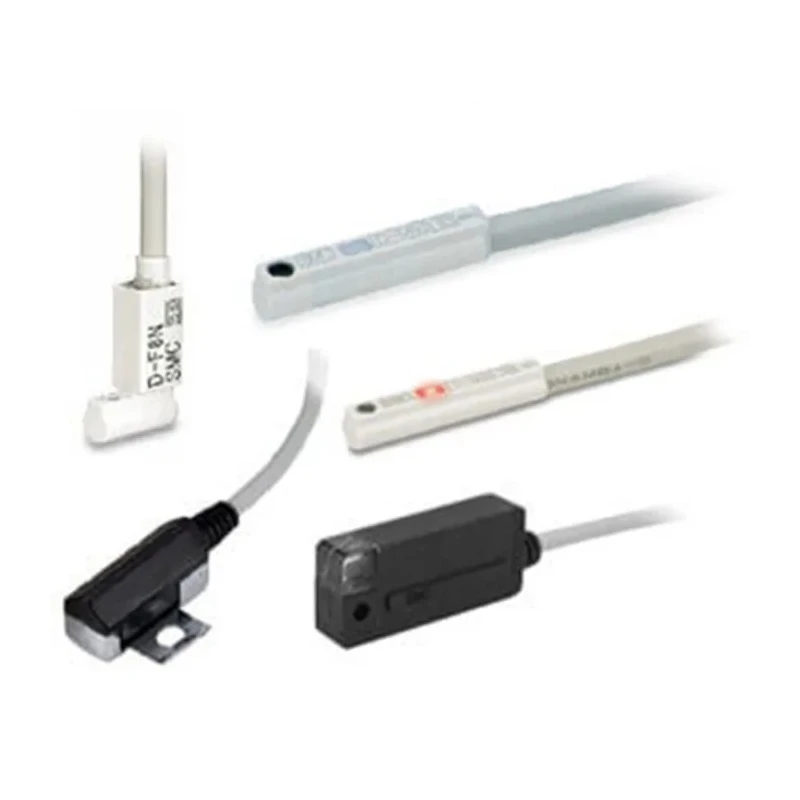

SMC Pneumatic 3-Wire Open End Cable Direct PNP Solid State Switch LED Indicator IP67 D-M9PWVSAPC

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic 3-Wire Open End Cable Direct PNP Solid State Switch LED Indicator IP67 D-M9PWVSAPC



Category Pneumatic Cylinder Switch Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Height	18mm
Model	D-M9PWVSAPC
Depth	46mm
IP Rating	IP67
Width	15.5mm
Operation Type	PNP
Mount Type	Direct
Series	D-M9
Maximum Operating Temperature	60°C
Sub Type	Solid State Switch
Minimum Operating Temperature	-10°C
Switching Current	10mA
For Use With	MHF2, MHS, MHC2, MHT2, MHZ2, MDHR2, NHK2, MGT
Standards/Approvals	IEC 529, RoHS
Electrical Connection Type	3-Wire Open End Cable
Applicable Load	IC Circuit/Relay/PLC

Key Features

Equipped with a 3-wire open end cable connection suitable for direct mounting.
Operates on PNP output type for reliable switching applications.
Features an LED indicator for easy operation status monitoring.
Constructed with IP67 rating ensuring dust-tight and water immersion protection.
Compatible with models including MHF2, MHS, MHC2, MHT2, MHZ2, MDHR2, NHK2, and MGT pneumatic cylinders.
Designed for switching currents up to 10mA, suitable for IC circuits, relays, and PLC loads.
Operates reliably within temperatures ranging from -10°C to 60°C.
Compact dimensions with width 15.5mm, height 18mm, and depth 46mm optimize space utilization in installations.

Product Description

SMC D-M9PWVSAPC pneumatic solid state switch offers reliable and efficient switching for industrial pneumatic systems. This model features a 3-wire open end cable connection with direct mount design, providing flexibility and simplified wiring for automation.

The PNP operation type switch integrates an LED indicator for clear status display during operation, allowing quick diagnostics and monitoring. Rated at IP67, it withstands dust ingress and immersion in water, making it suitable for harsh industrial and manufacturing environments.

This switch is compatible with various SMC pneumatic cylinders such as MHF2, MHS, MHC2, and MHT2, among others. It supports switching currents up to 10mA, applicable to IC circuits, relays, or PLC inputs, facilitating seamless integration into control systems.

Designed for operational temperature ranges from -10°C to 60°C, it ensures stable performance across wide environmental conditions commonly found in manufacturing, automation, and fluid power applications.

The compact form factor with dimensions of 15.5mm width, 18mm height, and 46mm depth allows installation in tight spaces without compromising functionality. Compliance with IEC 529 and RoHS ensures this switch meets stringent industrial safety and environmental regulations.

3-wire open end cable electrical connection type. Direct mount type designed for easy installation. PNP operation type providing positive switching output. LED indicator for operational status display. IP67 rated for waterproof and dustproof protection.

Switching current: 10mA suitable for IC circuits and PLCs. Operating temperature range: -10°C to 60°C. Dimensions: Width 15.5mm, Height 18mm, Depth 46mm. Certified to IEC 529 and RoHS standards ensuring quality and safety.

This pneumatic switch is ideal for industrial pneumatic control and automation systems, laboratory equipment, manufacturing process controls, and fluid power applications requiring reliable sensor switching. It supports optimized wiring and hassle-free installation with standard cable lengths available.
