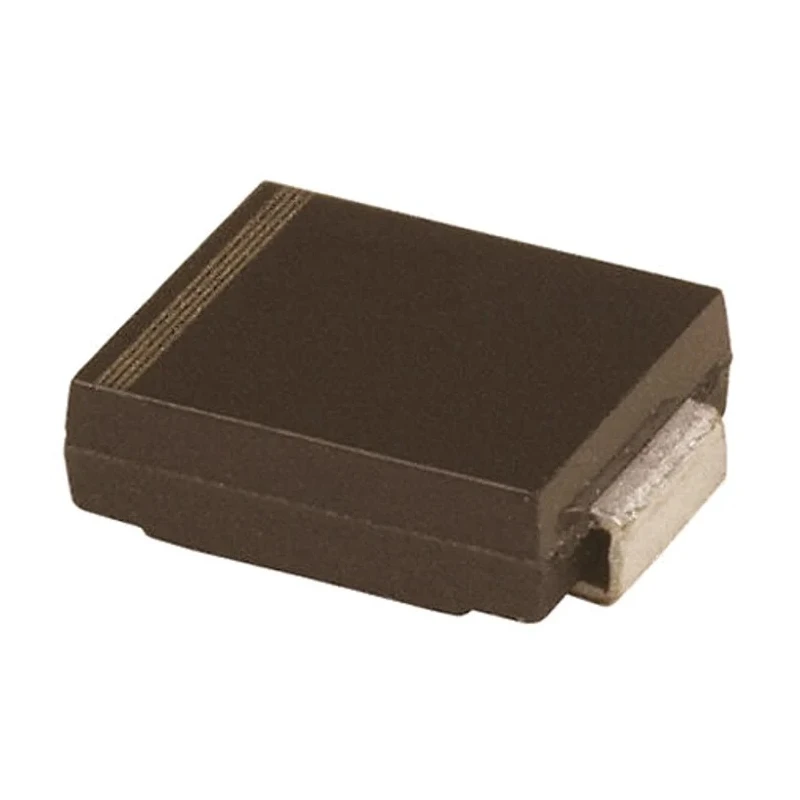

DiodesZetex Uni-Directional TVS Diode 1.5 kW 2-Pin SMC Package SMCJ58A-13-F
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Height | 2.3mm |
| Length | 7.11mm |
| Model | SMCJ58A-13-F |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | SMCJ |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 93.6V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 64.4V |
| Maximum Reverse Stand-off Voltage Vwm | 58V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 16A |
| Maximum Reverse Leakage Current | 5μA |
Key Features
- This diode has a single element configuration ensuring reliable transient voltage protection.
- Minimum breakdown voltage is rated at 64.4 volts for stable operation.
- The maximum reverse standoff voltage of 58 volts suits surface mount applications.
- Peak pulse current capability is 16 amps, supporting high surge conditions.
- Clamping voltage is 93.6 volts to limit transient spikes effectively.
- Operating temperature range spans from -55°C to 150°C for robust performance.
- Maximum reverse leakage current is 5 microamperes, minimizing power loss.
- The package dimension is compact with length 7.11 mm, width 6.22 mm, and height 2.3 mm.
Product Description
DiodesZetex SMCJ58A-13-F is a uni-directional transient voltage suppressor diode designed for effective surge voltage protection in electronic circuits. This device offers a peak pulse power dissipation of 1.5 kW and is housed in a compact 2-pin SMC surface mount package, making it suitable for high-density PCB designs.
The diode configuration is single element, ensuring precise and reliable transient voltage suppression. It features a minimum breakdown voltage of 64.4 volts and a maximum reverse standoff voltage of 58 volts, optimized for protecting sensitive electronics from voltage spikes above these thresholds.
With a clamping voltage of 93.6 volts and a peak pulse current rating of 16 amps, the SMCJ58A-13-F effectively clamps and dissipates transient energy to prevent damage to downstream components. Its maximum reverse leakage current is limited to 5 microamperes, reducing energy losses during normal operation.
The diode operates across a wide temperature range from -55°C to 150°C, ensuring stability in harsh industrial and commercial environments. Its physical dimensions of 7.11 mm length, 6.22 mm width, and 2.3 mm height make it suitable for compact assemblies requiring surface mount components.
This TVS diode is ideal for use in electronic equipment for transient voltage protection in industrial, communication, and commercial power supply systems. It comes with no additional ESD protection or automotive compliance certifications, intended mainly for general-purpose electronic circuit protection.
This device is surface mount mounted for efficient installation on printed circuit boards. It does not hold any listed standards or approvals but meets the SMCJ series product category characteristics.
Environmentally robust and compact, the DiodesZetex SMCJ58A-13-F offers reliable transient voltage suppression. Browse EnvMart's semiconductor and TVS Diode offerings for comprehensive solutions to your circuit protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SMCJ58A-13-F has a peak pulse power dissipation of 1.5 kW, making it suitable for handling high surge conditions.
The maximum reverse standoff voltage for this model is 58 volts, which is designed to protect sensitive electronics from overvoltage conditions.
The clamping voltage of the SMCJ58A-13-F is 93.6 volts, which helps limit transient voltage spikes effectively.
This diode operates within a temperature range of -55°C to 150°C, ensuring stability in various environments.
The maximum peak pulse current rating for this model is 16 amps, allowing it to handle significant surge currents.
The dimensions of this diode are 7.11 mm in length, 6.22 mm in width, and 2.3 mm in height, making it compact for surface mount applications.
This model features a single element configuration, which ensures reliable transient voltage suppression.
The maximum reverse leakage current for the SMCJ58A-13-F is limited to 5 microamperes, minimizing energy loss during operation.
This diode is designed for surface mounting, making it suitable for high-density PCB designs.
The minimum breakdown voltage of the SMCJ58A-13-F is rated at 64.4 volts, providing reliable operation under specified conditions.
This TVS diode is ideal for use in electronic equipment for transient voltage protection in industrial, communication, and commercial power supply systems.
The SMCJ58A-13-F is manufactured in India.
