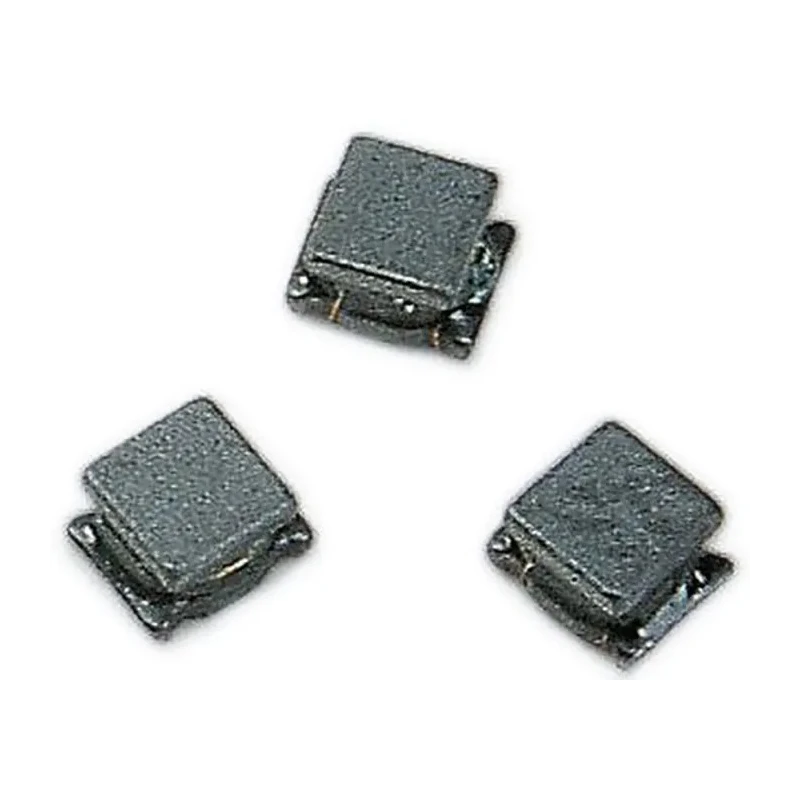

Murata 47 μH ±5% Shielded Wirewound Surface Mount Inductor with Ferrite Core 3225 Package 100 mA Idc LQH32MN470J23L

Murata LQH32MN470J23L is a shielded wirewound Surface Mount Inductor featuring a ferrite core with an inductance of 47 μH ±5% tolerance and a maximum DC current of 100 mA. This inductor is housed in a subminiature 3225 package with dimensions 3.2mm (length) x 2.5mm (depth) x 2mm (height), designed for efficient space utilization in modern electronics. Its shielded construction minimizes electromagnetic interference, enhancing circuit performance.

The ferrite core provides excellent magnetic characteristics, supporting a high-quality factor of at least 40 and a maximum self-resonant frequency of 11 MHz, making it suitable for various signal frequencies in electronic applications. This inductor operates reliably over a wide thermal range from -40°C to 85°C, allowing deployment in demanding industrial and commercial environments.

The component features a surface mount termination style for straightforward PCB mounting, complying with RoHS environmental standards. Its low DC resistance of 4.3Ω ensures minimal power loss, contributing to energy efficiency.

Murata 1210 LQH32MN series wire wound inductors are ideal for improving circuit performance in video equipment, communications, audio devices, and mobile telephones. Their subminiature size and superior shielding characteristics make them perfect for compact and high-performance electronic circuits across industrial, commercial, and consumer electronics sectors.

Subminiature shielded wirewound construction reduces electromagnetic interference. Ferrite core provides stable inductance and high-quality factor for signal integrity. RoHS compliant ensuring environmental compliance. Wide operating temperature range from -40°C to 85°C for robust performance.

Compact 3225 size supports space-saving PCB design requirements. Low DC resistance minimizing power loss and heat generation. Suitable for video, communications, audio equipment, and mobile device applications.

This product is designed to meet the needs of electronics manufacturers in industrial, commercial, and consumer domains. It integrates seamlessly into various surface mount technology (SMT) assemblies and contributes to the enhancement of electronic circuit reliability and efficiency. Explore more electronic components from Murata and related categories at EnvMart.
