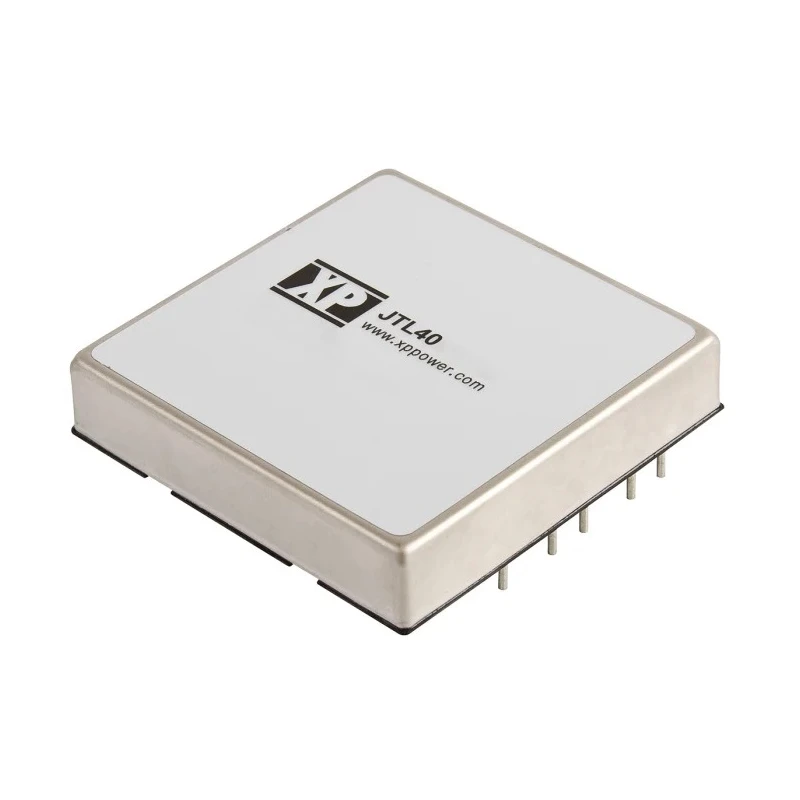

XP Power Isolated DC/DC Converter 12V DC Output 3.35A 9V to 36V Input 40W Through Hole DIP Package JTL4024S12
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JTL DC/DC Converter, 12V dc/ 3 |
| Brand | XP Power |
| Efficiency | 90% |
| Length | 50.8mm |
| Model | JTL4024S12 |
| Depth | 10.2mm |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | JTL |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 150000h |
| Number of outputs | 1 |
| Maximum Output Power | 40W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 3.35A |
| Output Voltage Adjustment Range | 9/36 V |
| Isolation Voltage | 1.6kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- Maximum output power of 40W with efficiency up to 90%.
- Provides 1600 VDC isolation to ensure safe operation in industrial environments.
- Operating temperature range from -40°C to +85°C for reliable performance.
- Compact footprint with dimensions 50.8mm length, 50.8mm width, and 10.2mm depth.
- Designed with 8 pins for through hole mounting compatibility.
- Mean time between failures (MTBF) of 150,000 hours indicating high reliability.
- Industry standard DIP package suitable for PCB integration.
- Remote on/off control feature for flexible power management.
Product Description
XP Power JTL4024S12 is a high-reliability isolated DC/DC converter designed for demanding industrial and electronic applications. It delivers a stable 12V DC output at a maximum current of 3.35A, with input voltage capability ranging between 9V and 36V DC, featuring a wide 4:1 input ratio.
This converter achieves up to 90% efficiency and provides 1600 VDC isolation, making it suitable for sensitive electronic systems requiring safe voltage transformation and noise immunity. Its through hole DIP package with 8 pins simplifies mounting on printed circuit boards, maintaining a compact form factor of 50.8mm by 50.8mm by 10.2mm.
Engineered for harsh environments, the converter operates reliably within a temperature range from -40°C to 85°C. The product includes remote on/off functionality to support advanced system power management. With a high MTBF of 150,000 hours, it ensures consistent long-term performance.
Typical use cases include industrial power supply regulation, automation equipment, telecommunications infrastructure, and embedded systems requiring isolated DC power conversion. Offers a wide 4:1 input voltage range from 9V to 36V DC.
Maximum output power of 40W with efficiency up to 90%. Provides 1600 VDC isolation for safety and noise reduction. Operating temperature range from -40°C to +85°C, suitable for harsh conditions. Compact DIP through hole package measuring 50.8mm x 50.8mm x 10.2mm.
Remote on/off control for flexible operation.
Manufactured in Taiwan, Province Of China, the JTL4024S12 model exemplifies quality and durability in power supply components. Explore our Electronics & Electricals category for further DC/DC Converter options and power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40W.
It has an input voltage capability ranging from 9V to 36V DC, featuring a wide 4:1 input ratio.
This unit achieves up to 90% efficiency.
The dimensions are 50.8mm in length, 50.8mm in width, and 10.2mm in depth.
It provides 1600 VDC isolation, ensuring safe operation in sensitive electronic systems.
The operating temperature range is from -40°C to 85°C.
This converter has one output with a voltage of 12V DC and a maximum current of 3.35A.
It is designed for through hole mounting with 8 pins.
The MTBF is 150,000 hours, indicating high reliability.
Yes, it includes a remote on/off control feature for flexible power management.
It is manufactured in Taiwan, Province of China.
Typical use cases include industrial power supply regulation, automation equipment, telecommunications infrastructure, and embedded systems.
