Recom 1W SIP Through Hole Dual Output DC/DC Converter 15V dc / -15V dc, 33 mA, 12V dc Input, 10.8V dc Input RB-1215D

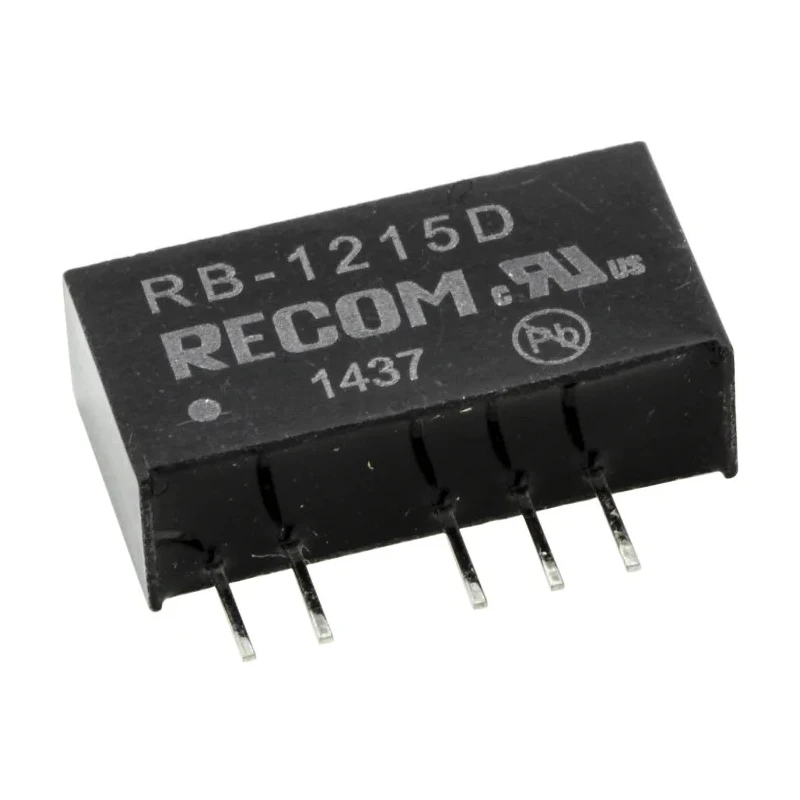

Recom RB-1215D is a 1 Watt single in-line package (SIP) DC/DC converter designed for dual output voltage applications requiring 15V and -15V DC outputs at 33 mA current capacity. This converter operates over an input voltage range of 10.8 V to 12 V DC, making it suitable for low voltage power supply designs.

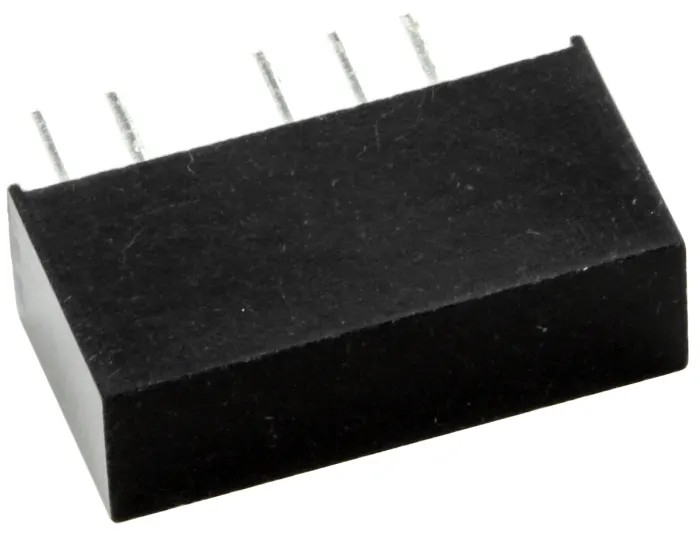

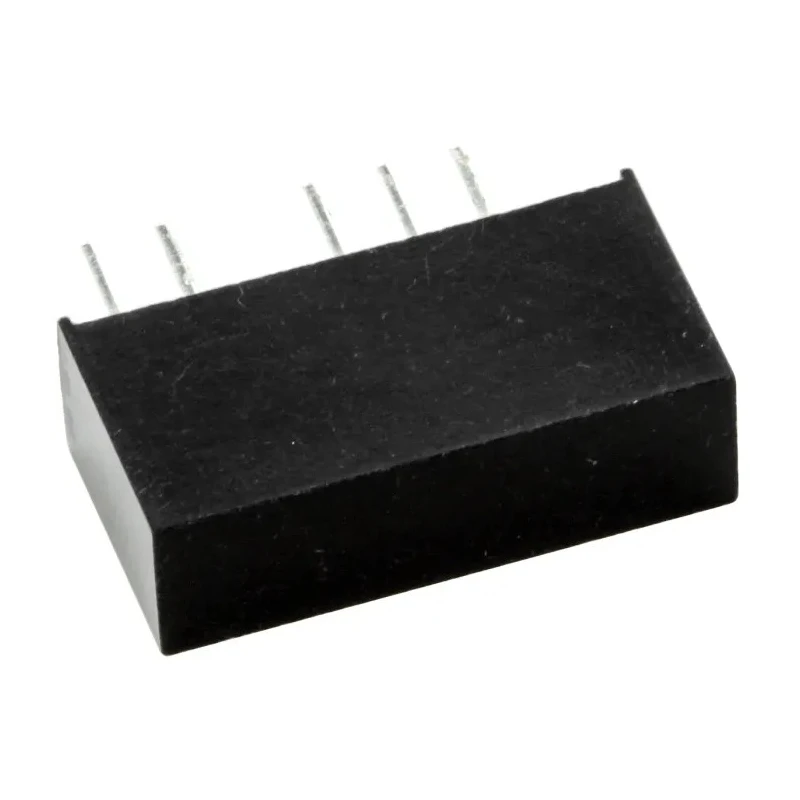

The product features a through-hole mount design with 7 pins and a compact SIP7 package footprint standardized for ease of PCB mounting. It delivers up to 1 Watt of output power efficiently, with a typical efficiency rating of 82%.

This converter provides 500 V AC isolation voltage and meets RoHS and UR standards, ensuring safety and compliance. Its operating temperature range from -40 °C to 85 °C enables reliable performance in industrial, electronic, and control system environments where temperature fluctuations are common.

With a Mean Time Between Failures (MTBF) of 151,000 hours, the RB-1215D is engineered for dependable long-term service life. It incorporates a UL94V-0 rated package material, ensuring fire-retardant qualities in compliance with industrial safety requirements.

The converter’s low ripple and noise characteristic, at typically 100 mV peak to peak, guarantees stable and clean power outputs suitable for sensitive electronics and industrial control circuits. Its compact dimensions (19.6 mm length × 10.2 mm width × 10.2 mm depth) and light weight (2.2 g) allow integration into space-critical electronic designs.

This product is ideal for use in industrial power supplies, embedded systems, telecommunications, instrumentation, and other electronic applications that require reliable voltage conversion with galvanic isolation and dual voltage outputs.

Provides dual output voltages of 15 V and -15 V DC for versatile power supply needs. Operates from a low 10.8 V to maximum 12 V DC input voltage range. Compact SIP package with industry standard 7-pin through hole mounting.

High efficiency converter with 82% typical efficiency at 1W output power. Features 500 V AC isolation voltage ensuring electrical isolation. Operating temperature range from -40 °C to 85 °C for reliable use in harsh environments.

MTBF rated at 151,000 hours indicating high reliability and durability. Ripple and noise typical value is 100 mV peak to peak ensuring stable output. SIP package dimensions approximately 19.6 mm length, 10.2 mm width, and 10.2 mm depth.

Manufactured with UL94V-0 rated materials for flame retardance. Explore Recom DC/DC Converters on EnvMart for robust power conversion solutions designed for industrial, laboratory, telecommunications, and embedded electronics applications.
