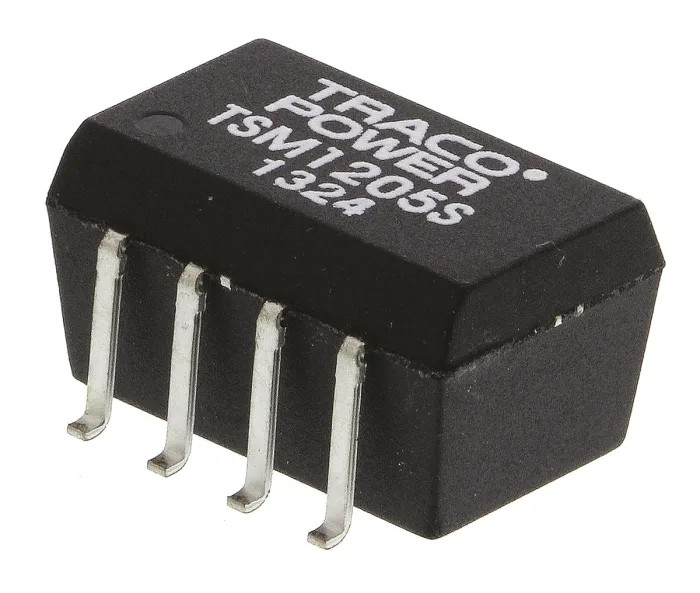

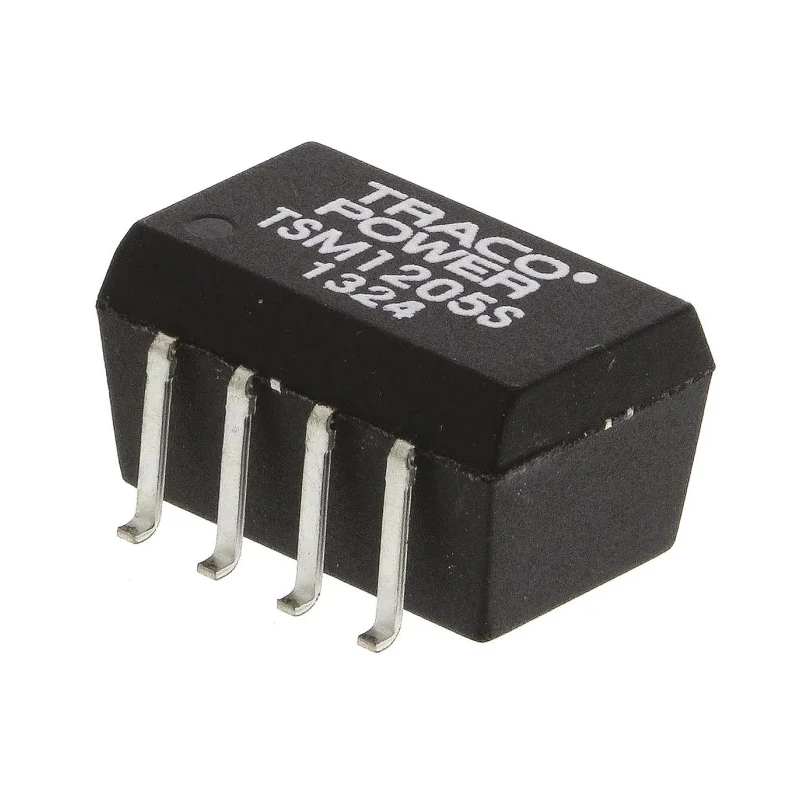

TRACOPOWER 1W Surface Mount Isolated DC/DC Converter 5V DC Output 200mA Input 10.8V - 13.2V TSM 1205S
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TSM DC/DC Converter, 5V dc/ 200 mA, 13 |
| Brand | TRACOPOWER |
| Efficiency | 81% |
| Length | 12.7mm |
| Model | TSM 1205S |
| Depth | 7.8mm |
| Mount Type | Surface |
| Series | TSM |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 13.2V dc |
| Minimum Input Voltage | 10.8V |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1kV dc |
Key Features
- Compact SMD package suitable for automated high-temperature soldering process.
- High efficiency up to 81% allowing low heat dissipation.
- Operating temperature range from -40°C to +85°C for reliable performance.
- Provides galvanic isolation with 1kV dc isolation voltage.
- Single output with output current capacity of 200 mA.
- High MTBF of 2,000,000 hours ensuring long service life.
- Lead-free design compliant with RoHS standards.
- Small footprint ideal for point of load power conversion and noise reduction.
Product Description
TRACOPOWER TSM 1205S is a highly efficient, isolated DC/DC converter designed for surface mount application. It delivers a stable 5V DC output at a maximum current of 200 mA from an input voltage range of 10.8V to 13.2V, producing a maximum output power of 1 Watt. This converter is housed in a moulded plastic SMD package suitable for automated soldering processes ensuring excellent pin co-planarity accuracy.
With an efficiency of 81%, this module maintains low thermal stress during operation, allowing it to operate in harsh environments with temperature ranges between -40°C to +85°C. The device provides an isolation voltage of 1kV dc, making it suitable for applications requiring galvanic isolation such as ground loop elimination.
The TSM 1205S has a length of 12.7mm and depth of 7.8mm, making it extremely compact and suited for point of load power conversion in electronic designs. Its high MTBF rating of 2,000,000 hours ensures reliable, long-term service in industrial, telecommunications, and instrumentation equipment.
This product is lead-free and RoHS compliant, making it environmentally friendly and compliant with international standards. It is ideal for applications in industrial automation, digital interface circuitry, and noise reduction in power supply designs.
Compact SMD package with high pin accuracy for automated assembly. Isolated single output with 1kV dc isolation voltage. Maximum operating temperature of 85°C and minimum of -40°C. High efficiency of 81% reduces heat generation.
Small footprint ideal for space-constrained designs. Lead free, RoHS compliant design. Suitable for reflow solder processes up to 245°C. Long MTBF providing enhanced reliability. Typical uses include digital interface, ground loop elimination, and noise suppression.
Choose from EnvMart’s extensive range of TRACOPOWER DC/DC Converters for your electronic power supply needs. Explore other high-quality power supply components for industrial, laboratory, and commercial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSM 1205S provides a stable output voltage of 5V DC with a maximum output current of 200 mA.
This model operates with an input voltage range of 10.8V to 13.2V DC.
The efficiency of this converter is rated at 81%, allowing for low heat dissipation during operation.
The dimensions of this unit are 12.7 mm in length and 7.8 mm in depth, making it compact for various applications.
The maximum operating temperature for the TSM 1205S is 85°C, while the minimum is -40°C.
This model is designed for surface mounting, suitable for automated soldering processes.
This converter provides a galvanic isolation voltage of 1kV DC, making it suitable for applications requiring isolation.
The TSM 1205S has a high MTBF rating of 2,000,000 hours, indicating reliable long-term performance.
Yes, this product is lead-free and compliant with RoHS standards, making it environmentally friendly.
This DC/DC converter is suitable for applications in industrial automation, digital interface circuitry, and noise reduction in power supply designs.
The maximum output power of this converter is 1 Watt.
The TSM 1205S is housed in a moulded plastic surface mount package, which is suitable for automated assembly.
