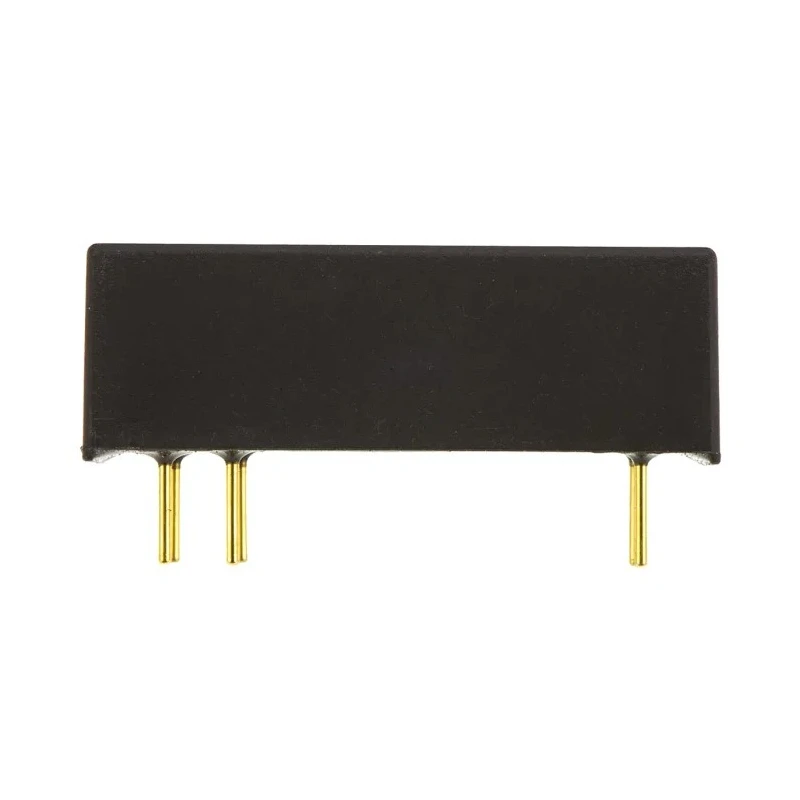

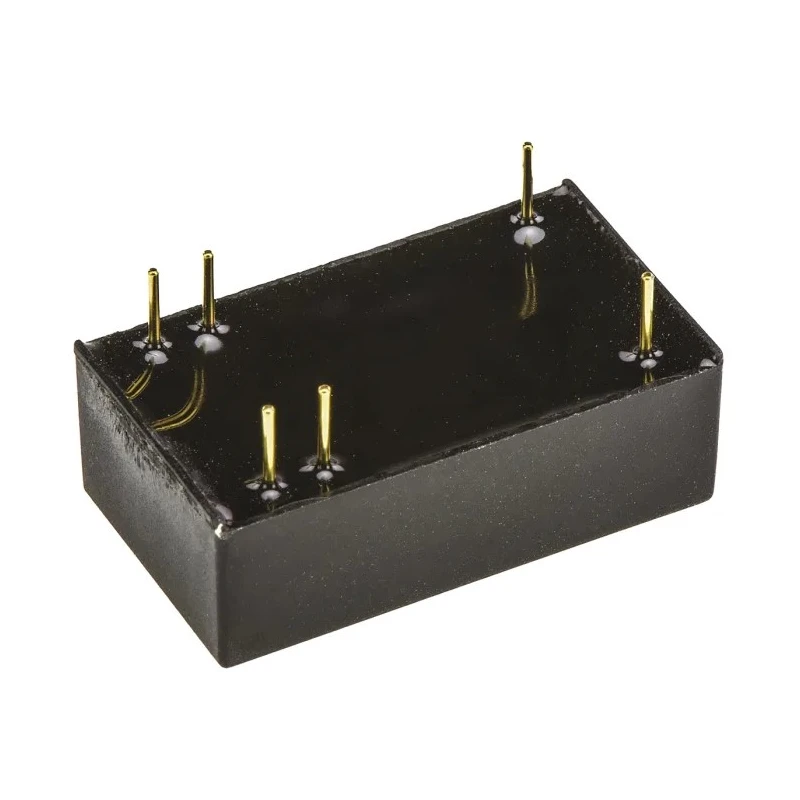

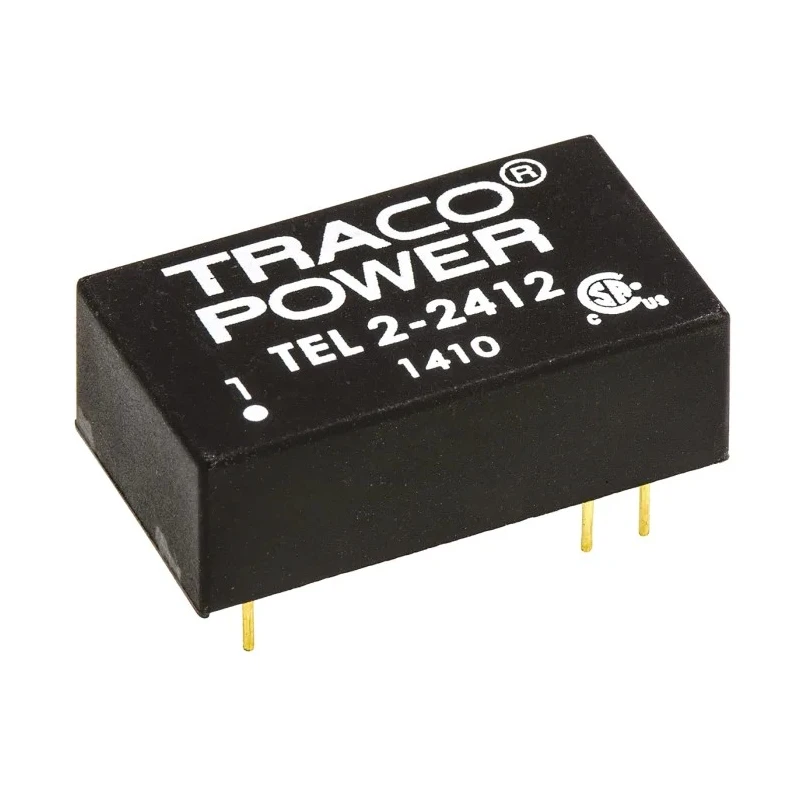

TRACOPOWER DC/DC Converter 12V dc 165mA 36V dc Input 18V Input 2W PCB DIP-16 Package TEL 2-2412
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEL 2 DC/DC Converter, 12V dc/ 165 mA |
| Brand | TRACOPOWER |
| Efficiency | 80% |
| Length | 23.8mm |
| Model | TEL 2-2412 |
| Depth | 7.62mm |
| Mount Type | PCB |
| Series | TEL 2 |
| Maximum Operating Temperature | 80°C |
| Package Type | DIP-16 |
| Minimum Operating Temperature | -40°C |
| MTBF | 1200000h |
| Number of outputs | 1 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 6 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 165mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Wide 2 | 1 input range |
Key Features
- Delivers a stable output voltage of 12V DC at 165mA current.
- Wide input voltage range of 18V to 36V DC supports various applications.
- Compact DIP-16 package suitable for PCB mounting.
- Offers galvanic isolation with 1.5kV DC isolation voltage.
- Maximum output power rated at 2W with 80% conversion efficiency.
- Operating temperature range from -40°C to +80°C for harsh environments.
- Designed with ultracompact size requiring only 3.25 cm² PCB footprint.
- Indefinite short circuit protection enhances device reliability.
Product Description
TRACOPOWER TEL 2-2412 DC/DC Converter is a highly reliable 2 Watt regulated isolated converter designed for industrial and consumer electronics requiring stable 12V DC output at a current of 165mA. This converter features a wide input voltage range from 18V to 36V DC in a compact DIP-16 plastic package, making it ideal for space-constrained printed circuit board (PCB) designs.
The TEL-2 series converters provide galvanic isolation up to 1.5kV DC, ensuring safety and noise reduction in sensitive electronic circuits. With an 80% efficiency rating, the TEL 2-2412 minimizes energy losses and heat generation, promoting long-term reliable operation. Operating temperatures range from -40°C to +80°C without derating, suitable for a variety of industrial environmental conditions.
The device includes built-in input filtering compliant with EN55022 class A standards, eliminating the need for external components for noise suppression. Its low ripple and noise output voltage ensures clean power, essential for precision electronics. Additionally, the converter offers indefinite short circuit protection, contributing to enhanced durability and operational safety.
The ultracompact size of the DIP-16 package allows integration into tight PCB layouts requiring minimal space, with a footprint of only 3.25 cm², depth of 7.62mm and length of 23.8mm. This converter is lead free and RoHS compliant, meeting current environmental requirements.
Delivers a regulated 12V DC output voltage at 165mA current. Wide input voltage range from 18V to 36V DC for flexible operation. Galvanic isolation rated at 1.5kV DC for safety and noise immunity. Compact DIP-16 plastic package ideal for PCB mounting in space-limited designs.
Efficient with 80% typical conversion efficiency reducing power loss. Withstands operating temperatures from -40°C to +80°C without derating. Compliant with EN55022 class A input filter standard without additional parts.
Includes indefinite short circuit protection for reliability. RoHS compliant and lead free for eco-friendly applications. Suitable for industrial, commercial, and consumer electronics applications requiring stable DC voltage conversion.
The TRACOPOWER TEL 2-2412 DC/DC Converter is an excellent choice for engineers and designers seeking a compact, efficient, and robust solution for 12V DC power supply requirements. Its wide input voltage range, high isolation and continuous short circuit protection make it suitable for a variety of industrial, laboratory, and electronic power supply applications.
Explore more products in the DC/DC Converter category at EnvMart for comprehensive power supply solutions from reputed brands including TRACOPOWER.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEL 2-2412 delivers a regulated output voltage of 12V DC at a current of 165mA.
This converter has a wide input voltage range from 18V to 36V DC, allowing for flexible operation in various applications.
The maximum output power rated for this model is 2W.
It comes in a compact DIP-16 plastic package, making it suitable for PCB mounting in space-constrained designs.
The TEL 2-2412 has an efficiency rating of 80%, which helps minimize energy losses.
It offers galvanic isolation rated at 1.5kV DC, ensuring safety and noise immunity in sensitive electronic circuits.
The operating temperature range for the TEL 2-2412 is from -40°C to +80°C, allowing it to function in harsh environments.
This model features a single output.
The DIP-16 package has a depth of 7.62mm and a length of 23.8mm.
Yes, it includes indefinite short circuit protection, enhancing reliability and operational safety.
It includes built-in input filtering compliant with EN55022 class A standards, eliminating the need for external noise suppression components.
The country of origin for this model is Taiwan.
