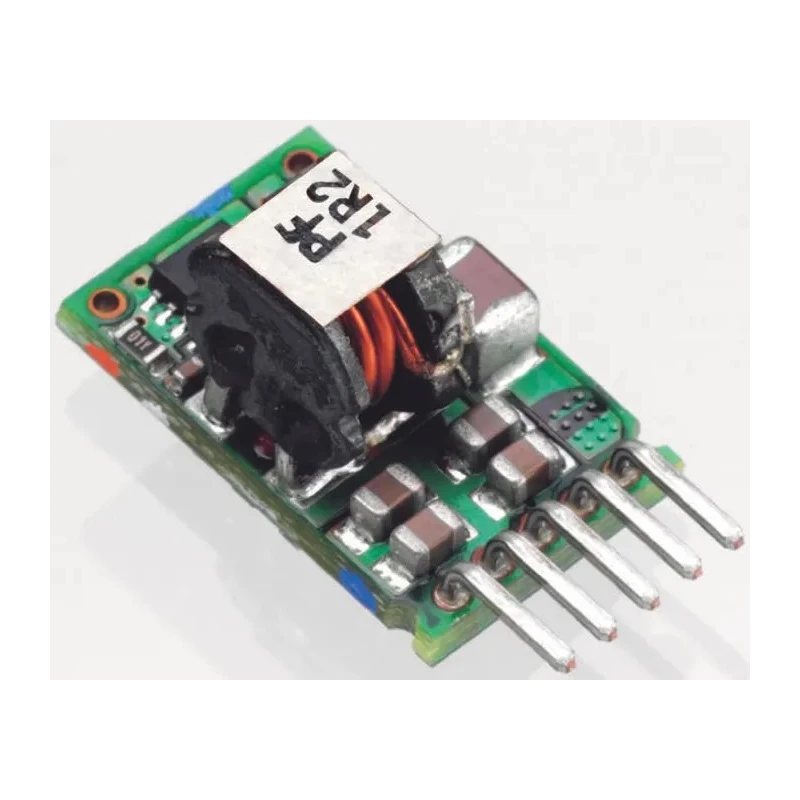

Artesyn / Advanced Energy Series 10 A Single Output Non-Isolated DC/DC Converter, 0.59 V / 5.1 V Output, 3 V to 12 V LDO10C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Artesyn / Advanced Energy |
| Efficiency | 91% |
| Length | 10.41mm |
| Model | LDO10C |
| Depth | 11.35mm |
| Gross Weight | 1.9g |
| Width | 16.51mm |
| Mount Type | Through Hole |
| Series | LDO10C |
| Maximum Operating Temperature | 85°C |
| Package Type | Open Frame |
| Minimum Operating Temperature | -40°C |
| MTBF | 8222210h |
| Number of outputs | 1 |
| Ripple and Noise | 25mV |
| Maximum Output Power | 50W |
| Maximum Input Voltage | 12V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 3V |
| Output Voltage 1 | 0.59, 5.1V dc |
| Output Current 1 | 10A |
| Output Voltage Adjustment Range | 0.59/5.1 V |
Key Features
- Operates over a wide input voltage range from 3 V to 12 V DC.
- Outputs adjustable voltages of 0.59 V and 5.1 V DC.
- Features high efficiency of 91% for energy saving.
- Designed with through-hole mounting for easy PCB installation.

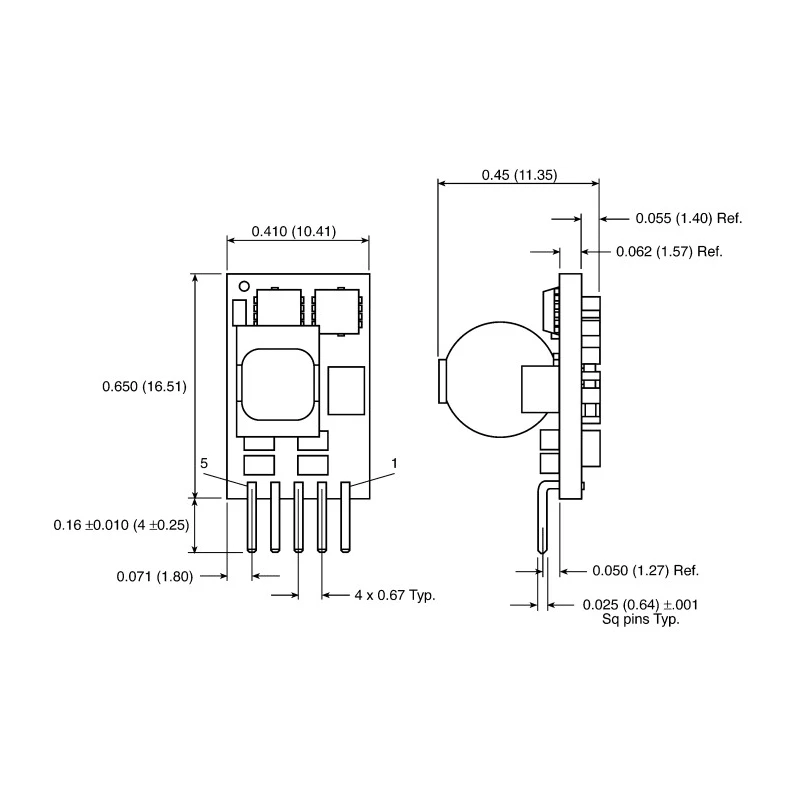

- Compact open frame package with dimensions 16.51 mm x 11.35 mm x 10.41 mm.
- Maximum operating temperature rating of 85°C ensures reliability in demanding environments.
- Includes over-voltage and short current protection for robust operation.
- Meets RoHS standards for environmental compliance.
Product Description
Artesyn / Advanced Energy LDO10C DC/DC Converter is a highly efficient, single output, non-isolated power supply designed for various industrial and electronic applications. It supports a wide input voltage range from 3 V to 12 V DC and provides regulated output voltages of 0.59 V and 5.1 V DC, capable of delivering up to 10 A current and 50 W maximum output power.
The converter utilizes a through-hole open frame package suitable for vertical mounting on printed circuit boards, making it ideal for compact power supply designs. It operates efficiently at up to 91%, reducing energy losses and heat generation during operation.
This product comes with advanced protection features including over-voltage and short current protection, ensuring dependable performance and safeguarding connected circuits in industrial, laboratory, and embedded system environments. Its maximum operating temperature of 85°C and minimum temperature rating of -40°C allow it to function reliably in demanding conditions.
The LDO10C series complies with RoHS directives, supporting sustainable manufacturing practices. With a mean time between failures (MTBF) of more than 8 million hours, it offers superior longevity and reliability in control systems, automation, telecommunications, and power management applications.
Wide input range from 3 V to 12 V DC allows flexible power sourcing. Single output with adjustable voltages provide application versatility. High efficiency minimizes power wastage and thermal footprint. Through-hole mounting facilitates easy assembly and robust mechanical support.
Compact dimensions suit tight space constraints in electronics design. Operating temperature range ensures stable operation in harsh environments. Over-voltage and current protections maintain system safety. RoHS compliance supports green electronics manufacturing.
Long MTBF offers dependable lifetime performance.
Ideal for engineers and designers in industrial power conversion, embedded electronics, and telecommunications sectors, this DC/DC Converter is a reliable choice for high-current regulated power delivery. Explore a wide range of power solutions with Artesyn products at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates over a wide input voltage range from 3 V to 12 V DC.
The converter provides adjustable output voltages of 0.59 V and 5.1 V DC.
It is capable of delivering up to 10 A output current.
This model features a high efficiency rating of 91%.
The compact open frame package has dimensions of 16.51 mm x 11.35 mm x 10.41 mm.
It is designed for through-hole mounting, suitable for vertical installation on printed circuit boards.
It includes over-voltage and short current protection to ensure robust operation.
The maximum operating temperature rating is 85°C, allowing it to function in demanding environments.
It has a minimum operating temperature rating of -40°C.
This unit can deliver a maximum output power of 50 W.
The ripple and noise for the output is specified at 25 mV.
It meets RoHS standards for environmental compliance.
