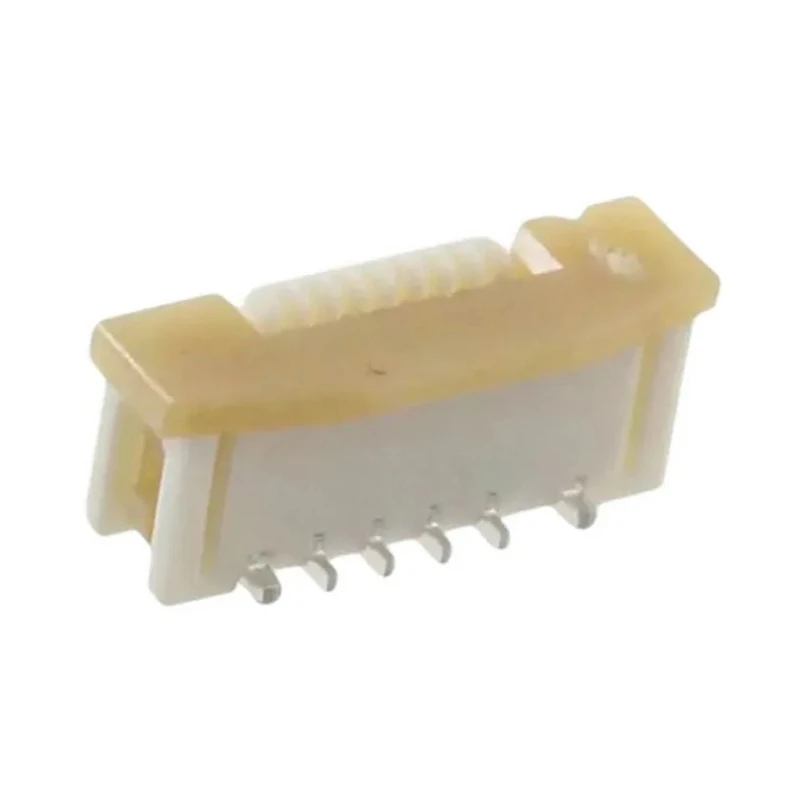

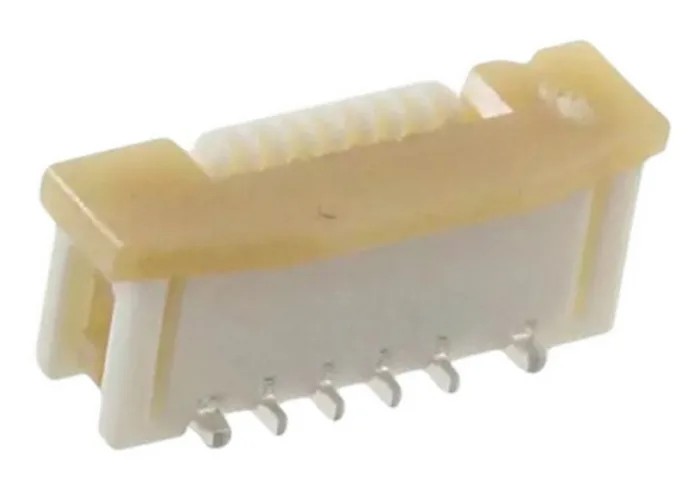

Molex 52559 1 mm Pitch 8 Way Straight Female FPC Connector, Solder 52559-0853
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52559 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 8 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Vertical |
Key Features
- Features a space-saving 1 mm pitch for compact PCB design.
- Constructed with phosphor bronze contacts for high conductivity.
- Incorporates a slide type actuator ensuring secure and easy connection.
- Solder tabs provide reliable PCB retention and strain relief.
- Gold over nickel plating on contacts for enhanced corrosion resistance.
- Housing made from durable nylon material for long service life.
- Rated for a current of 500 mA and voltage of 50 V.
- Operates reliably between -20°C to 85°C.
Product Description
Molex 52559-0853 1 mm Pitch 8 Way Straight Female FPC Connector, Solder is a precision-engineered electronic component designed for high-density PCB applications.
The connector utilizes phosphor bronze contacts plated with gold over nickel to ensure excellent electrical conductivity and corrosion resistance. The housing is made from robust nylon material, providing mechanical stability and durability. It employs a slide type actuator that allows zero insertion force, guaranteeing minimal wear over repeated cycles and securing the FPC firmly in place.
Its solder termination and solder tabs enhance PCB retention and provide strain relief, improving the overall mechanical integrity of the connection. The vertical contact position with locking mechanism ensures secure mating in tight and space-constrained environments.
This connector is rated for 500 mA current and an operating voltage of 50 V, making it suitable for signal and data transmission in applications such as automotive navigation and audio systems, digital cameras, home security devices, tablets, notebooks, patient monitors, GPS units, smartphones, and other consumer electronics.
Operating temperature ranges from -20°C to 85°C, giving it resilience in various environmental conditions. The compact form factor and reliable performance make it ideal for automotive, medical, industrial, datacommunications, and mobile phone industry uses.
Features a space-saving 1 mm pitch for compact PCB design. Constructed with phosphor bronze contacts for high conductivity. Incorporates a slide type actuator ensuring secure and easy connection. Solder tabs provide reliable PCB retention and strain relief.
Gold over nickel plating on contacts for enhanced corrosion resistance. Housing made from durable nylon material for long service life. Rated for a current of 500 mA and voltage of 50 V. Operates reliably between -20°C to 85°C.
Designed with vertical contact position and a locking mechanism for secure fitment. Ideal for automotive, consumer electronics, medical, and communications applications. Molex connectors are widely recognized for their quality and reliability in electronic component markets globally. Browse similar FPC Connectors for your projects here on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 500 mA and a voltage of 50 V.
The connector features phosphor bronze contacts for high conductivity and a housing made from durable nylon material.
It has a space-saving pitch size of 1 mm, making it suitable for compact PCB designs.
This unit operates reliably within a temperature range of -20°C to 85°C.
The connector features 8 contacts arranged in a single row.
It employs a solder termination type, which enhances PCB retention and provides strain relief.
This model has a straight orientation, suitable for various applications.
The contact position is vertical, which helps secure the connection in tight spaces.
The contacts are plated with gold over nickel, which enhances corrosion resistance.
It is suitable for applications in automotive navigation, audio systems, digital cameras, and various consumer electronics.
This connector is designed for surface mounting.
The country of origin for this connector is India.
