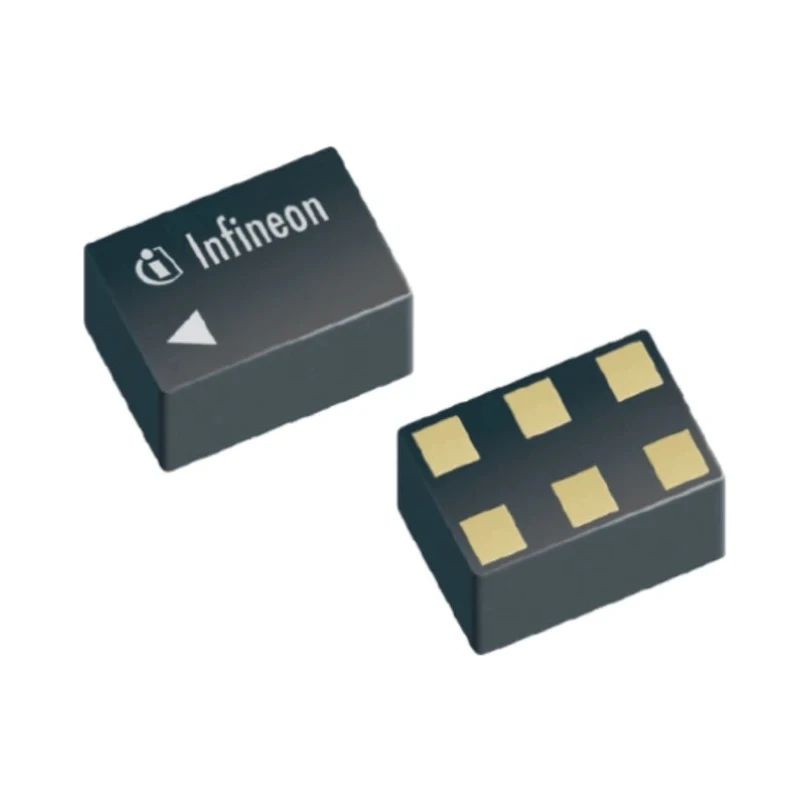

Infineon RF Amplifier Low Noise 21.2 dB Gain 6-Pin TSNP Package 1615 MHz BGA123N6E6327XTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.375mm |
| Length | 1.1mm |
| Model | BGA123N6E6327XTSA1 |
| Technology | Patented Bipolar Technology |
| Series | BGA123N6 |
| Maximum Operating Temperature | 85°C |
| Package Type | TSNP |
| Minimum Operating Temperature | -40°C |
| Gain | 21.2dB |
| Standards/Approvals | RoHS/WEEE |
| Pin Count | 6 |
| Maximum Supply Voltage | 3.3V |
| Minimum Supply Voltage | 1.1V |
| Amplifier Type | Low Noise |
| Noise Figure | 0.75dB |
Key Features
- Provides 21.2 dB gain to effectively boost weak RF signals.
- Noise figure of 0.75 dB minimizes added system noise.
- Operates at 1615 MHz for narrowband applications.
- Supports supply voltage range from 1.1 V to 3.3 V for low-voltage designs.
- Operates reliably between -40 °C and 85 °C for diverse environments.
- Compact 6-pin TSNP package enables easy PCB integration.
- Utilizes patented bipolar technology for low noise amplification.
- Suitable for satellite downlink and portable receiver front-end modules.
Product Description
Infineon BGA123N6E6327XTSA1 RF Amplifier is a compact, low noise amplifier designed to boost weak RF signals in single-frequency receive paths operating at 1615 MHz. Featuring a gain of 21.2 dB and a noise figure of 0.75 dB, it minimizes system noise contribution while significantly amplifying incoming signals. The amplifier supports a supply voltage range from 1.1 V to 3.3 V, enabling flexible low-voltage circuit designs. It operates effectively across a temperature range of -40 °C to 85 °C, suitable for varied industrial and commercial environments.
The device comes in a 6-pin TSNP package that facilitates compact PCB layout and integration into RF modules where space is limited. The patented bipolar technology underpinning this amplifier ensures superior low noise performance, making it ideal for applications requiring high signal fidelity.
Typical applications include satellite downlink front-end modules, portable receiver front-ends with limited power supply, narrowband monitoring equipment, and communications test rigs. It is an excellent choice for compact RF modules balancing space constraints and performance needs.
Provides 21.2 dB gain to effectively boost weak RF signals. Noise figure of 0.75 dB minimizes added system noise. Operates at 1615 MHz for narrowband applications. Supports supply voltage range from 1.1 V to 3.3 V for low-voltage designs.
Operates reliably across -40 °C to 85 °C temperature range. Compact 6-pin TSNP package enables easy PCB integration. Utilizes patented bipolar technology for low noise amplification. Suitable for satellite downlink and portable receiver modules.
Ideal for signal conditioning in communication test rigs and narrowband monitoring. Not automotive-grade; designed for industrial and commercial use. Explore our selection of high-performance RF Amplifiers at EnvMart for reliable signal amplification solutions suitable for demanding industrial and communication applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a gain of 21.2 dB, effectively boosting weak RF signals.
It has a noise figure of 0.75 dB, which minimizes added system noise during amplification.
The amplifier operates at a frequency of 1615 MHz, making it suitable for narrowband applications.
It supports a supply voltage range from 1.1 V to 3.3 V, allowing for flexible low-voltage designs.
It operates reliably between -40 °C and 85 °C, suitable for diverse industrial and commercial environments.
This unit comes in a compact 6-pin TSNP package, facilitating easy PCB integration.
It utilizes patented bipolar technology, which ensures low noise amplification performance.
Typical applications include satellite downlink front-end modules and portable receiver front-ends.
The amplifier has a height of 0.375 mm and a length of 1.1 mm, making it compact for various applications.
This model features a pin count of 6, which is standard for its package type.
It complies with RoHS and WEEE standards, indicating its adherence to environmental regulations.
No, this model is not automotive-grade and is designed for industrial and commercial use only.
