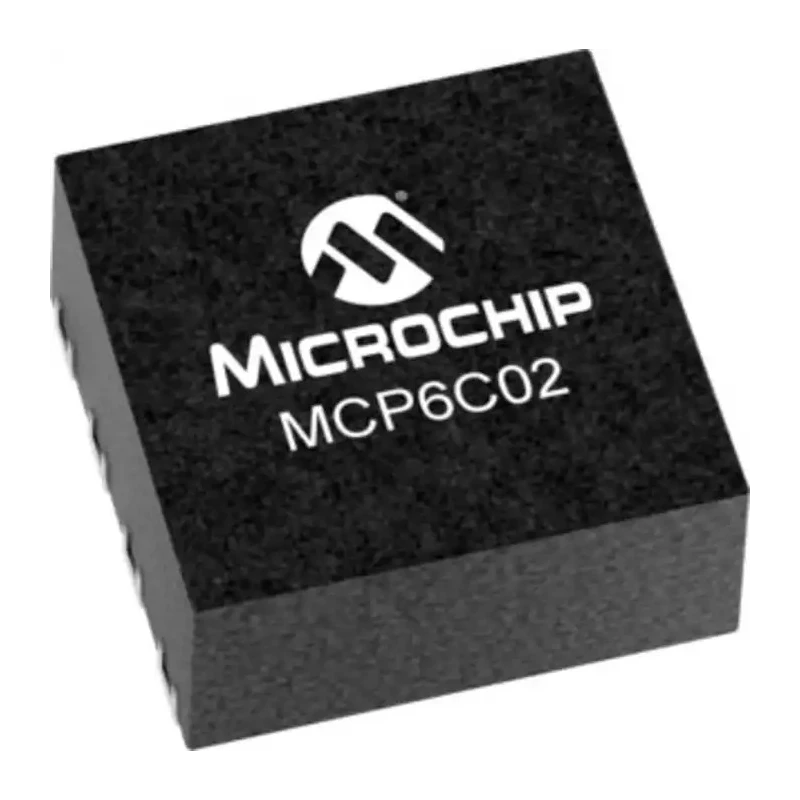

Microchip Current Sensing Amplifier 500 kHz, 68-Pin, SOT-23, 5.5V, Surface Mount MCP6C02T-020H/Q8B
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 3mm |
| Model | MCP6C02T-020H/Q8B |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6C02 |
| Output Current | 20mA |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 68 |
| Automotive Standard | AEC-Q100, AEC Grade 1, AEC Grade 0 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2V |
| GBP - Gain Bandwidth Product | 500kHz |
| Input Bias Current | 170 μA |
| Specified input common-mode range | 3V to 65V |
| Grade 1 | 6-pin SOT-23 package |
| Grade 0 | 8-pin VDFN package |
| EMI Rejection | Enhanced |
Key Features
- Operates with a gain bandwidth product of 500 kHz for fast and accurate signal response.
- Comes in a compact SOT-23 surface-mount package with 68 pins, suited for space-constrained applications.
- Supports supply voltage from 2V to 5.5V, covering a wide voltage range for flexibility.
- Features low input offset voltage and zero-drift architecture for enhanced measurement stability.
- Single-channel design with an automotive-grade standard, ideal for demanding environments.
- Enhanced EMI rejection, making it robust in industrial and automotive settings.
- Operates reliably within temperatures from -40°C to 150°C, suitable for harsh conditions.
- Provides bidirectional or unidirectional current sensing capability.
Product Description
The Microchip MCP6C02T-020H/Q8B Current Sensing Amplifier is engineered for high-side current sensing applications requiring high precision and stability. With a gain bandwidth product of 500 kHz, this amplifier delivers fast signal response suitable for dynamic measurement environments. Its SOT-23 package, combined with a 68-pin configuration, provides flexibility and integration in compact electronic designs.
The device operates across a supply voltage range of 2V to 5.5V and offers low input offset voltage and zero-drift architecture, enabling very accurate current measurements with minimal drift over temperature. Thanks to its single-channel design, the MCP6C02T-020H/Q8B is tailored for both automotive and industrial applications where reliability and measurement fidelity are crucial.
Its input common-mode voltage range extends from 3V to 65V, allowing compatibility with various system configurations. The amplifier supports both bidirectional and unidirectional sensing, making it versatile for monitoring current flow in a range of power management and safety-critical systems.
Key features include enhanced electromagnetic interference (EMI) rejection, AEC-Q100 compliance, and operational stability within extreme temperature ranges (-40°C to 150°C). The output current capability of 20 mA ensures it drives downstream circuits efficiently without compromising accuracy.
Applications include precision current measurement in automotive ECUs, industrial controls, power supplies, and battery management systems, where consistent performance and reliability are paramount.
Explore the broad range of operational amplifiers and current sensing components from Microchip for advanced electronic design innovation in industrial, automotive, and power-management sectors.
Explore more products in our Op Amps category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the MCP6C02T-020H/Q8B is 500 kHz, providing fast and accurate signal response for current sensing applications.
This amplifier operates with a supply voltage range from 2V to 5.5V, allowing flexibility in various applications.
The SOT-23 package has dimensions of 3mm in length, 3mm in width, and a height of 1mm.
The input common-mode voltage range for this model extends from 3V to 65V, allowing compatibility with various system configurations.
This current sensing amplifier can provide an output current of 20 mA, which ensures efficient driving of downstream circuits.
Yes, the MCP6C02T-020H/Q8B is compliant with AEC-Q100, making it suitable for automotive applications.
The input bias current for this model is 170 μA, which is relevant for precision current measurements.
The minimum operating temperature for the MCP6C02T-020H/Q8B is -40°C, allowing it to function in extreme conditions.
The MCP6C02T-020H/Q8B features enhanced electromagnetic interference (EMI) rejection, making it robust in industrial and automotive settings.
This model has a single-channel design, tailored for high-side current sensing applications.
