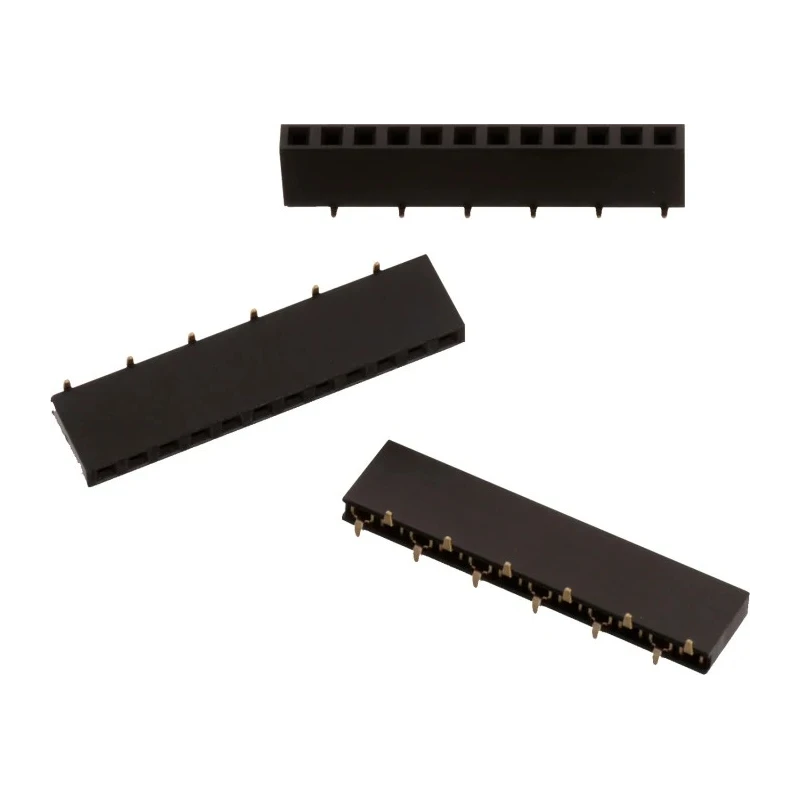

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket, 12 Contacts, 1 Row, 2.54 mm Pitch, 3A, 500V 61001211921
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Standards/Approvals | Lead-free, RoHS compliant |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Connector System | Board-to-Board |
| Insulator Material | PA9T |
| Insulator Flammability Rating | UL94 V-0 |
Key Features
- Designed for board-to-board connections in electronic circuits.
- Features straight surface mounting with a single row for compact installation.
- 12-contact copper alloy socket with gold plating ensures lasting durability.
- Provides 2.54 mm pitch spacing, ideal for modern PCB layouts.
- Rated for 3A current and 500V operation, supporting robust electrical performance.
- Wide operating temperature range from -40°C to 125°C.
- Lead-free and RoHS compliant for eco-friendly manufacturing.
- UL94 V-0 insulator flammability rating for increased safety.
Product Description
Wurth Elektronik 61001211921 WR-PHD Series Straight Surface PCB Socket is engineered to meet the demanding requirements of modern electronic assemblies. Featuring a 12-contact single row design and 2.54 mm pitch, this socket is optimized for board-to-board connections in PCBs. Its surface mount orientation and straight configuration ensure ease of installation and reliable mechanical stability.
Designed for board-to-board connections in electronic and industrial circuits. Single row, surface mount configuration supports compact PCB layouts. Copper alloy contacts with gold plating provide excellent conductivity and durability.
Rated for 3A current and up to 500V voltage, suitable for power and signal transmission. Operates reliably within a wide temperature range, from -40°C to 125°C. Lead-free and RoHS compliant, meeting environmental standards.
UL94 V-0 rated insulating material enhances safety in industrial and laboratory environments. Supports at least 25 mating cycles due to robust construction.
The WR-PHD Series PCB Socket is extensively used in electronics manufacturing, laboratory prototyping, industrial automation systems, and commercial product development. Typical applications include embedded hardware prototyping, high-density circuit boards, test jigs, and sensor interface connections.
With its reliable electrical and mechanical performance, the Wurth Elektronik WR-PHD socket is an ideal choice for designers and engineers looking for quality connectivity solutions on PCBs.
Explore more PCB connectors, sockets, and electronic components from Wurth Elektronik on EnvMart for industrial, laboratory, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB socket is rated for a maximum current of 3A.
The voltage rating for this socket is 500V.
The pitch size of the contacts is 2.54 mm.
This socket features 12 contacts.
It operates reliably within a temperature range of -40°C to 125°C.
This model uses surface mount technology for installation.
The contacts are made of copper alloy and are gold plated for enhanced conductivity.
The insulator material is PA9T, which provides good thermal and mechanical properties.
The insulator has a UL94 V-0 flammability rating, indicating a high level of safety.
Yes, it is lead-free and RoHS compliant, meeting environmental manufacturing standards.
This socket is designed to support at least 25 mating cycles due to its robust construction.
The country of origin for this socket is Taiwan.
