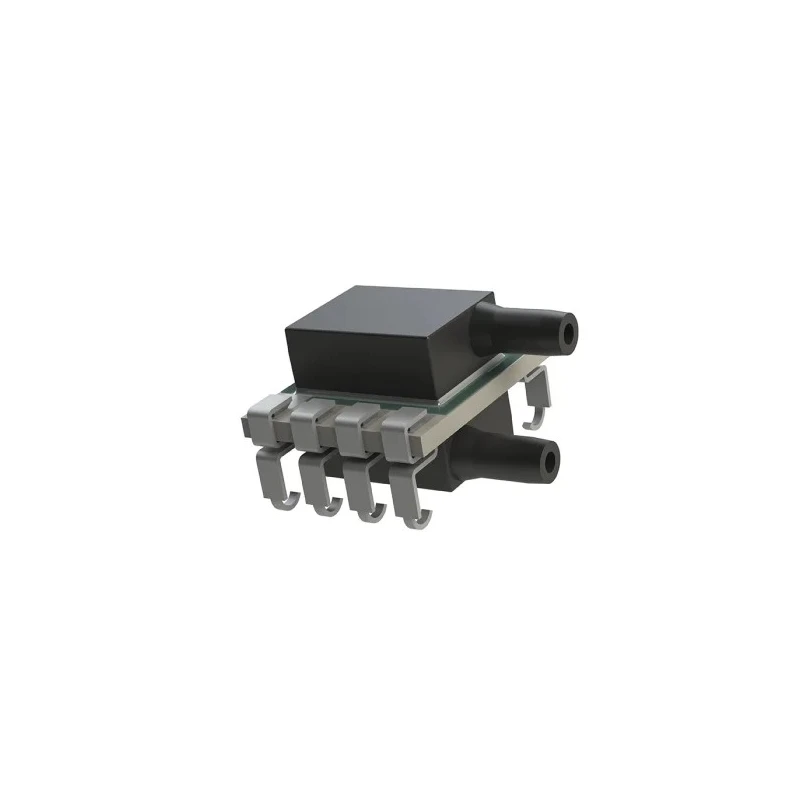

Bourns Analogue Low Pressure Gauge Sensor Surface Mount 8-Pin 2.7-5.5V, 0.15 to 1 psi BPS110-AG01P0-2DG

Bourns BPS110-AG01P0-2DG analogue low pressure gauge sensor offers ultra-low pressure sensing capabilities from 0.15 psi to 1.0 psi (10 mbar to 70 mbar), making it ideal for precision measurement in various industrial and medical applications.

This surface mount sensor features an 8-pin package and operates over a supply voltage range of 2.7V to 5.5V, delivering analogue output voltages between 0.5V and 4.5V. With a high accuracy of 0.25% full scale and active temperature compensation, it maintains exceptional stability with a total error band of 1.5% FS between 0 °C and +60 °C, processed under Six-Sigma standards to ensure reliability.

The pressure sensor supports gauge pressure measurements with a maximum overload pressure of 1 psi and functions well under operating temperatures from -40°C to 85°C. Its non-corrosive dry gas media compatibility broadens its application range.

Applications for the BPS110 series include medical devices such as portable oxygen generators, nebulizers, CPAP equipment, diagnostic spirometers, and gas chromatography, as well as industrial applications like process control, HVAC systems, pneumatic control, gas flow instrumentation, and flow calibrators. Its compact size and surface mount design enable easy integration into PCB layouts, aiding in design flexibility.

Gauge pressure sensor with a maximum overload of 1 psi for safety and durability. Surface mount package with 8-pin configuration for easy PCB integration. High accuracy of 0.25% full scale suitable for sensitive applications.

Operates reliably between -40°C and 85°C with active temperature compensation. Outputs analogue voltage from 0.5V minimum to 4.5V maximum for precise measurement. Designed for non-corrosive dry gases ensuring media compatibility.

Compact size with 12 mm length and 8.4 mm height suitable for space-constrained designs. Complies with RoHS3 Directive 2015/863 for environmental safety. Ideal for medical devices like portable oxygen generators, nebulizers, and CPAP equipment.

Also suited for industrial process control, HVAC, pneumatic control, and gas flow instrumentation.

Bourns is a recognized brand in pressure sensing technology, providing world-class technical support and global supply chain reliability. This sensor is an excellent choice for engineers requiring high-precision, stable, ultra-low pressure measurement in both analogue and digital system designs.
