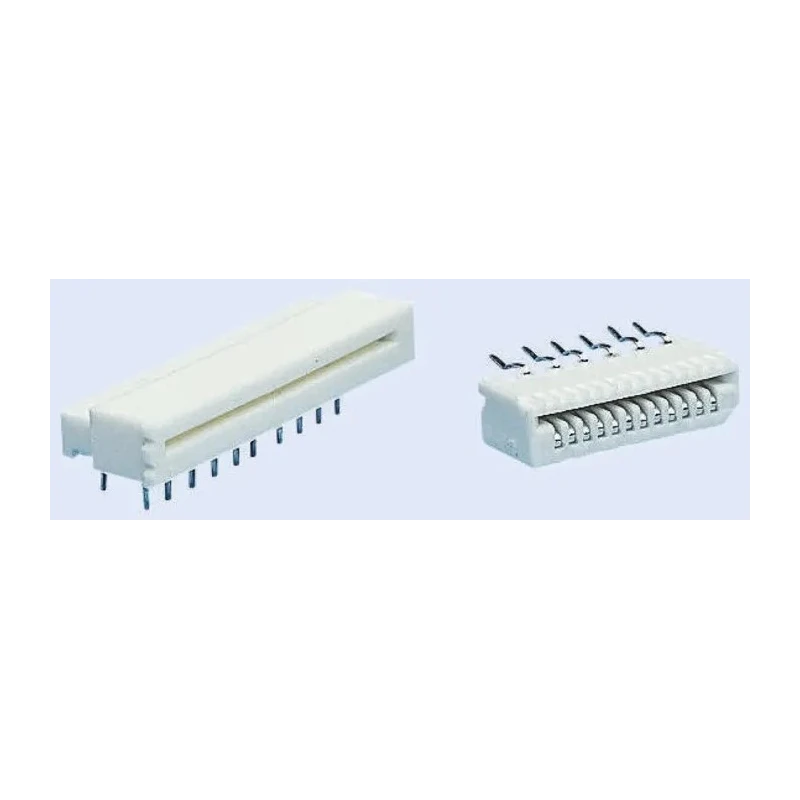

Molex 1.25 mm Pitch 12 Way Right Angle Female FPC Connector Through Hole, Solder Termination 39-53-2124
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- Features Zero Insertion Force (ZIF) for easy and secure FPC connections.
- Contact material is phosphor bronze with tin bismuth over nickel plating.
- Rated for 1 amp current and 200 V voltage.
- Suitable for operating temperatures ranging from -20°C to 80°C.
- Housing is made from durable polybutylene terephthalate (PBT) material.
- Staggered solder tails improve solderability and mechanical stability.
- Slide type actuator ensures secure locking and easy insertion of flexible printed circuits.
- Designed for space-saving in tight packaging applications.
Product Description
Molex 39-53-2124 is a high-quality 1.25 mm pitch 12 way right angle female FPC connector designed for through hole PCB mounting with solder termination. It belongs to the 5597 series of FPC Connectors renowned for their space-saving form factor and Zero Insertion Force (ZIF) mechanism. The ZIF slide actuator facilitates repeated insertion and secure connection of flexible printed circuits with minimal wear.
The connector features phosphor bronze contacts plated with tin bismuth over nickel, providing reliable electrical conductivity and corrosion resistance. It supports current ratings up to 1 amp and voltage ratings up to 200 volts. The housing is made of robust polybutylene terephthalate (PBT), ensuring mechanical strength and durability under operating temperatures between -20°C and 80°C.
Its right angle orientation with staggered solder tails offers space-efficient PCB layout and robust mechanical solder joint integrity. The locking mechanism and slide actuator enhance the connector's usability and ensure a stable connection, making it suitable for applications in automotive electronics, consumer devices, and general electronic assemblies.
This 12 contact connector in a single row provides reliable through hole FPC connection and is compliant with industry standards, although explicit certifications are not present. Its compact design fits well in equipment requiring dense packing on PCBs.
Zero Insertion Force for minimal wear and easy insertion. Phosphor bronze contacts with tin bismuth over nickel plating. Rated 1A current and 200V voltage. Operating temperature range from -20°C to 80°C. PBT housing for durability.
Right angle orientation with staggered solder tails. Secure locking mechanism with slide actuator. Space-saving design ideal for tight packaging. Suitable for automotive and electronic applications.
Explore the Electronics Components category on EnvMart for more advanced FPC and PCB connectors from Molex and other leading brands tailored to meet diverse electronics manufacturing requirements.
