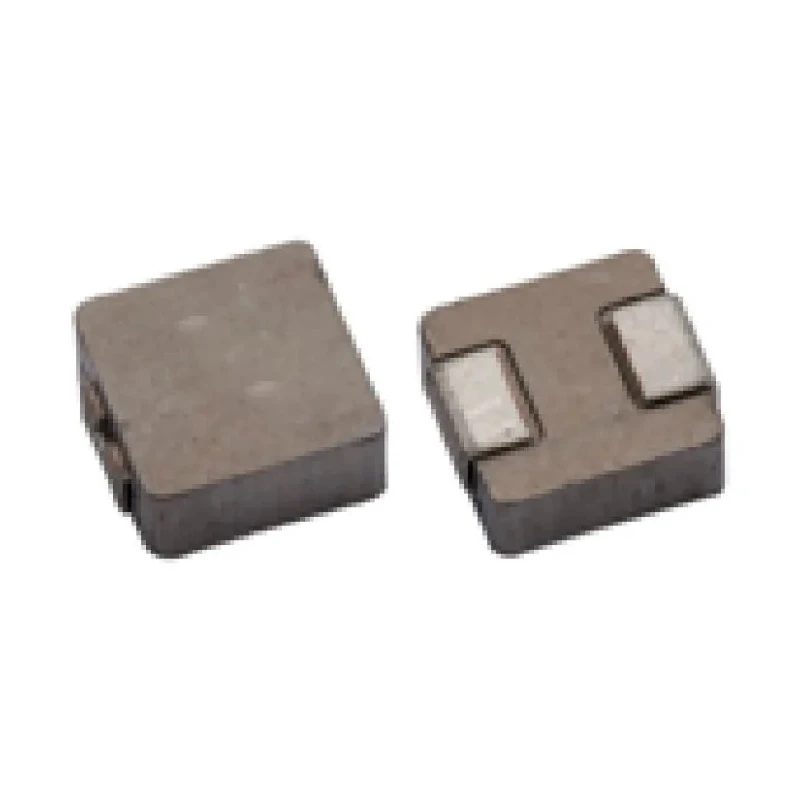

Abracon Shielded Surface Mount Iron Core Power Inductor 4.7 nH ±20% 4.5 A 5.6mm Length ASPI-0530LR-4R7M-T2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 5.6mm |
| Model | ASPI-0530LR-4R7M-T2 |
| Depth | 3mm |
| Packaging | Tape and Reel |
| Series | ASPI-0530LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 4.7nH |
| Standards/Approvals | QS 9000, Pb RoHS, ISO 9001 |
| Package/Case | Surface Mount |
| Maximum DC Current | 4.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 65mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Suitable for Reflow Soldering |
| Inductor Construction | Moulding Type Power Inductor |
Key Features
- The inductor features a moulding type power construction ideal for high current DC/DC converters.
- It operates reliably between -55°C and 125°C operating temperature range.
- Designed with shielding and suitable for reflow soldering processes.
- Compact dimensions of 5.6 mm length, 3 mm height, and 3 mm depth enhance PCB integration.
- Low DC resistance of 65 mΩ ensures minimal power loss.
- Complies with QS 9000, Pb RoHS, and ISO 9001 quality and environmental standards.
- Available in tape and reel packaging optimized for automated assembly.
Product Description
Abracon ASPI-0530LR-4R7M-T2 is a shielded surface mount inductor featuring a robust iron core and moulding type power inductor construction designed for efficient power management in electronic circuits. With an inductance of 4.7 nH and tolerance of ±20%, it supports high current flows up to 4.5 A, suitable for demanding DC/DC converter applications.
The compact dimensions of 5.6 mm length, 3 mm height, and 3 mm depth allow for seamless integration in space-constrained PCB layouts. This inductor exhibits a maximum DC resistance of 65 mΩ, promoting low loss and improved energy efficiency.
Operating temperature range spans from -55°C to 125°C, ensuring reliability in various environmental conditions. The inductors are shielded to minimize EMI and noise, enhancing circuit stability. Termination style supports reflow soldering, making it compatible with modern surface-mount technology assembly lines.
This product adheres to quality and environmental standards such as QS 9000, Pb RoHS compliance, and ISO 9001 certification, affirming its reliability and regulatory compliance. It is supplied in tape and reel packaging, facilitating automated high-volume assembly processes in manufacturing environments.
The inductor features a moulding type power construction ideal for high current DC/DC converters. Compact size with low DC resistance supports efficient power supply design. Wide operating temperature range for industrial and commercial applications.
Shielding reduces electromagnetic interference and improves circuit performance. Suitable for surface mount assembly with reflow soldering compatibility. Complies with international quality standards including QS 9000 and ISO 9001.
Available on tape and reel for automated production efficiency.
This Abracon Surface Mount Inductor is widely used in industrial electronics, consumer electronics, telecommunications, computing, and other sectors requiring high performance power inductors. Browse more components and inductors with reliable quality at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 nH with a tolerance of ±20%.
It can handle a maximum DC current of 4.5 A.
This inductor has dimensions of 5.6 mm in length, 3 mm in height, and 3 mm in depth.
The operating temperature range spans from -55°C to 125°C.
It features a moulding type power inductor construction, designed for high current applications.
Yes, the termination style is suitable for reflow soldering, making it compatible with modern assembly processes.
The maximum DC resistance is 65 mΩ, which helps minimize power loss.
It complies with QS 9000, Pb RoHS, and ISO 9001 quality and environmental standards.
It is available in tape and reel packaging, optimized for automated assembly.
The core material of this inductor is iron.
This inductor is widely used in industrial electronics, consumer electronics, telecommunications, and computing sectors.
This model has a pin count of 2.
