TDK 470 nF Multilayer Ceramic Capacitor, 450V dc, ±10 %, Surface Mount, Dielectric X7T, Package 1812 C4532X7T2W474K230KE

Free Delivery in India | Lowest Global Shipping Charges

TDK 470 nF Multilayer Ceramic Capacitor, 450V dc, ±10 %, Surface Mount, Dielectric X7T, Package 1812 C4532X7T2W474K230KE



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	Japan
Voltage	450V dc
Brand	TDK
Height	2.3mm
Length	4.5mm
Model	C4532X7T2W474K230KE
Packaging	Tape & Reel
Width	3.2mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	470nF
Minimum Operating Temperature	-55°C
Package/Case	1812
Dielectric	X7T
Suppression Class	Class II

Key Features

High capacitance achieved through multiple thinner ceramic dielectric layers.
Low residual inductance ensures superior frequency characteristics.
Excellent DC bias properties for stable performance.
Wide voltage rating range from 100 V to 630 V available.
Dielectric classification X7T providing reliable temperature performance.
Package size 1812 suitable for automated assembly processes.
Operating temperature range from -55°C to 125°C for harsh environments.
Class II suppression providing effective noise reduction.

Product Description

TDK C4532X7T2W474K230KE is a high-performance 470 nF Multilayer Ceramic Capacitor designed for surface mounting in electronic circuits. It operates at a rated voltage of 450 V DC with a tolerance of ±10 %, ensuring precise capacitance levels suitable for sensitive and critical applications.

This capacitor features the X7T dielectric, which offers stable operation across a wide temperature range from -55°C minimum to 125°C maximum, making it ideal for industrial, automotive, and consumer electronics environments.

Constructed with multiple thin ceramic dielectric layers, it achieves a high capacitance value while maintaining low residual inductance, which results in superior frequency response and reduced noise. Its Class II suppression characteristic ensures effective transient voltage and noise filtering.

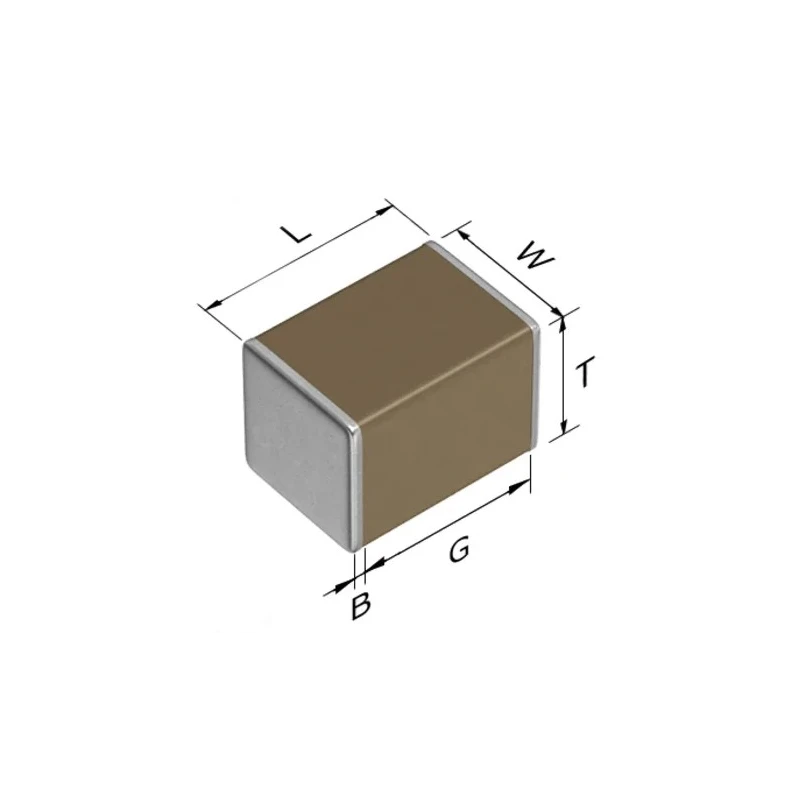

The capacitor comes in the 1812 package size, measuring approximately 4.5 mm in length, 3.2 mm in width, and 2.3 mm in height, compatible with automated surface mount assembly lines. The termination is surface mount type, optimized for secure PCB connection.

Applications include snubber circuits in power supplies, electric flash circuits in digital cameras, power factor correction, input-output filtering in power supplies, driver circuits for plasma displays, and noise bypass functions. The capacitor is manufactured in Japan, assuring stringent quality control and reliability standards.

High capacitance through precision multilayer ceramic technology. Low residual inductance for enhanced frequency characteristics. Wide voltage rating options from 100 V to 630 V. Temperature stable X7T dielectric from -55°C to 125°C.

Class II suppression for effective noise and transient voltage handling. Surface mount packaging in tape and reel format. Dimensions: 4.5mm length, 3.2mm width, 2.3mm height in 1812 package. Applications in power supplies, cameras, plasma displays, and noise filtering.

Manufactured in Japan with quality assurance.

This capacitor is an essential component in electronic assemblies requiring reliable, high-frequency performance and stable capacitance over wide temperature ranges. It supports industrial, automotive, and consumer electronic manufacturing sectors. Browse more Multilayer Ceramic Capacitors to find complementary parts for your electronic design needs on EnvMart.
