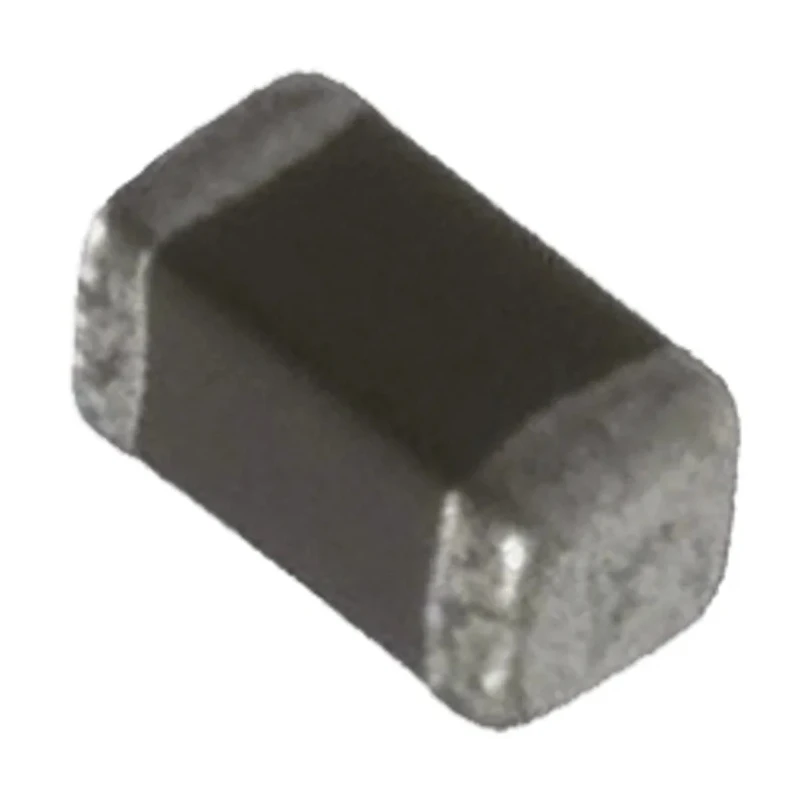

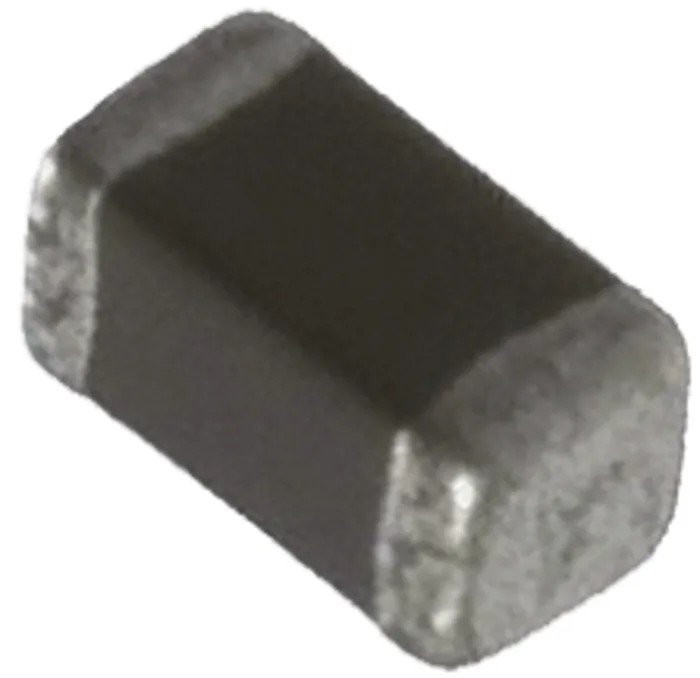

TDK 0805 Shielded Multilayer Surface Mount Inductor with Ferrite Core 560 nH ±10% 150 mA MLF2012

TDK MLF2012 shielded multilayer surface mount inductor delivers stable inductance of 560 nH with a tolerance of ±10%, featuring an 0805 package size tailored for compact and high-density assembly applications.

This component incorporates a ferrite core that provides effective magnetic shielding, reducing interference and enhancing device reliability in sensitive electronic circuits.

Designed with multilayer construction, this SMD inductor supports a maximum DC current rating of 150 mA and operates efficiently within a temperature range of -40°C to 85°C, suitable for diverse industrial and commercial electronics environments.

The inductor exhibits a maximum DC resistance of 550 mΩ, helping to minimize power losses and improve circuit efficiency. Its surface mount termination style ensures easy integration onto printed circuit boards.

With a maximum self-resonant frequency of 210 MHz and a minimum quality factor of 25, this inductor is optimized for high-frequency applications such as signal lines in mobile telephony, tuners, and computer systems.

Features a ferrite core for magnetic shielding and enhanced performance. Multilayer construction ideal for high-density mounting. Compact 0805 package size with precise electrical characteristics. Wide operating temperature range of -40°C to 85°C.

Low maximum DC resistance of 550 mΩ. Surface mount termination for PCB integration. RoHS compliant ensuring environmental safety. High-frequency capability with 210 MHz self-resonant frequency. Stable inductance with ±10% tolerance.

This TDK inductor is suitable for industrial, telecommunications, consumer electronics, and computing applications requiring reliable signal integrity and noise reduction within compact devices.
