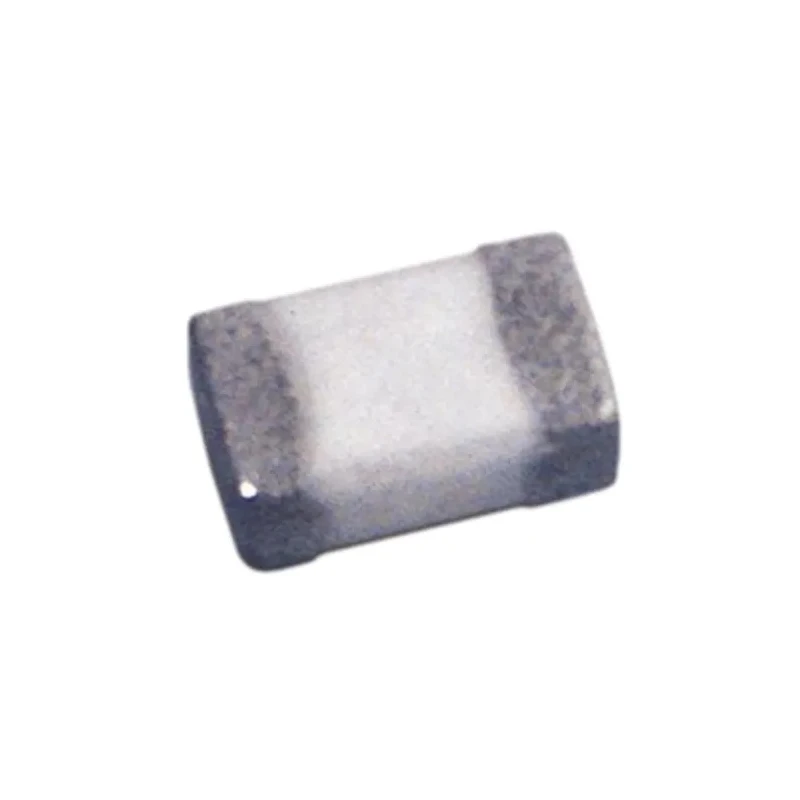

TDK 0603 Shielded Multilayer Surface Mount Inductor with Ceramic Core, 47nH, ±0.05 % Tolerance, 400mA DC Current 744786147A

Free Delivery in India | Lowest Global Shipping Charges

TDK 0603 Shielded Multilayer Surface Mount Inductor with Ceramic Core, 47nH, ±0.05 % Tolerance, 400mA DC Current 744786147A



Category Inductors Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	0.8mm
Length	1.6mm
Model	744786147A
Depth	0.8mm
Packaging	Tape & Reel
Series	WE-MK
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ceramic
Inductance	47nH
Package/Case	0603
Maximum DC Current	400mA
Pin Count	2
Maximum DC Resistance	700mΩ
Inductance Tolerance	±0.05 %
Termination Style	Surface Mount
Maximum Self Resonant Frequency	1.2GHz
Minimum Quality Factor	12
Inductor Construction	Multilayer

Key Features

Inductance value of 47nH with tight tolerance of ±0.05 %.
Maximum DC current rating of 400mA supports moderate power applications.
Compact 0603 package with dimensions 1.6mm length and 0.8mm height and depth.
Shielded multilayer construction reduces electromagnetic interference effectively.
Suitable for reflow or wave soldering with surface mount termination style.
Operating temperature range from -55°C to 125°C for reliability under various conditions.
Ceramic core material and multilayer inductor construction provide excellent electrical characteristics.
High maximum self resonant frequency of 1.2GHz supports RF and wireless applications.

Product Description

Wurth Elektronik 744786147A is a 0603 shielded multilayer surface mount inductor featuring a ceramic core and precise inductance of 47nH with a tight tolerance of ±0.05 %. Designed for high frequency electronic circuits, this inductor excels in signal tuning, filtering, and impedance matching.

The part is constructed using multilayer technology with windings printed on a ceramic substrate. This construction ensures high reliability and stable inductance over temperature variations ranging from -55°C to 125°C. It features a maximum DC current rating of 400mA, making it suitable for moderate current applications in RF amplifiers, tuners, transponders, and wireless LAN devices.

Its compact 0603 package, measuring 1.6mm length by 0.8mm height and depth, allows for high-density PCB assembly. Shielding effectively reduces electromagnetic interference, maintaining signal integrity in sensitive circuits. The inductor is compatible with surface mount technology using reflow or wave soldering methods and is supplied in tape and reel packaging facilitating automated assembly.

Inductance value of 47nH with ±0.05 % tolerance. Maximum DC current of 400mA. Compact 0603 package: 1.6mm x 0.8mm x 0.8mm. Shielded multilayer construction for EMI reduction. Surface mount termination style suitable for reflow and wave soldering.

Operating temperature range: -55°C to 125°C. Ceramic core providing stable electrical performance. Maximum self-resonant frequency of 1.2GHz. Minimum quality factor of 12 ensures low losses.

These inductors are ideal for industrial, communication, and electronic manufacturing applications, including tuners, oscillators, Bluetooth and wireless LAN equipment. The reliable ceramic core and multilayer construction ensure consistency across production batches.
