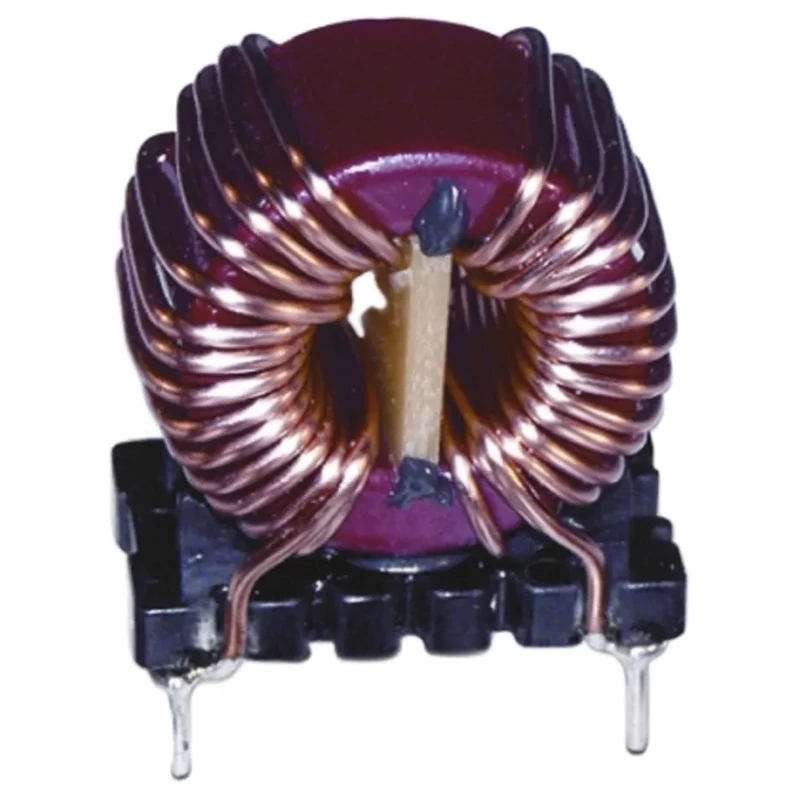

Wurth Elektronik 3.3 mH Manganese Zinc Leaded Inductor Radial Mount 2.5 A 60 mΩ 1500 V WE-CMB HC 744823333
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 23.5mm |
| Brand | Wurth Elektronik |
| Height | 28mm |
| Length | 23.5mm |
| Depth | 13.5mm |
| Mount Type | Radial |
| Series | WE-CMB HC |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Test Frequency | 10kHz |
| Core Material | Manganese Zinc |
| Maximum Voltage | 1500V |
| Inductance | 3.3mH |
| Standards/Approvals | UL-94V-2, UL-94V-0 |
| Maximum DC Current | 2.5A |
| Pin Count | 4 |
| Maximum DC Resistance | 60mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Lead Pitch | 7.5mm |
| Lead Diameter | 0.7mm |
Key Features
- Constructed with manganese zinc core material for enhanced performance.
- Compact dimensions with 23.5 mm diameter and 28 mm height.
- Operating temperature range from -40°C up to 125°C.
- Termination style is solder with 4 pins and 0.7 mm lead diameter.
- Rated for a maximum voltage of 1500 V and tested at 10 kHz frequency.
- Complies with standards UL-94V-2 and UL-94V-0 for flammability.
- Inductance tolerance is ±30 %, suitable for challenging industrial environments.
Product Description
Wurth Elektronik 744823333 is a 3.3 mH manganese zinc leaded inductor engineered for radial mounting applications, delivering reliable performance with a maximum DC current rating of 2.5 A and a maximum DC resistance of 60 mΩ. It features a robust manganese zinc core and offers excellent suppression of electromagnetic interference in circuits.
This compact component measures 23.5 mm in diameter, 28 mm in height, and 13.5 mm in depth, making it suitable for space-constrained designs. The lead diameter is 0.7 mm with a lead pitch of 7.5 mm, terminating in solder pins for secure PCB attachment.
Designed to withstand harsh operating conditions, it supports a wide temperature range from -40°C to 125°C and can handle voltages up to 1500 V. The inductor is tested at a frequency of 10 kHz and meets UL-94V-2 and UL-94V-0 flammability standards, ensuring safety and durability in electrical systems.
The WE-CMB HC series common mode chokes from Wurth Elektronik provide compact solutions for filtering and suppression of asymmetrical interferences, particularly in power electronics and motor noise suppression. This product is ideal for industrial, electronic, automotive, and power supply applications requiring high reliability.
Constructed with manganese zinc core material for enhanced performance. Compact dimensions with 23.5 mm diameter and 28 mm height. Operating temperature range from -40°C up to 125°C. Termination style is solder with 4 pins and 0.7 mm lead diameter.
Rated for a maximum voltage of 1500 V and tested at 10 kHz frequency. Complies with standards UL-94V-2 and UL-94V-0 for flammability. Inductance tolerance is ±30 %, suitable for challenging industrial environments.
This leaded inductor is supplied in a bag, ready to be integrated into manufacturing lines efficiently. It supports engineers and technical designers to improve noise suppression and electromagnetic compatibility in their electronic circuit designs.
Explore more Wurth Elektronik Inductors and other electronic components at EnvMart for industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 3.3 mH, making it suitable for various applications requiring this level of inductance.
It has a maximum DC current rating of 2.5 A, which is important for ensuring it operates within safe limits in electrical circuits.
This inductor is rated for a maximum voltage of 1500 V, allowing it to be used in high-voltage applications.
The inductor has a diameter of 23.5 mm, a height of 28 mm, and a depth of 13.5 mm, making it compact for various installations.
It operates within a temperature range of -40°C to 125°C, suitable for harsh environmental conditions.
This model features a solder termination style with 4 pins and a lead diameter of 0.7 mm for secure PCB attachment.
It complies with UL-94V-2 and UL-94V-0 standards for flammability, ensuring safety in electrical applications.
The inductor is tested at a frequency of 10 kHz, which is relevant for its performance in filtering applications.
It is constructed with a manganese zinc core material, which enhances its performance in suppressing electromagnetic interference.
The inductance tolerance is ±30 %, which is important for applications requiring specific inductance values.
The lead pitch for this model is 7.5 mm, which is important for compatibility with PCB designs.
This inductor is manufactured in India, which may be relevant for sourcing and compliance considerations.
