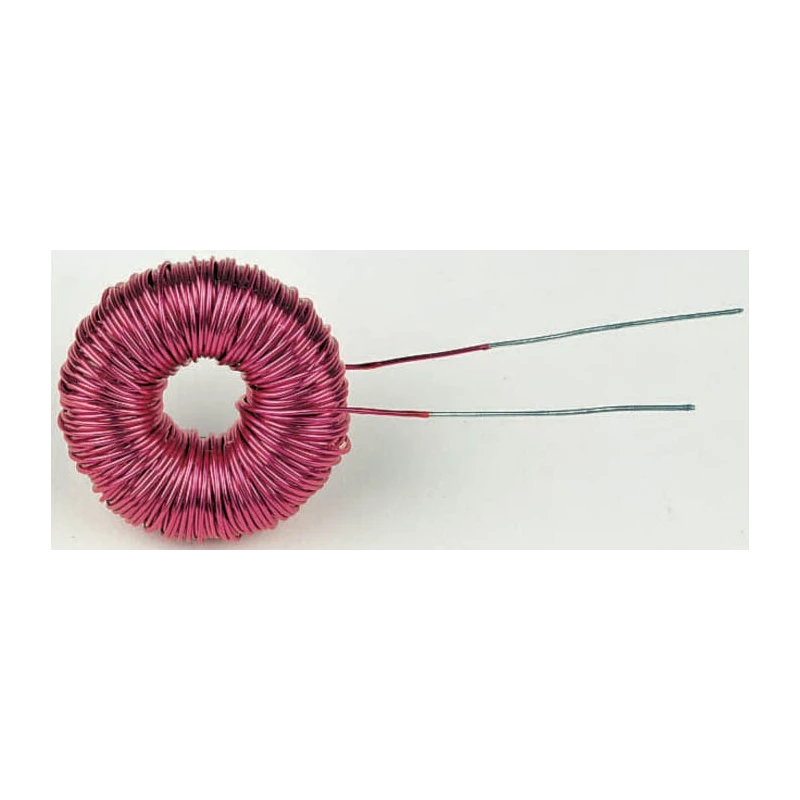

Roxburgh EMC Composite Iron Powder Toroidal Inductor 2.9 mH, Lead Mount, 500 mΩ Rdc, SF1122

Free Delivery in India | Lowest Global Shipping Charges

Roxburgh EMC Composite Iron Powder Toroidal Inductor 2.9 mH, Lead Mount, 500 mΩ Rdc, SF1122

Name: Roxburgh EMC Composite Iron Powder Toroidal Inductor 2.9 mH, Lead Mount, 500 mΩ Rdc, SF1122
Brand: Roxburgh EMC
SKU: 86380
Price: 6.9 USD
Availability: InStock



Category Inductors Brand Roxburgh EMC Condition New

Specifications

Country of Origin	India
Diameter	32mm
Brand	Roxburgh EMC
Height	13mm
Length	40mm
Model	SF1122
Depth	13mm
Mount Type	Lead
Series	SF
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Composite Iron Powder
Inductance	2.9mH
Standards/Approvals	UL
Maximum DC Resistance	500mΩ
Inductance Tolerance	20 %
Termination Style	Lead Stripped and Tinned
Lead Pitch	5mm
Lead Diameter	0.56mm
Roxburgh EMC 2.4 mH Composite Iron Powder Toroidal Inductor, 400 mΩ Rdc, SFBrand	Roxburgh EMC

Key Features

Provides reliable electromagnetic interference suppression in phase angle control applications.
Features composite iron powder toroidal core construction for stable inductance performance.
Offers a 2.9 mH inductance rating, suitable for mains voltage circuits and RFI control.
Maximum DC resistance of 500 mΩ for minimal energy loss.
Lead mount type with stripped and tinned termination ensures easy PCB integration.
32 mm diameter and 0.56 mm lead diameter allow for compact board placement.
Operates between -40°C and 125°C for wide temperature resilience.
UL approved and compliant with BS800 interference limits.

Product Description

The Roxburgh EMC SF1122 is a composite iron powder toroidal inductor specifically designed for electromagnetic interference (EMI) and radio frequency interference (RFI) suppression in electronic systems. With an inductance of 2.9 mH, this toroidal inductor is engineered to operate efficiently in phase angle control equipment and mains voltage circuits, commonly used in industrial and power electronics applications.

The product features a composite iron powder core, offering superior stability and consistent inductance across its operational temperature range. The toroidal configuration minimizes stray magnetic fields, making it ideal for environments where EMC compliance is critical. Its lead mount termination with stripped and tinned leads allows for reliable and straightforward installation onto printed circuit boards.

Designed with a maximum DC resistance of 500 mΩ, the SF1122 ensures low energy loss and optimal performance. The physical dimensions include a 32 mm diameter, 13 mm height, 40 mm length, and 0.56 mm lead diameter, resulting in a compact footprint suitable for modern PCB layouts. The inductor supports applications in control systems, filtering, and suppression of electrical noise.

Operating over a wide temperature range from -40°C to 125°C and featuring an inductance tolerance of 20 percent, the SF1122 meets UL standards and is ideally suited for installations that must comply with BS800 interference limits. Its robust construction ensures durability under demanding conditions, and the 5 mm lead pitch facilitates secure mechanical and electrical connections.

The Roxburgh EMC SF Series toroidal radial choke is particularly useful in industrial, automation, commercial, and power supply systems requiring stringent EMC performance. Use cases include phase angle control equipment, mains filtering, and RFI suppression in high-performance electronic assemblies.

Explore more toroidal Inductors and passive components in the Electronics & Electricals category on EnvMart to find the best fit for your application. Roxburgh EMC offers a comprehensive range of EMC-suppression devices suited for advanced industrial requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The inductance rating of this model is 2.9 mH, making it suitable for phase angle control applications and mains voltage circuits.

The maximum DC resistance of this inductor is 500 mΩ, which helps minimize energy loss during operation.

The inductor has a diameter of 32 mm, a height of 13 mm, and a length of 40 mm, with a lead diameter of 0.56 mm.

This model operates within a temperature range of -40°C to 125°C, allowing it to function in various environmental conditions.

The core material of this inductor is composite iron powder, which provides stable inductance performance.

The lead mount termination features stripped and tinned leads, ensuring easy and reliable integration onto printed circuit boards.

The SF1122 is UL approved and compliant with BS800 interference limits, making it suitable for applications requiring EMC compliance.

The lead pitch for this inductor is 5 mm, allowing for secure mechanical and electrical connections during installation.

It is designed for electromagnetic interference (EMI) and radio frequency interference (RFI) suppression in electronic systems, particularly in industrial and power electronics applications.

The inductance tolerance of the SF1122 is 20%, ensuring it meets performance specifications during operation.

The toroidal configuration minimizes stray magnetic fields, making it ideal for environments where electromagnetic compatibility (EMC) is critical.

The country of origin for this inductor is India.
