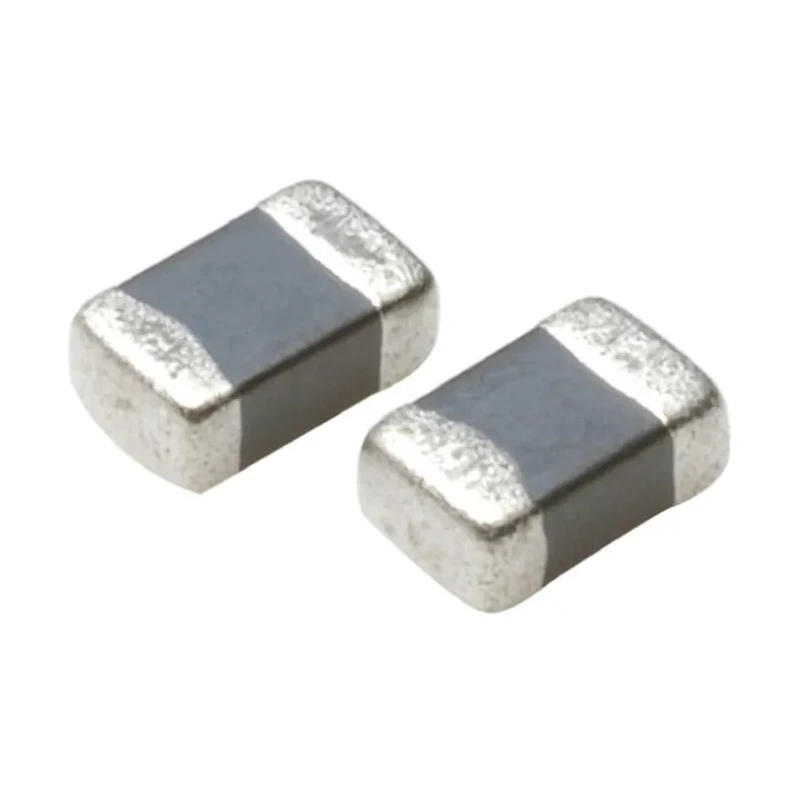

TDK 0805 Shielded Multilayer Surface Mount Inductor 100μH ±10% 2mA Idc Ferrite Core MLF2012C101KT000

TDK MLF2012C101KT000 is a shielded multilayer surface mount inductor offering 100μH inductance with ±10% tolerance. It uses a ferrite core which improves magnetic performance and is magnetically shielded to minimize electromagnetic interference. This inductor is designed in a compact 0805 surface mount package with dimensions of 2mm length, 1.25mm height, and 1.25mm depth, making it suitable for dense PCB layouts.

The device supports a maximum DC current of 2mA with a maximum DC resistance of 3.1Ω ensuring efficient operation at low current levels. It is RoHS compliant, moulded, and constructed with multilayer technology which provides excellent heat resistance, compatibility with lead-free soldering, and reliability through monolithic construction.

The operating temperature range is from -40°C to 85°C, allowing usage in a wide variety of industrial, commercial, and consumer electronic applications including digital cellular phones, tuners, personal computers, and audio equipment. The maximum self-resonant frequency is rated at 12MHz with a minimum quality factor of 25, enabling good performance in high frequency signal lines and filtering applications.

This inductor is manufactured in Japan and adheres to industry standards making it a dependable component for electronics design and manufacturing. The compact size combined with magnetically shielded multilayer construction makes it ideal for space sensitive and signal-critical circuit board applications.

This inductor features a ferrite core for efficient magnetic performance. It supports a maximum DC current of 2mA suitable for low current applications. Compact 0805 package size with 2mm length, 1.25mm height, and 1.25mm depth facilitates PCB space saving.

Magnetically shielded multilayer construction enhances signal integrity and reduces EMI. Inductance tolerance is ±10%, ensuring reliability in various circuit designs. Maximum DC resistance is 3.1Ω, maintaining low power losses in circuits.

RoHS compliant and manufactured with materials suitable for lead-free and reflow soldering processes. Operating temperature range from -40°C to 85°C supports diverse environmental conditions. Typical application includes signal lines in digital cellular phones, tuners, audio devices, and computers.
