TDK 1 nF 50V DC ±5% C0G Multilayer Ceramic Capacitor Surface Mount CGA3E2NP01H102J080AA

TDK CGA3E2NP01H102J080AA is a precision 1 nanofarad Multilayer Ceramic Capacitor (MLCC) designed for surface mount applications, featuring a voltage rating of 50 V DC and a capacitance tolerance of ±5%. This capacitor utilizes C0G dielectric material, also known as Class I, which provides excellent stability and minimal capacitance variation with temperature and voltage changes.

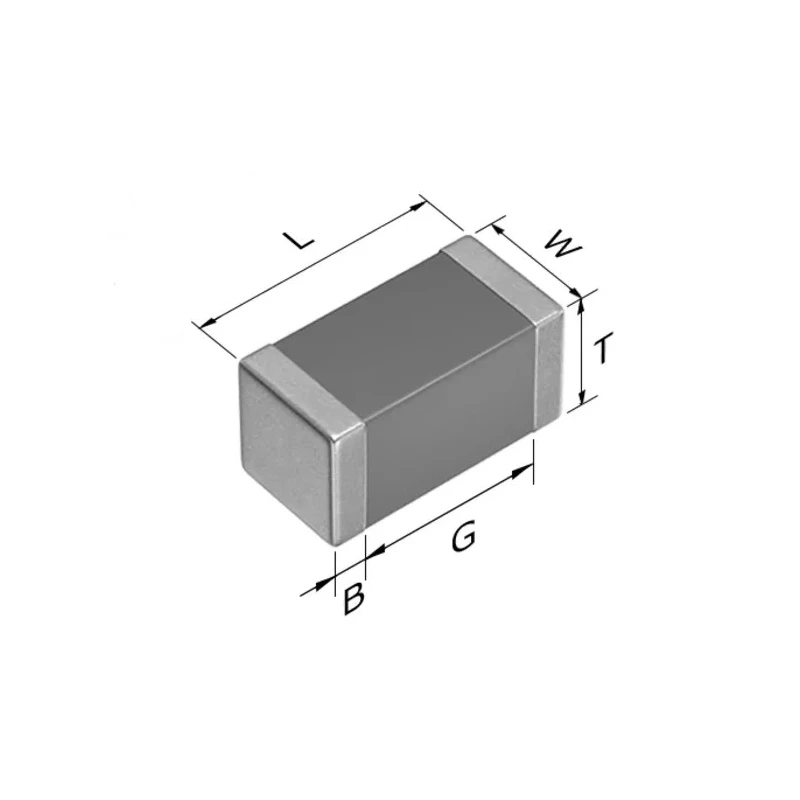

Measuring 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, this MLCC comes in the industry-standard 0603 package size which facilitates high-density PCB layouts. The capacitor supports a wide operating temperature range from -55°C to a maximum of 150°C, making it especially suitable for harsh environmental conditions.

Conforming to the automotive quality standard AEC-Q200, the capacitor is designed for high reliability in automotive electronics, especially within engine compartments where temperature extremes are common. It is also suited for peripheral circuits of modern high-performance devices using Insulated Gate Bipolar Transistors (IGBT), Silicon Carbide (SiC), and Gallium Nitride (GaN) components operated at elevated temperatures.

The surface mount termination and Tape & Reel packaging make it compatible with automated pick-and-place assembly processes, enhancing manufacturing efficiency.

Applications of this capacitor include sensor modules, smoothing and decoupling for circuits exposed to temperature stress, and other electronic devices requiring reliable, stable capacitance in compact form factors.

Manufactured in Japan, TDK's high-quality standards ensure excellent DC bias properties and overall durability of this MLCC. This capacitor features a 1 nanofarad capacitance with a voltage rating of 50 V DC. It uses stable C0G dielectric material ensuring minimal capacitance change over temperature.

Capacitance tolerance is ±5% for precise performance. Package size is 0603 (1.6 mm x 0.8 mm x 0.8 mm) suitable for compact PCB layouts. The capacitor is compliant with automotive standard AEC-Q200. Operates reliably at high temperatures up to 150°C with a minimum operating temperature of -55°C.

Termination and mounting are surface mount type designed for Tape & Reel packaging. Ideal for automotive engine rooms, sensor modules, and high-temperature peripheral circuits. Manufactured in Japan ensuring quality and consistency.
