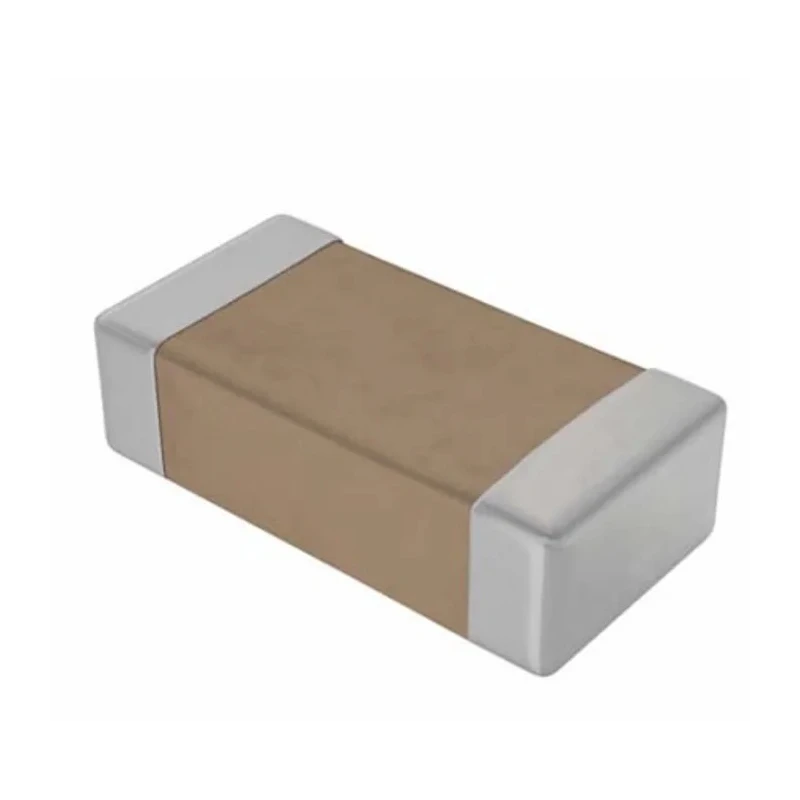

AVX 100 nF Multilayer Ceramic Capacitor, 50V dc, ±5 %, Surface Mount 12065C104JAT2A

AVX 12065C104JAT2A is a multilayer ceramic capacitor with a capacitance of 100 nF and rated for 50V DC voltage, designed for surface mount technology (SMT) applications. Its ±5 % capacitance tolerance ensures performance reliability within specified electrical parameters. This capacitor utilizes X7S dielectric, offering stable capacitance across a temperature range from -55°C to 125°C, making it suitable for a variety of industrial, consumer electronics, and power management use cases.

The device is housed in a compact 1206 package (length 3.2 mm, width 1.6 mm, height 0.94 mm), optimized for high-density PCB layouts. Its termination type is surface mount, designed to facilitate automated assembly and robust solder joint formation. The capacitor comes packaged on a reel to support efficient insertion into manufacturing workflows that rely on automated placement.

X7S dielectric material is classified as EIA Class 2 and is known for excellent EMI filtering capabilities. This makes the capacitor ideal for applications requiring noise suppression and high capacitance values in a minimal footprint. The part does not meet automotive standard certifications and should be used accordingly in non-automotive environments.

This multilayer ceramic capacitor is commonly employed in power electronics circuits, consumer devices, and industrial systems where reliability and thermal stability are critical. Its performance characteristics make it suitable for a broad range of applications including voltage smoothing, decoupling, and EMI noise reduction.

Compact 1206 package suitable for high-density circuits. X7S dielectric provides temperature stability from -55°C to 125°C. Termination designed for reliable surface mount soldering. Reel packaging facilitates automated PCB assembly.

EIA Class 2 suppression class ensures effective EMI filtering. Ideal for power electronics, consumer devices, and industrial applications. Manufactured to be free of automotive standard certification. Length of 3.2 mm, width 1.6 mm, and height 0.94 mm for precise board layout.
