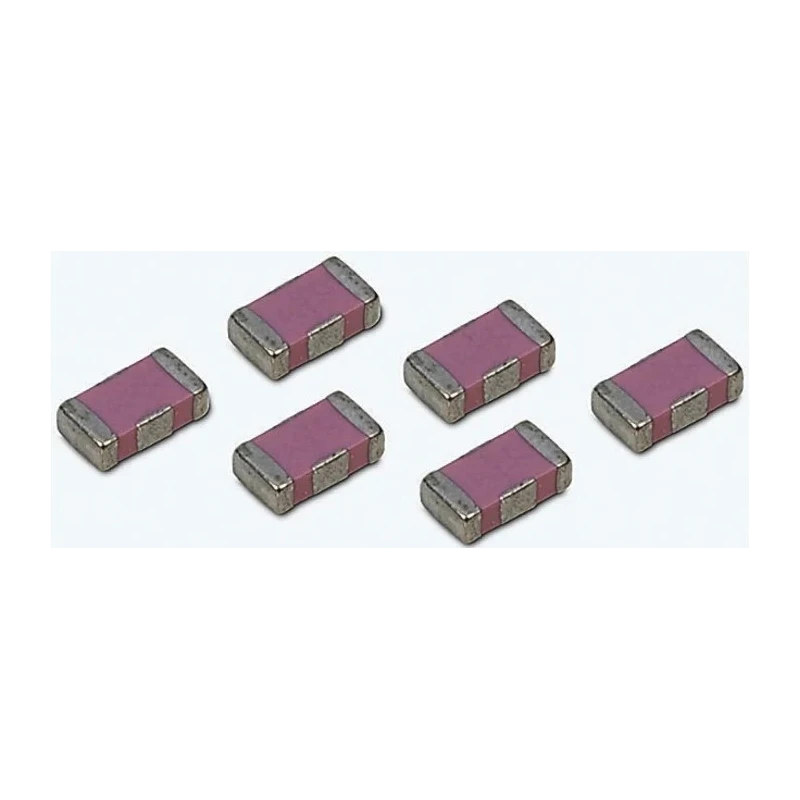

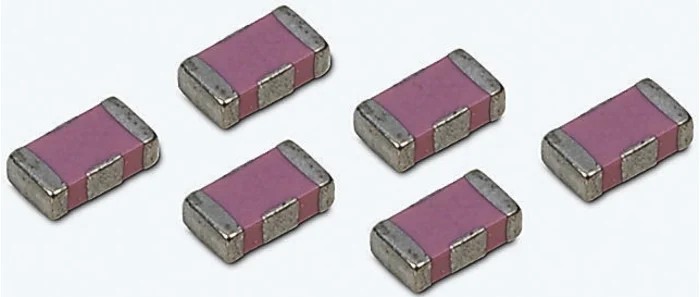

AVX 2.2 nF 50V dc Multilayer Ceramic Capacitor, 1206 Package, Surface Mount, X7R Dielectric, W3F15C2228AT1A

AVX W3F15C2228AT1A is a high-quality 2.2 nF Multilayer Ceramic Capacitor designed for surface mount applications. Featuring a 1206 package and X7R dielectric material, this capacitor operates reliably at 50V DC and offers a capacitance tolerance of -20 to +50%. It has a compact form factor with dimensions of 3.2mm length, 1.6mm width, and 1.27mm height, making it ideal for dense PCB layouts.

This capacitor is constructed using stacked technology that provides low Equivalent Series Resistance (ESR) and low parallel inductance, enhancing its performance in high-frequency circuits. Rated to function across a wide temperature range from -55°C to 125°C, it suits demanding industrial, automotive, and commercial environments.

The product is supplied in a 7-inch reel with embossed tape packaging, facilitating efficient automated pick-and-place assembly processes. Its robust design and reliable specifications make it effective for EMI suppression, signal filtering, noise conditioning, and decoupling in electronic circuits.

Typical applications include industrial electronics, automotive electronics, telecommunications equipment, and consumer electronic devices. The AVX W3F series capacitors are RoHS-compliant, ensuring environmentally responsible manufacture and use.

Precise 2.2 nF capacitance for varied applications. Standard 1206 surface mount package compatible with modern PCB technologies. Wide operating temperature and voltage ratings support diverse environments. Packaged for automated assembly to increase production efficiency.

Suitable for EMI suppression, filtering, and general decoupling needs.

Explore our comprehensive range of Multilayer Ceramic Capacitors to find the ideal component for your electronic design projects. AVX capacitors represent a reliable choice for quality and performance in capacitors for industrial and commercial electronic use.
