| Country of Origin | India |
|---|---|
| Voltage | 100V dc |
| Brand | AVX |
| Height | 0.94mm |
| Length | 3.2mm |
| Model | 12061A100JAT2A |
| Packaging | Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | KGM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 10pF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1206 |
| Dielectric | C0G |
| Suppression Class | Class I |
| AVX 10pF Multilayer Ceramic Capacitor MLCC, 100V dc V, ±5% , SMDBrand | KYOCERA AVX |

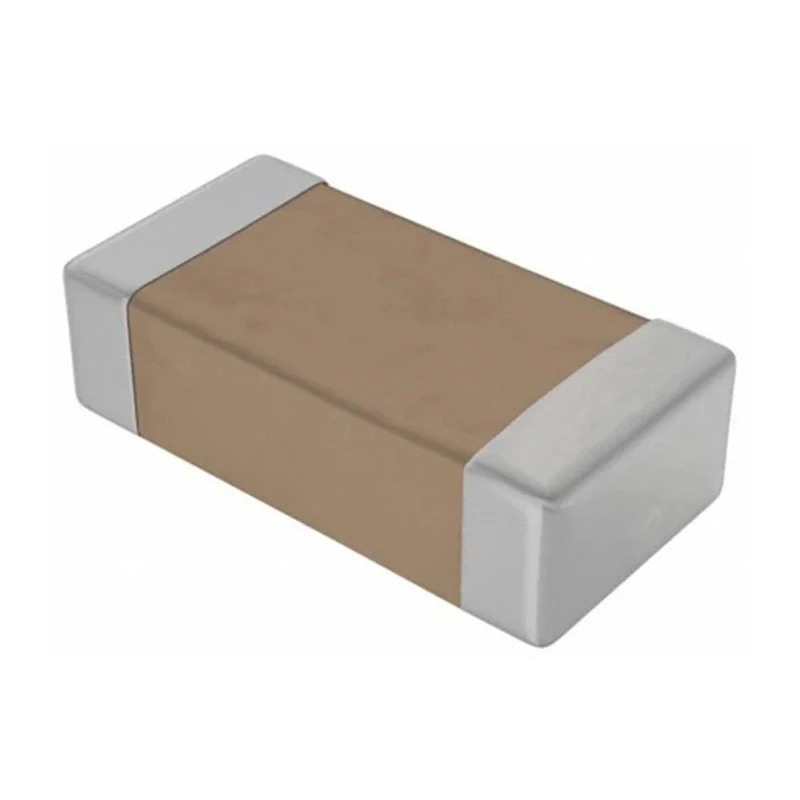

AVX 12061A100JAT2A Multilayer Ceramic Capacitor is a high-precision component designed for electronic applications requiring stable capacitance and high reliability. It features a capacitance of 10 pF with a voltage rating of 100V dc and a tolerance of ±5 %. The capacitor is housed in a standard 1206 surface mount package measuring 3.2mm in length, 1.6mm in width, and 0.94mm in height, facilitating easy integration on compact circuit boards.
This capacitor utilizes the C0G (NP0) dielectric, known for its excellent temperature stability with minimal capacitance change of 0 ±30ppm/°C. It operates reliably over a wide temperature range from -55°C to +125°C, making it suitable for demanding industrial and laboratory applications. The KGM series capacitor is designed for use in power and passive circuit components, with surface mount termination for automated PCB assembly.
Packaged on reel, this AVX Multilayer Ceramic Capacitor supports high-volume manufacturing environments. Its stable Class I suppression characteristics provide reliable performance in filtering, timing, and high-frequency circuits. Although it does not meet automotive standards, it is ideal for use in commercial, industrial, and electronics manufacturing sectors.
Capacitance of 10 pF suitable for high-frequency applications. Voltage rating of 100V dc provides robust electrical performance. ±5 % tolerance ensures precise capacitance control. Surface mount type facilitates compact PCB assembly.
1206 package dimensions (3.2mm x 1.6mm x 0.94mm) standard for reliability. C0G (NP0) dielectric offers superior temperature stability. Operating temperature range from -55°C to +125°C for harsh environments. Series KGM, suitable for industrial and automotive applications (non-automotive standard).
Packaged on reel to support automated manufacturing processes.
This component serves a wide range of industrial applications including electronics manufacturing, laboratory instrumentation, HVAC systems, and other industrial equipment requiring stable capacitance in compact surface mount formats. Discover more capacitors and passive components in EnvMart’s electronics catalogue.
