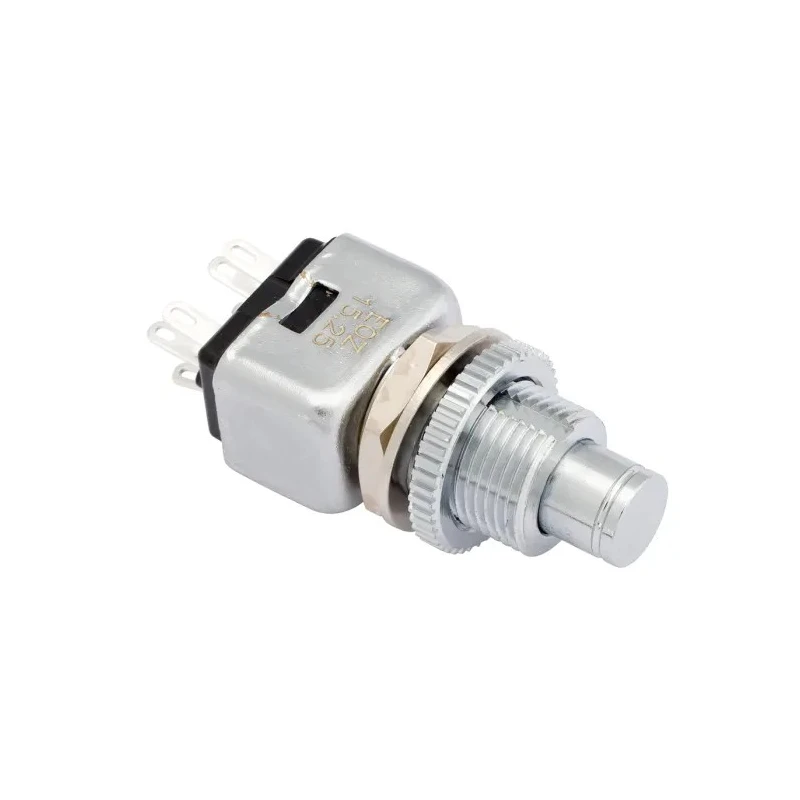

EOZ DJET Series Momentary Push Button Switch Panel Mount 10.2 mm Cutout DPDT IP65 IP67 08.17513.21

EOZ 08.17513.21 DJET Series momentary push button switch is engineered for robust panel mounting applications requiring a 10.2 mm cutout diameter. This double pole double throw (DPDT) switch features a silver cap actuator designed for precision control in industrial and automation systems.

The unit is front panel sealed to IP65 and IP67 standards, making it suitable for demanding indoor and outdoor environments. The secure panel mount installation uses a fixing nut from the back, ensuring the switch stays firmly in place without over-tightening from the front. The switch offers a positive snap-action mechanism with an expected electrical life of 100,000 operations, guaranteeing long-term durability.

Designed for operating temperature ranges from -40°C to 85°C, this switch performs reliably across harsh temperature conditions common in military, medical, telecommunications, and power supply applications. The solder terminal type facilitates straightforward wiring and assembly in compact spaces.

EOZ DJET Series switches meet RoHS environmental compliance, demonstrating adherence to international hazardous substance regulations. The switch’s IP rating ensures defense against dust ingress and water immersion, vital for industrial automation, control panels, and equipment exposed to challenging conditions.

Manufactured in France, these switches are recognized for high quality and reliability. Suitable for use in control systems, telecommunications gear, avionics, and other professional equipment, this momentary push button switch offers dependable performance with rugged design.

Silver actuator color providing a professional appearance. Cap-style actuator offering easy operation. Switch contact current rated at 50 mA ensuring reliable signal control. Panel mount type with secure fastening using a fixing nut from the back.

Operates reliably in temperatures from -40°C to 85°C. Front panel sealed to IP67 on 10 mm version suitable for outdoor applications. Momentary switch operation with electrical life rated to 100,000 operations. Complies with RoHS standards for environmental safety.

Manufactured in France ensuring quality and performance. Explore more high-quality Push Button Switches and components in our Electronics & Electricals category at EnvMart for your industrial and automation projects.
