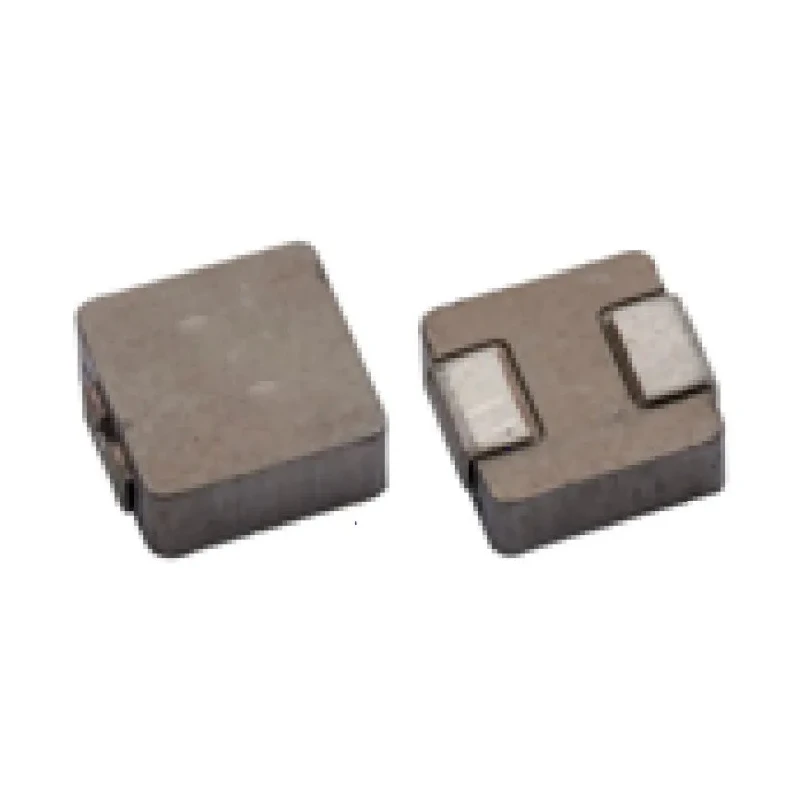

Abracon Shielded Surface Mount Inductor with Iron Core 10 μH Flat Wire Winding ±20 % 7.8 A Idc ASPI-1040HI-100M-T05

Abracon ASPI-1040HI-100M-T05 is a shielded surface mount inductor with an iron core, designed specifically for reliable performance in high current and compact electronic applications. Featuring a 10 μH inductance with a ±20 % tolerance, this component is optimized for use in DC/DC converters, power supplies, and other precision electronic circuits requiring stable inductance and high saturation current.

The inductor employs a flat wire winding construction, which reduces DC resistance to a maximum of 30 mΩ, minimizing power loss during operation. With a maximum DC current capacity of 7.8 A, it supports demanding power applications such as notebook, netbook, desktop, and server power supplies. Its molding and shielding provide mechanical robustness and electromagnetic interference reduction, suitable for compact PCB surface mounting. The package dimensions are 11.5 mm in length, 4 mm in height, and 4 mm in depth, aligning with modern electronic packaging standards.

Engineered to tolerate operating temperatures from -55 °C up to 125 °C, this inductor ensures dependable performance across varied thermal environments. The termination style is surface mount, compatible with standard reflow soldering processes. Packaging in tape and reel format supports efficient automated assembly, making it ideal for industrial electronics manufacturing.

The RoHS compliant design ensures environmental safety and compliance with global electronic component directives. Its iron core material provides consistent magnetic properties essential for power regulation and signal integrity in sensitive electronic equipment.

Iron core construction ensures high magnetic permeability and efficient inductance. Flat wire winding design for low DC resistance and minimal power loss. Compact surface mount package with molding for enhanced mechanical protection.

Inductance tolerance of ±20 % suitable for various power regulation applications. Maximum DC current rating of 7.8 A accommodates high-current circuits. RoHS compliant and suitable for reflow soldering on PCB assemblies.

Operating temperature range from -55 °C to 125 °C for robust performance. Dimensions 11.5 mm length, 4 mm height, and 4 mm depth for compact circuit designs. Packaging supplied in tape & reel format for automated assembly lines.

This Surface Mount Inductor is widely used in industrial, electronics manufacturing, telecommunications, and computing hardware sectors. It offers reliability and performance for power regulation, noise suppression, and energy storage in complex electronic circuits.
