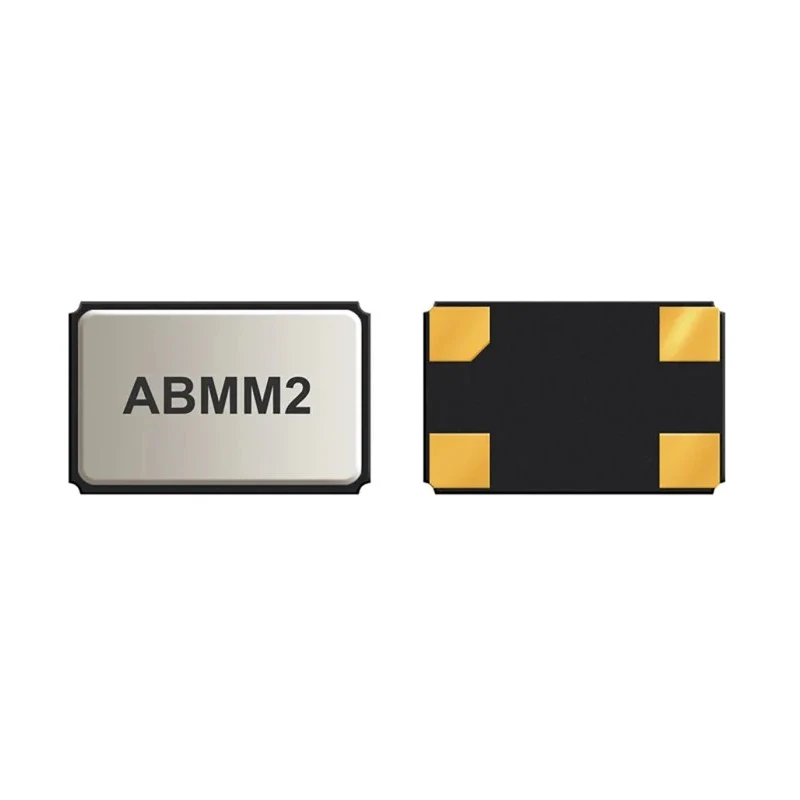

Abracon 10 MHz Crystal Unit Surface Mount 4-Pin 6 mm x 3.5 mm x 1.2 mm ±20 ppm Frequency Tolerance ABMM2-10.000MHZ-E2-T

Abracon ABMM2-10.000MHZ-E2-T 10 MHz Crystal Unit is a highly reliable surface mount device designed for precise frequency control in electronic circuits. It features a compact and seam sealed ceramic package with low height of 1.2 mm, making it ideal for space-constrained PCB layouts. The 4-pin mounting configuration on the surface enables easy assembly and soldering on modern electronics.

This crystal unit supports a standard frequency of 10 MHz and maintains high frequency stability with ±20 ppm tolerance. It operates efficiently in temperature ranges from -20°C up to 70°C, suitable for industrial and commercial applications.

With a load capacitance of 18 pF and series resistance of 50 Ω, this component delivers accurate oscillation signals essential for timing applications in devices like computers, modems, microprocessors, communication systems, and test equipment. The tape and reel packaging facilitates automated assembly processes.

The ceramic package is seam sealed for enhanced durability, ensuring consistent performance under varied operating conditions. Compliance with RoHS and REACH standards confirms its environmental safety.

This crystal unit features a standard frequency of 10 MHz. It has a low profile ceramic package measuring 6 x 3.5 x 1.2 mm. Surface mount 4-pin configuration supports versatile PCB assembly. ±20 ppm frequency tolerance ensures precision timing.

Operating temperature range from -20°C to 70°C for reliable function. Specified load capacitance at 18 pF and series resistance at 50 Ω. RoHS and REACH compliant for environmental safety compliance. Seam sealed ceramic package for enhanced reliability.

Ideal for computers, modems, microprocessors, communication and test equipment.

This Abracon crystal unit is a critical component for electronics requiring stable oscillation signals. Its precise frequency characteristics and robust construction make it suitable for a wide range of industrial and commercial electronic instrumentation. Explore more Crystal Units and related components in the Electronics & Electricals category at EnvMart for diverse application needs.
