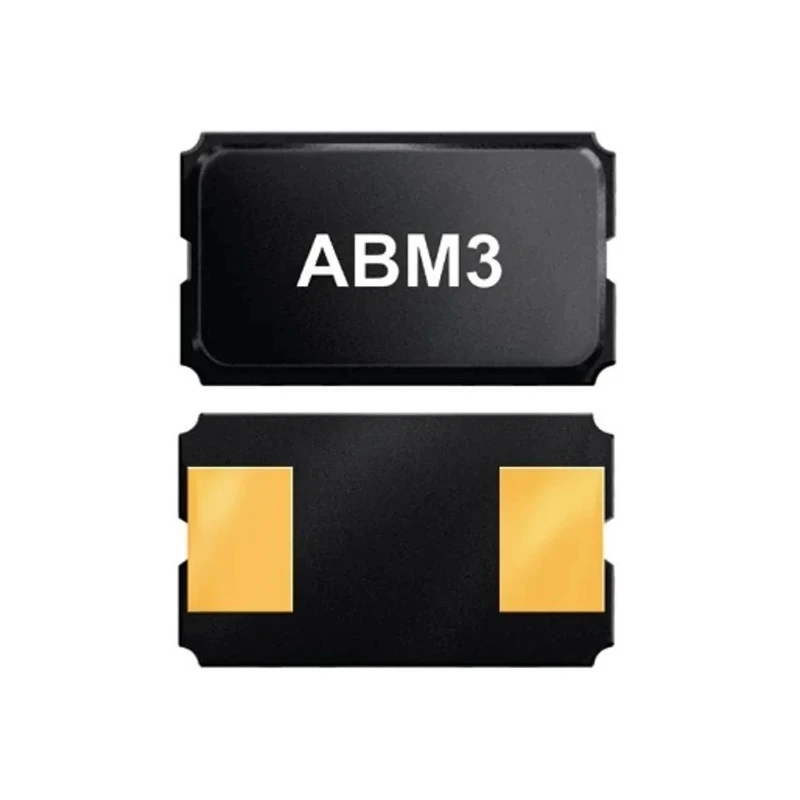

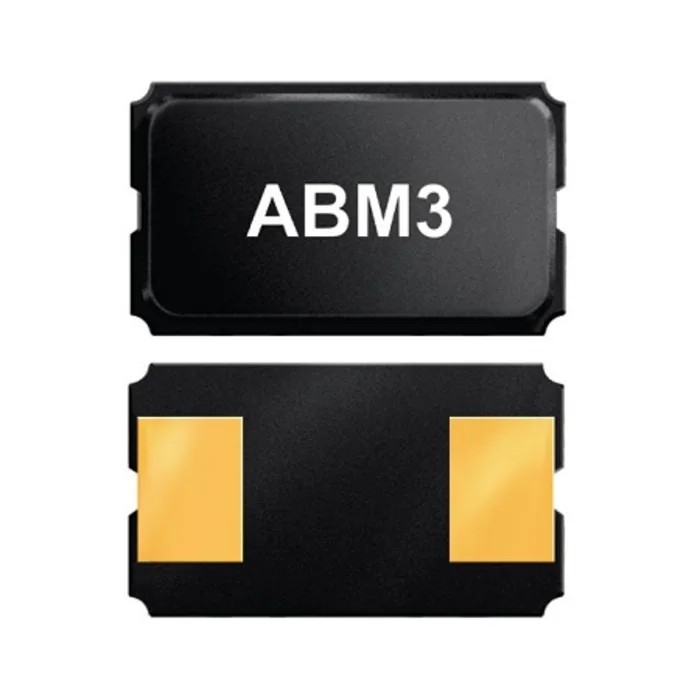

Abracon 10 MHz Crystal Unit ±50 ppm Surface Mount 2-Pin 1.3 mm Height 5 mm Length 3.2 mm Width ABM3-10.000MHZ-D2Y-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.3mm |
| Length | 5mm |
| Model | ABM3-10.000MHZ-D2Y-T |
| Packaging | Tape & Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3 |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 10MHz |
| Load Capacitance | 18pF |
| Series Resistance | 60Ω |
Key Features
- Standard frequency of 10 MHz ensures precise oscillation.
- Surface mount package type allows compact PCB designs.
- Hermetically sealed ceramic package offers high reliability.
- Operating temperature range from -10°C to 60°C suits various environments.
- Series resistance is 60 ohms, suitable for communication applications.
- Pin count two simplifies mounting and electrical connection.
- Tape and reel packaging facilitates automated assembly.
- Dimensionally compact with 5 mm length, 3.2 mm width, and 1.3 mm height.
Product Description
Abracon ABM3-10.000MHZ-D2Y-T 10 MHz Crystal Unit is a precision frequency control device designed for surface mount applications. This 2-pin crystal unit features a ±50 ppm frequency tolerance with an 18 pF load capacitance, making it suitable for high stability timing and frequency control requirements.
The hermetically sealed ceramic surface mount package ensures excellent protection against moisture and mechanical stress, providing long-lasting reliability in electronic circuits. Its compact size of 5 mm length, 3.2 mm width, and 1.3 mm height is optimized for space-constrained PCB layouts.
With an operating temperature range from -10°C to 60°C, this crystal unit is suitable for various industrial and commercial electronics, including cellular telephones, pagers, communication systems, and PCMCIA wireless applications. The equivalent series resistance of 60 ohms contributes to stable oscillation characteristics.
The unit supports RoHS-compliant reflow soldering processes and is packaged in tape and reel format to facilitate automated PCB assembly lines. Its 2-pin configuration enhances ease of mounting while maintaining minimal footprint.
Standard frequency of 10 MHz ensures precise oscillation. Surface mount package designed for compact PCB integration. Hermetically glass-sealed ceramic package offers moisture protection and reliability. Operating temperature range from -10°C to 60°C for diverse electronic environments.
Equivalent series resistance of 60 ohms for optimal frequency stability. Tape and reel packaging supports automated manufacturing. Compact dimensions: Length 5 mm, Width 3.2 mm, Height 1.3 mm. RoHS compliant for environmentally safe usage.
Widely used in communication devices and wireless applications.
Designed for industrial, laboratory, communication, and consumer electronics, the Abracon ABM3-10.000MHZ-D2Y-T provides reliable frequency control in surface mount technology formats. Its precision and durability make it a preferred choice for manufacturers requiring stable timing references in small form factors.
Discover a wide selection of electronic components including Crystal Units at EnvMart to support your engineering and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 10 MHz, ensuring precise oscillation for various applications.
This model has compact dimensions of 5 mm in length, 3.2 mm in width, and 1.3 mm in height, making it suitable for space-constrained PCB layouts.
The operating temperature range for this unit is from -10°C to 60°C, which accommodates various industrial and commercial environments.
The load capacitance of this crystal unit is 18 pF, which is essential for its frequency stability.
It is packaged in tape and reel format, which facilitates automated assembly processes in PCB manufacturing.
The equivalent series resistance of this model is 60 ohms, contributing to its stable oscillation characteristics.
This unit features a 2-pin configuration, simplifying the mounting and electrical connection process.
Yes, the ABM3-10.000MHZ-D2Y-T is RoHS compliant, ensuring it meets environmental safety standards.
This model is designed for surface mount applications, optimizing it for compact PCB integration.
It is commonly used in communication devices, including cellular telephones, pagers, and PCMCIA wireless applications.
The crystal unit features a hermetically sealed ceramic package that offers excellent protection against moisture and mechanical stress, enhancing reliability.
This model is part of the ABM3 series, which is known for precision frequency control in surface mount technology formats.
