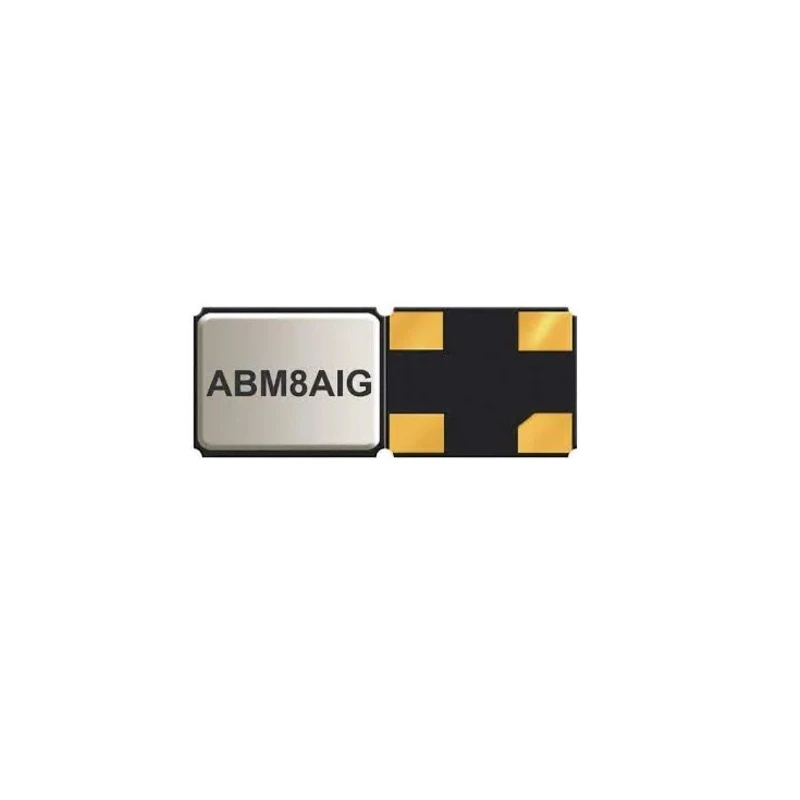

Abracon 10 MHz Surface Mount Ceramic Package Crystal ±50 ppm Frequency Tolerance 4-Pin 3.2mm x ABM8AIG-10.000MHZ-12-2Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.8mm |
| Length | 3.2mm |
| Model | ABM8AIG-10.000MHZ-12-2Z-T3 |
| Packaging | Tape & Reel |
| Width | 2.5mm |
| Mount Type | Surface |
| Series | ABM8AIG |
| Maximum Operating Temperature | 85°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 10MHz |
| Load Capacitance | 12pF |
| Series Resistance | 100Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- This crystal has a standard frequency of 10 MHz for precise oscillation.
- It utilizes a surface mount technology for easy PCB integration.
- The package is hermetically sealed ceramic ensuring durability and reliability.
- Offers frequency stability up to ±100 ppm over operating temperature range.
- Suitable for automotive and industrial grade applications including infotainment and GPS.
- Series resistance is 100 Ω supporting stable electrical performance.
- Operating temperature range is from -40°C up to 85°C with Automotive Grade 1 tested up to 125°C.
- Compliant with RoHS and AEC-Q200 automotive standards.
Product Description
Abracon ABM8AIG-10.000MHZ-12-2Z-T3 is a high-quality 10 MHz surface mount crystal designed with a compact hermetically sealed ceramic package (3.2mm x 2.5mm x 0.8mm) featuring 4 pins. It ensures precision timing with ±50 ppm frequency tolerance and ±100 ppm frequency stability over temperature, ideal for demanding automotive and industrial applications.
Constructed to withstand harsh environments with operating temperature from -40°C to 85°C, and automotive grade operation certified up to 125°C. The series resistance of 100 Ω assures stable and reliable electrical characteristics, essential for applications such as infotainment systems, GPS navigation, advanced driver-assistance systems (ADAS), and LiDAR technology.
The product complies with AEC-Q200 automotive qualifications and RoHS standards, reflecting its quality and environmental compliance. Packaged on tape and reel for efficient assembly and production line integration, it suits high-volume manufacturing needs.
Standard frequency of 10 MHz providing precise timing. Surface mount package enhances ease of installation on PCBs. Sealed ceramic package provides robust environmental protection. Automotive certified for durability in demanding conditions.
Compact size supports space-constrained designs. Frequency tolerance and stability ensure reliable signal generation. Compliance with RoHS and AEC-Q200 standards. Series resistance and pin count optimize electrical performance.
This crystal unit is well suited for industrial, automotive electronics, telecommunications, and embedded system applications requiring stable and precise frequency sources. Its reliability in wide temperature ranges and automotive certification make it an excellent component for modern electronic designs.
Explore more Abracon Crystal Units and related electronic components in EnvMart's extensive catalog for quality and performance you can trust.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 10 MHz, providing precise timing for various applications.
This model has dimensions of 3.2mm in length, 2.5mm in width, and 0.8mm in height.
The operating temperature range for this crystal is from -40°C to 85°C, with automotive grade certification allowing operation up to 125°C.
The frequency tolerance of this crystal is ±50 ppm, ensuring reliable signal generation.
It is packaged on tape and reel, which facilitates efficient assembly and production line integration.
The series resistance of this model is 100 Ω, which supports stable electrical performance.
Yes, it complies with RoHS standards and has been tested to meet AEC-Q200 automotive qualifications.
The load capacitance for this crystal unit is 12 pF, which is essential for its operation in various circuits.
This crystal uses a surface mount type, which allows for easy integration onto PCBs.
It is suitable for automotive and industrial applications, including infotainment systems, GPS navigation, and advanced driver-assistance systems (ADAS).
This crystal is certified as Automotive Grade 1, allowing operation in environments from -40°C to +125°C.
The crystal is constructed with a hermetically sealed ceramic package, providing robust environmental protection.
