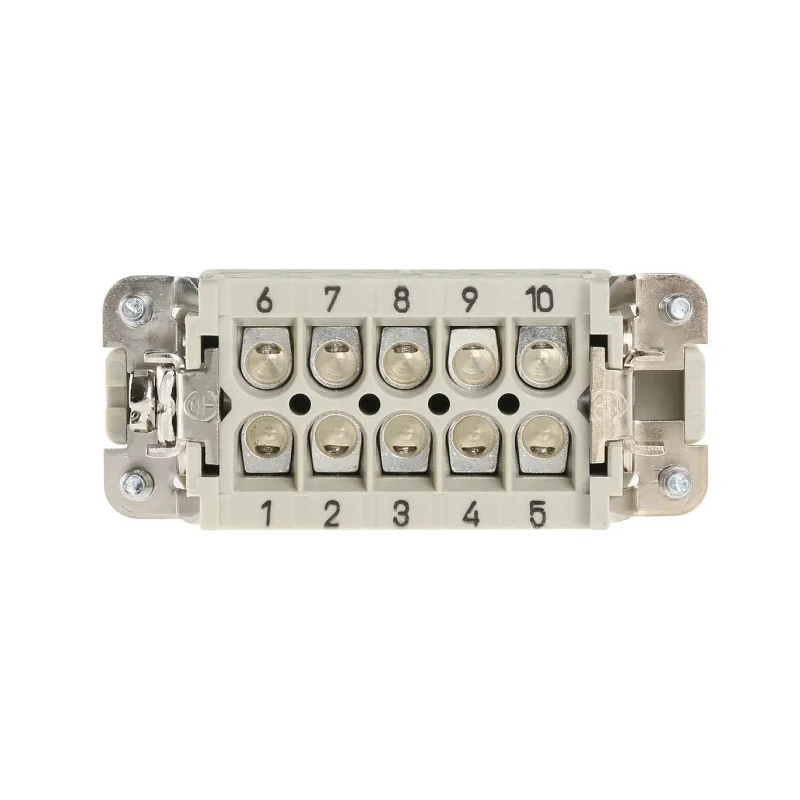

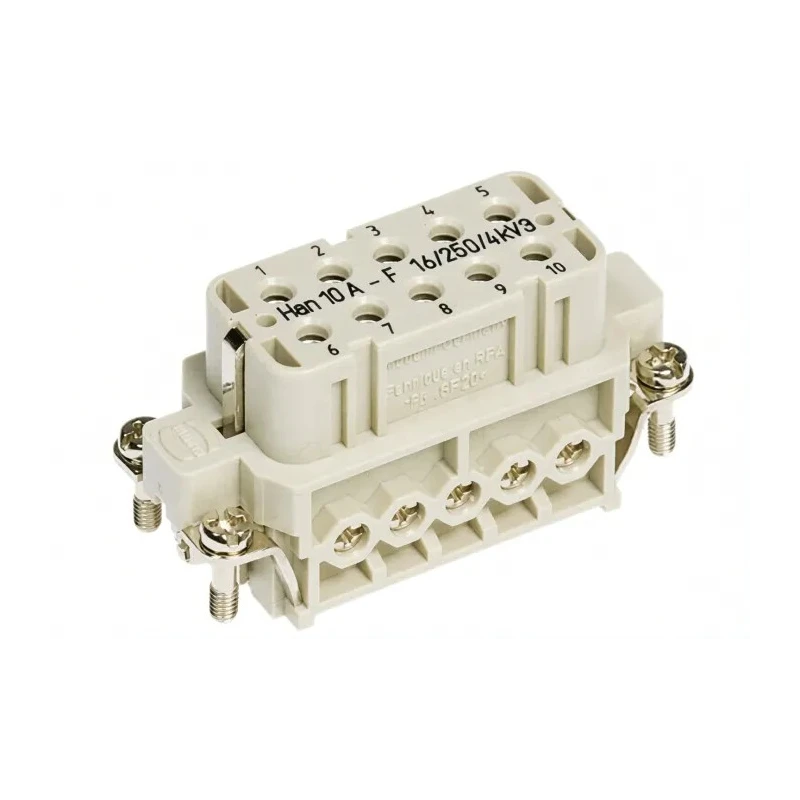

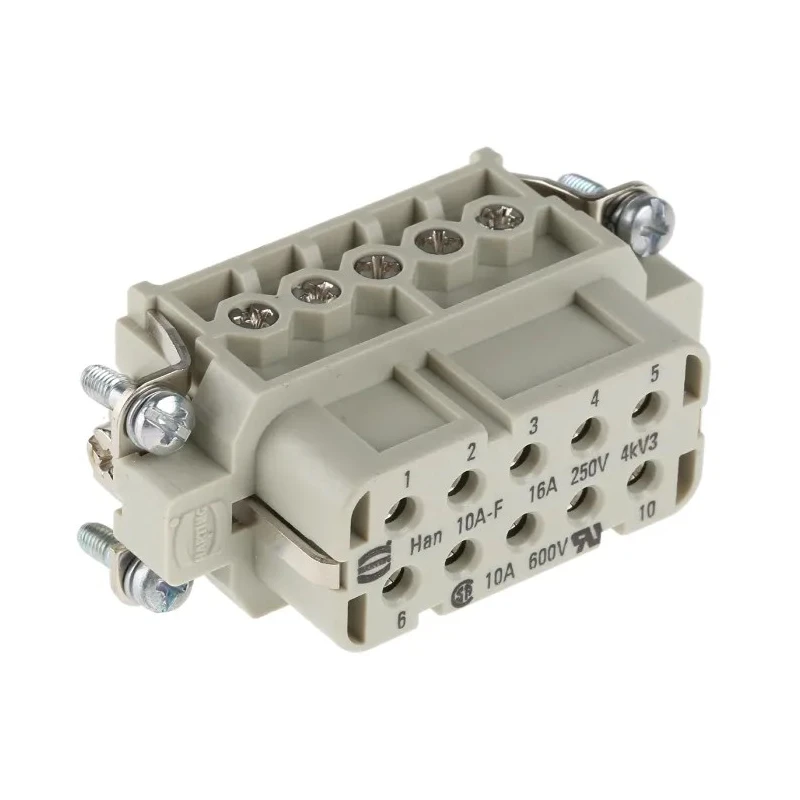

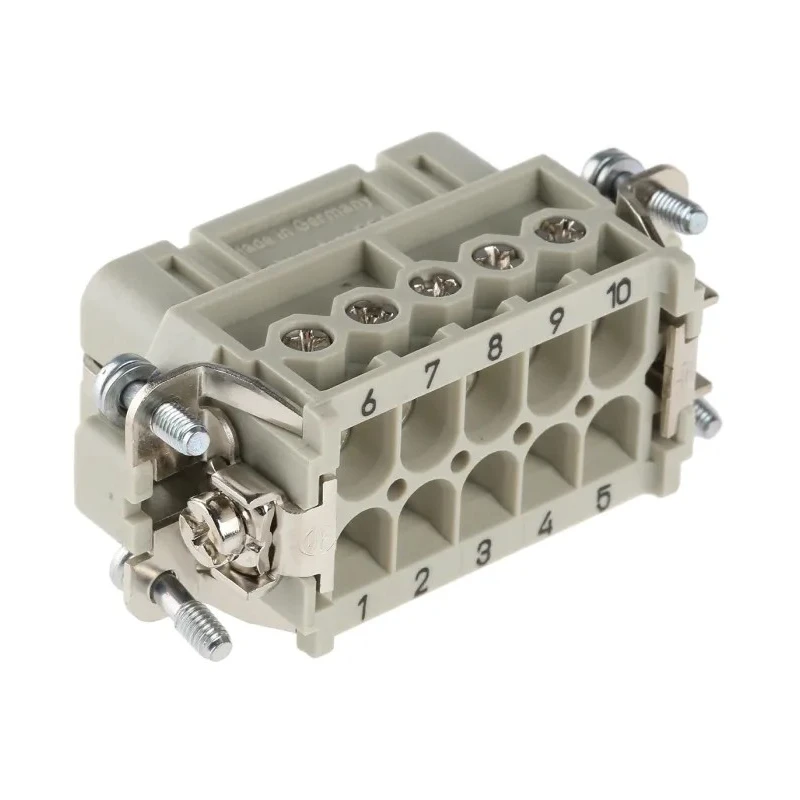

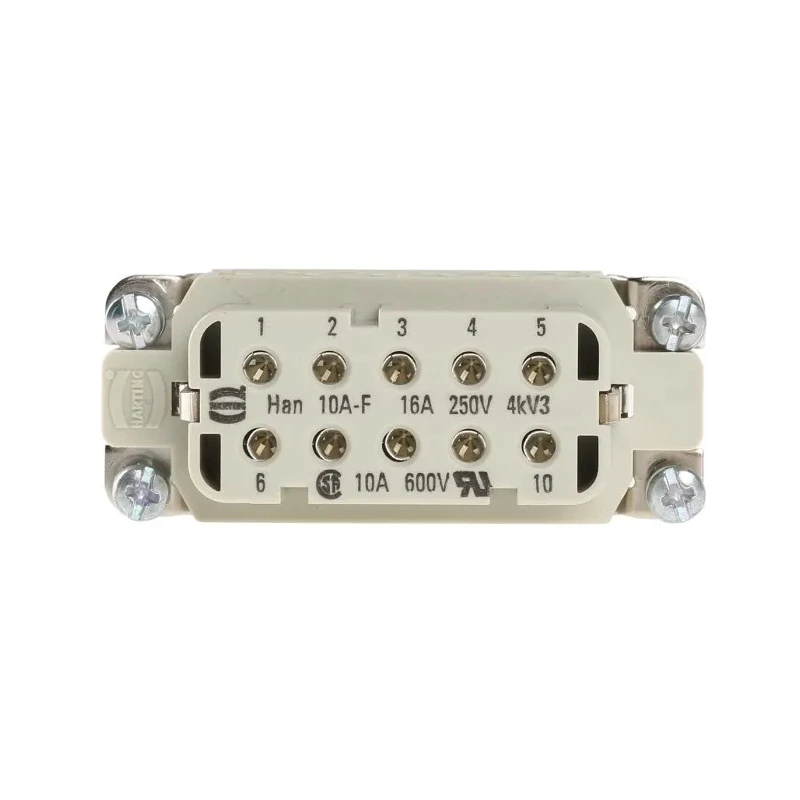

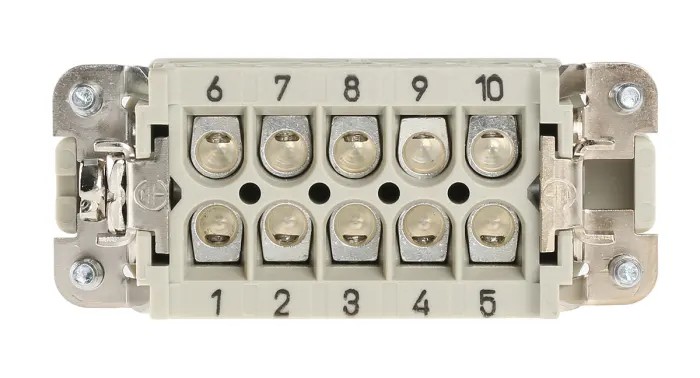

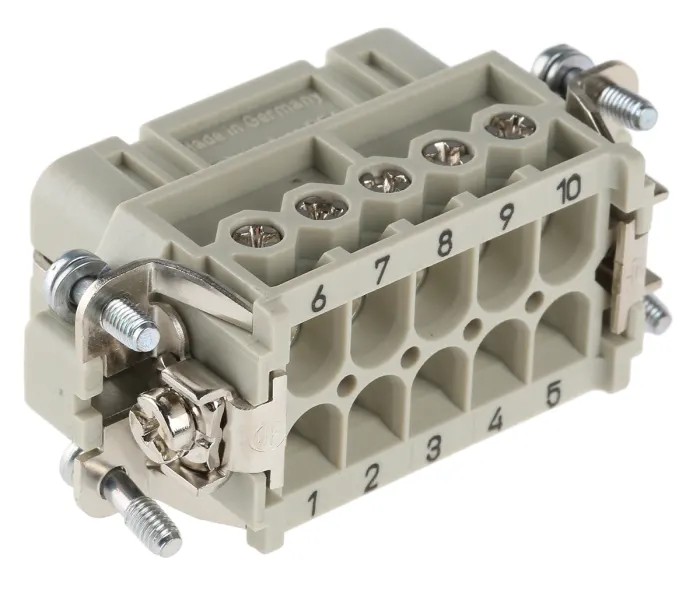

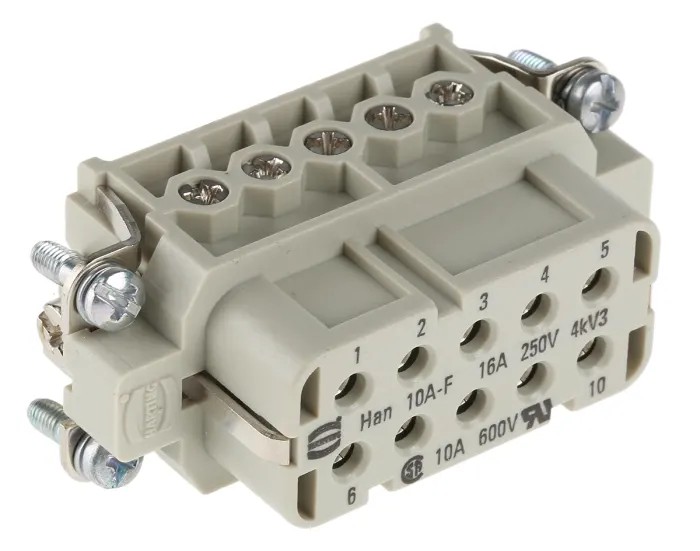

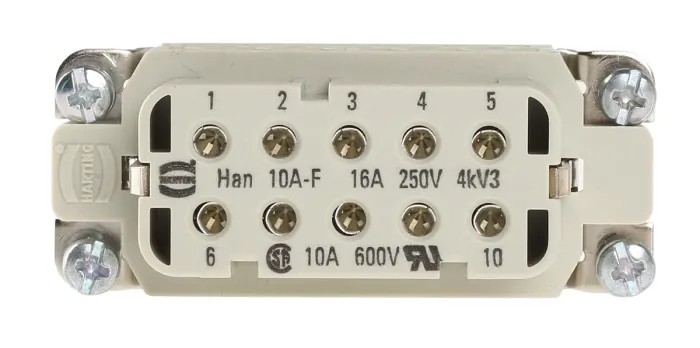

HARTING Heavy Duty Power Connector Insert 16A 600V Han A Series Female 10 Contacts 09200102812
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 600V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Panel |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | Han A |
| Sub Type | Connector Insert |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 10+E |
| Contact Plating | Silver |
| Number of Contacts | 10 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- Rated for 16A current and supporting up to 600V installations.
- Silver-plated copper alloy contacts ensure excellent conductivity and durability.
- Screw termination supports conductors from 0.75 mm² to 2.5 mm² for secure wiring.
- Constructed from polycarbonate for mechanical robustness and resistance to wear.
- Designed for a minimum of 500 mating cycles for frequent connections.
- Panel mount type with straight orientation and protective earth contact.
- Ideal for machine-tool and conveyor power connections in factory automation.
- Operating temperature range from -40°C to +125°C for varied industrial environments.
Product Description
HARTING 09200102812 Heavy Duty Power Connector Insert is engineered for reliable industrial electrical connections, rated at 16A current and 600V voltage, featuring the Han A Series female type with 10 contacts. This insert is ideal for panel mounting in automation and power distribution applications where durability and electrical performance are critical.
Designed with silver-plated copper alloy contacts, it ensures superior conductivity and mechanical wear resistance. The polycarbonate insert material provides robustness, supporting heavy-duty industrial usage and ensuring longevity with a mating durability exceeding 500 cycles.
Screw termination allows for wire sizes from 0.75 mm² up to 2.5 mm², delivering secure and stable connections suitable for various industrial cable types. The insert's straight orientation and integrated protective earth (PE) contact enhance safety and compatibility with standard heavy duty power connector housings.
Operating reliably in temperatures ranging from -40°C to +125°C, this connector insert maintains performance in harsh industrial environments including manufacturing machinery, conveyor systems, and control cabinets.
It offers high insulation resistance above 10¹⁰ Ω and withstands impulse voltages up to 4 kV, meeting rigorous electrical safety requirements. The product is crafted in Romania with strict quality control and aligns with UL, CSA, and SEV approvals.
Rated for 16A current and 600V voltage for medium-power circuits. Silver-plated copper alloy contacts enhance electrical performance and durability. Screw terminations accept 0.75 to 2.5 mm² wire for secure clamping. Polycarbonate insert ensures mechanical strength and longevity.
Designed for over 500 mating cycles for frequent use. Straight orientation with PE contact suited for panel mounting. Operating temperature range from -40°C to +125°C. High insulation resistance and rated impulse withstand enhance safety.
Manufactured in Romania under stringent quality standards. Suitable for industrial, automation, and electrical power distribution applications. Explore the extensive range of heavy duty connectors and accessories available at EnvMart for reliable industrial and control panel installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector insert is rated for 16A current and supports installations up to 600V.
The contacts are made of silver-plated copper alloy, which enhances conductivity and durability.
It supports wire sizes from 0.75 mm² to 2.5 mm² for secure connections.
The operating temperature range is from -40°C to +125°C, making it suitable for varied industrial environments.
It is designed for a minimum of 500 mating cycles, ensuring longevity for frequent connections.
This model is designed for panel mounting with a straight orientation.
It has high insulation resistance above 10¹⁰ Ω and can withstand impulse voltages up to 4 kV, meeting rigorous safety standards.
This insert belongs to the Han A Series, which is designed for heavy-duty applications.
This product is manufactured in Romania under strict quality control standards.
This connector insert is female, designed to fit into corresponding male connectors.
It is ideal for machine-tool and conveyor power connections in factory automation and electrical power distribution.

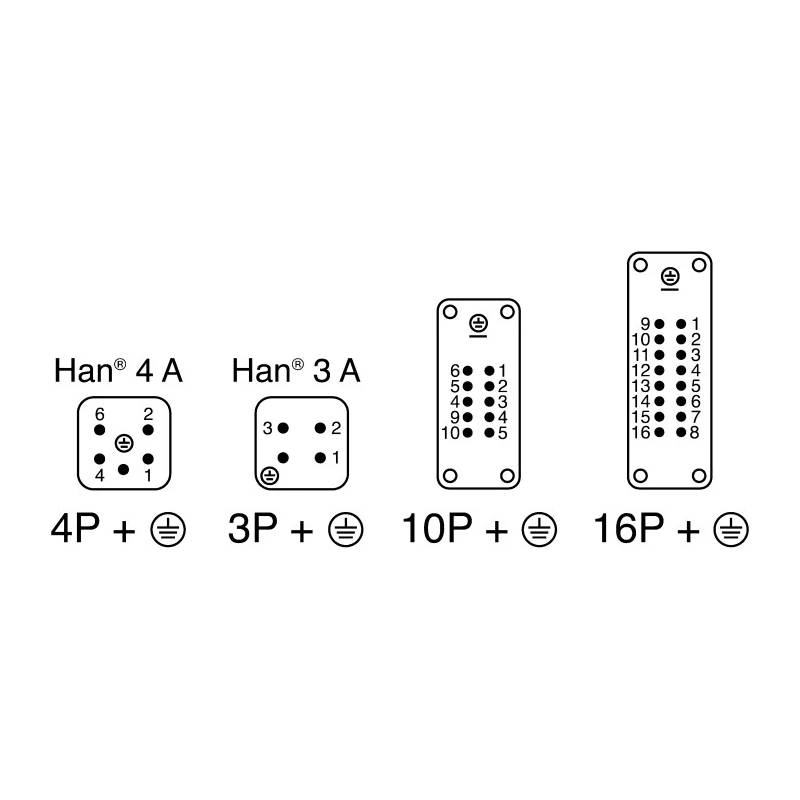

This model features a pole format of 10+E, which includes 10 contacts and an earth contact.
