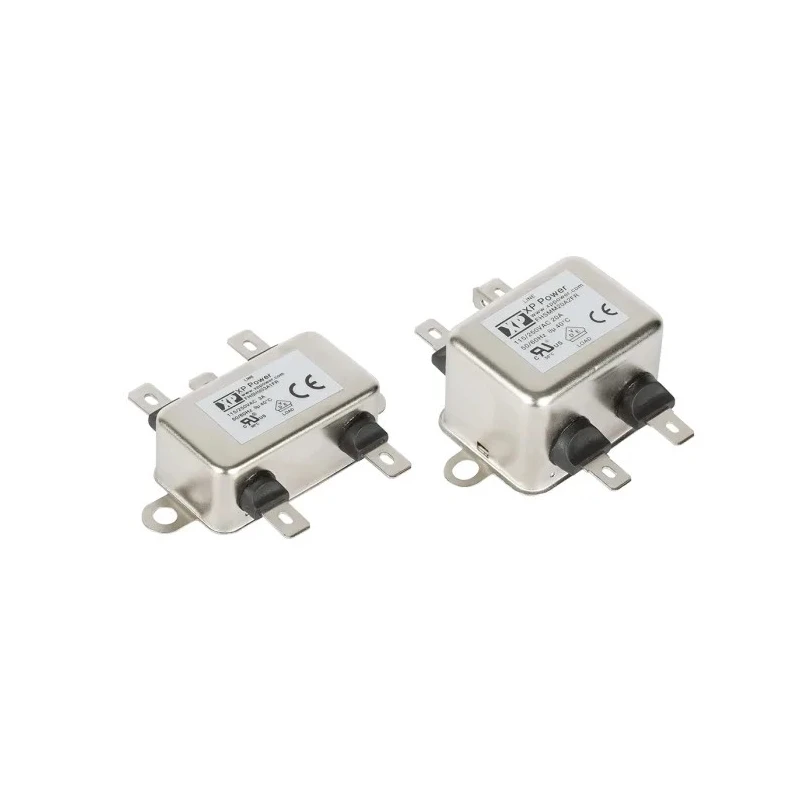

XP Power Chassis Mount EMI Filter 6A 264V AC 0, 400Hz Quick Connect Single Phase FHSM06A1FR FHSMM06A1FR

Free Delivery in India | Lowest Global Shipping Charges

XP Power Chassis Mount EMI Filter 6A 264V AC 0, 400Hz Quick Connect Single Phase FHSM06A1FR FHSMM06A1FR

Name: XP Power Chassis Mount EMI Filter 6A 264V AC 0, 400Hz Quick Connect Single Phase FHSM06A1FR FHSMM06A1FR
Brand: XP Power
SKU: 160892
Price: 22.29 USD
Availability: InStock



Category EMI Filter Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Height	17.5mm
Length	44mm
Model	FHSMM06A1FR
Depth	25.2mm
Mount Type	Chassis Mount
Operating Frequency	0, 400Hz
Series	FHSM
Maximum Operating Temperature	110°C
Number Of Stages	1
Capacitance	0.1μF
Minimum Operating Temperature	-40°C
Maximum Current	6A
Number of Phases	1
Leakage Current	5μA
Maximum Voltage	264V ac
Termination Style	Quick Connect

Key Features

Housed in a compact and shielded metal chassis mount case suitable for medical equipment.
Incorporates quick connect 6.3 x 0.8mm Faston terminals for secure electrical connections.
Features a single-stage design with low leakage current of 5μA at 250VAC.
Suitable for Class I appliances with wide operating temperature range from -40°C to +110°C.
Includes a bleed resistor to safely discharge filter capacitors when power is removed.
Compact dimensions of 44mm length, 25.2mm depth, and 17.5mm height.
Designed to be mounted close to mains cable entry to minimize radiated emissions.
Manufactured in China and backed by a 3-year warranty.

Product Description

XP Power FHSMM06A1FR is a chassis mount EMI filter designed for single-phase power line filtering with a maximum current rating of 6A and voltage rating of 264V AC. It operates effectively across frequencies ranging from 0 to 400 Hz. The filter's chassis mount metal case provides shielding suited for sensitive environments such as medical applications, ensuring low earth leakage current of just 5μA at 250VAC.

This filter features a single-stage design and quick connect 6.3 x 0.8mm Faston terminal connections, facilitating easy and reliable mounting close to the mains cable entry point. The built-in bleed resistor ensures safety by discharging filter capacitors when power is disconnected, enhancing operational safety and longevity.

Operating temperature range from -40°C to +110°C allows full power operation up to +50°C, making it suitable for a variety of industrial, medical, and commercial equipment applications. The compact dimensions (44mm length x 25.2mm depth x 17.5mm height) allow for flexible integration in tight spaces.

This product is ideal for use in industrial, medical, and commercial electrical equipment requiring effective EMI noise suppression to comply with electromagnetic compatibility requirements. The shielded casing helps minimize interference, improving device performance and reliability.

Compact and shielded chassis mount metal body provides robust EMI filtering. Single-stage design suitable for medical and industrial equipment. Quick connect terminals for fast and secure installation. Wide operating temperature range ensures functionality in varied environments.

Low leakage current compliant with sensitive medical applications. Includes bleed resistor for safe capacitor discharge upon power off. Compact size facilitates integration in limited space installations. Three-year warranty supports product reliability and service assurance.

XP Power provides a reliable solution for EMI Filtering needs in industrial and commercial electronic equipment. Explore more products from XP Power in the Power Line Filters category at EnvMart for comprehensive EMI solutions.
