Molex PCB Header Pico-SPOX Series Right Angle Surface 3 Contacts 1.5 mm Pitch Shrouded 87438-0342

Free Delivery in India | Lowest Global Shipping Charges

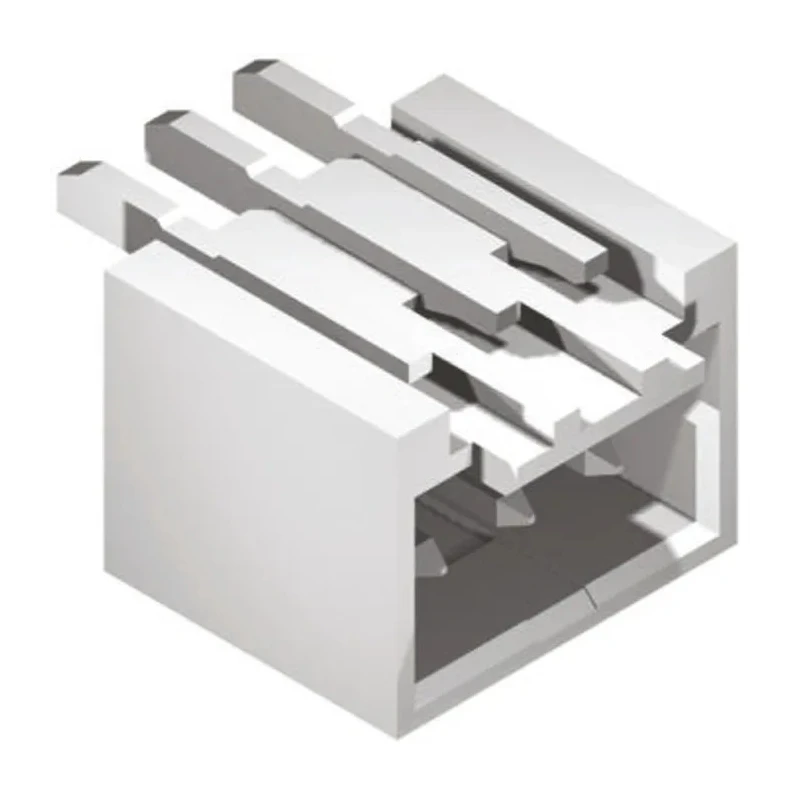

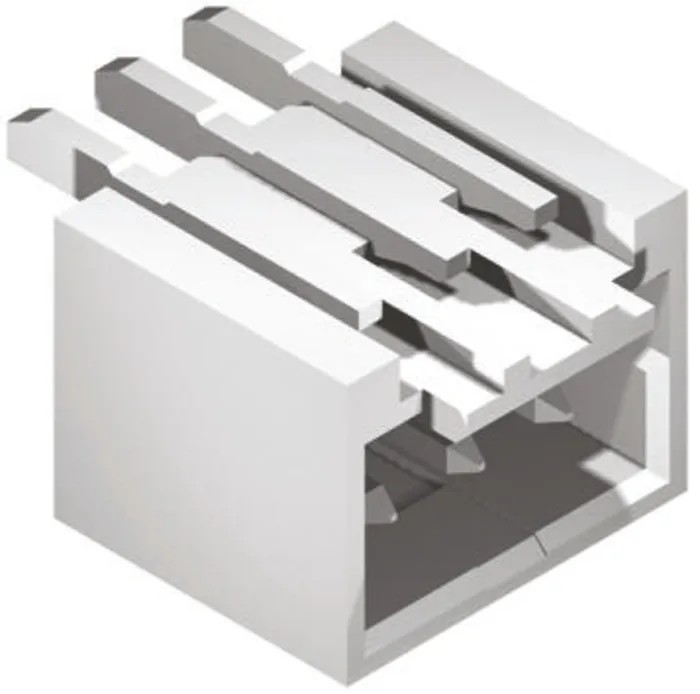

Molex PCB Header Pico-SPOX Series Right Angle Surface 3 Contacts 1.5 mm Pitch Shrouded 87438-0342

Name: Molex PCB Header Pico-SPOX Series Right Angle Surface 3 Contacts 1.5 mm Pitch Shrouded 87438-0342
Brand: Molex
SKU: 206276
Price: 0.38 USD
Availability: InStock



Category PCB Headers Brand Molex Condition New

Specifications

Country of Origin	India
Voltage	350V
Brand	Molex
Orientation	Right Angle
Current	3A
Mount Type	Surface
Housing Material	Thermoplastic
Contact Material	Brass
Series	Pico-SPOX
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Compact 1.5 mm pitch design allows use in tight packaging applications.
Rated for a maximum current of 3A using AWG #24 wires.
Shrouded housing constructed of thermoplastic for durability.
Right angle orientation facilitates surface mounting on PCBs.
Male contact gender with brass contacts plated in tin for reliable conductivity.
Supports operation between -55°C and 105°C.
Designed for solder termination ensuring secure electrical connection.
Meets 350V voltage rating suitable for various electronic applications.

Product Description

Molex 87438-0342 Pico-SPOX Series Right Angle Surface PCB Header is a high-performance connector designed for industrial electronic applications requiring compact and reliable wire-to-board connections.

This connector features a 1.5 mm pitch and a right angle surface mount style with a shrouded housing made from durable thermoplastic. The 3 male brass contacts are plated with tin to ensure excellent conductivity and corrosion resistance. It supports a maximum current rating of 3A, making it well suited for applications using AWG #24 wires.

Operating temperature ranges from -55°C to 105°C allow for use in harsh industrial environments. The connector terminates via solder joints, providing a strong and stable bond to printed circuit boards. Rated for 350V, it meets requirements for a broad range of electronic equipment.

The Pico-SPOX series connectors are specifically engineered for high current wire-to-board configurations, ideal for tight packaging spaces commonly found in industrial, manufacturing, and automation sectors. This product mates with compatible housings from the 87439 series, enhancing modular system design flexibility.

Compact 1.5 mm pitch design supports high-density PCB layouts. Shrouded thermoplastic housing protects contacts and ensures secure mating. Right angle orientation simplifies surface mount PCB assembly. Male brass contacts with tin plating provide reliable conductivity.

Current rating of 3A supports robust electrical connections. Wide operating temperature range suits diverse industrial environments. Solder termination ensures durable mechanical and electrical connection. 350V voltage rating suitable for multiple electronic applications.

Compatible with 87439 series housing for modular connectivity. This PDF header is widely used in industrial electronics manufacturing, automation equipment, consumer electronics, and other sectors needing compact, high-reliability connectors.
