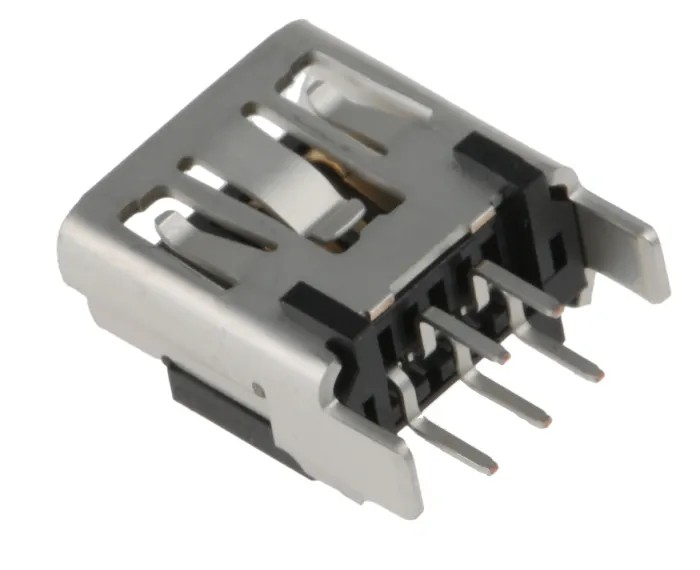

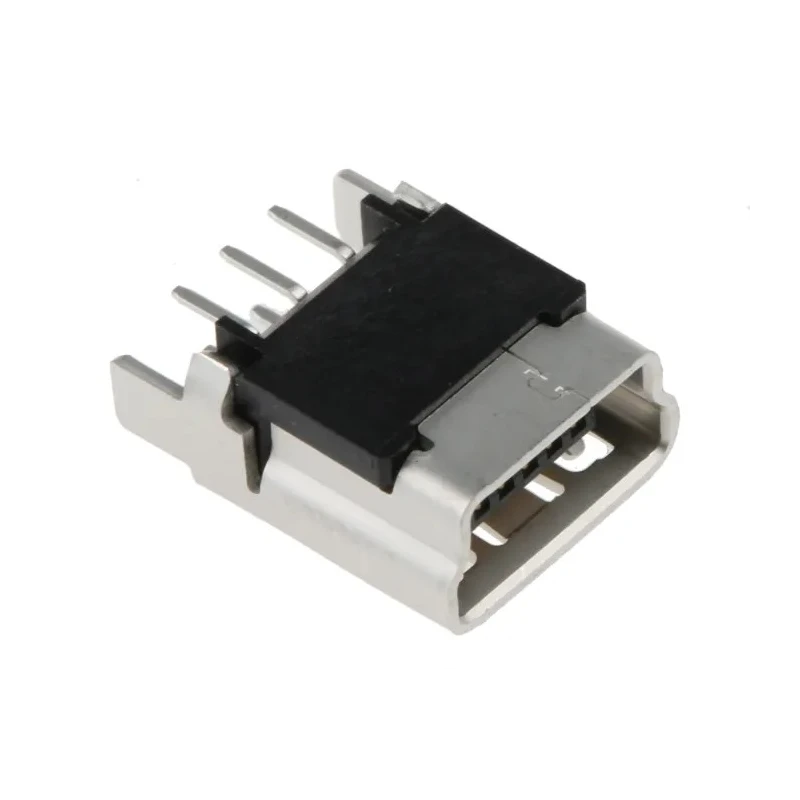

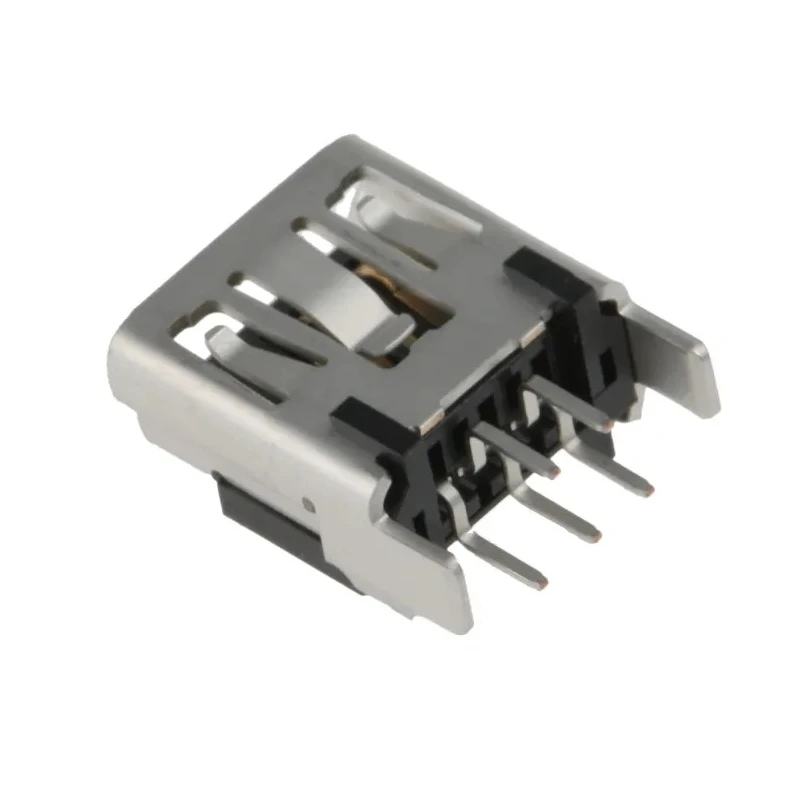

Molex Straight Through Hole Female 1 Port USB Type B Connector USB 2.0 500075-1517
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Supports USB 2.0 specification with data transfer speeds up to 480 Mbps.
- Rated for 1A current and 30V voltage for low-voltage electronic applications.
- Copper alloy contacts with gold plating ensure reliable conductivity and corrosion resistance.
- Operating temperature ranges from 0°C to 50°C for stable industrial performance.
- Polarised design prevents misalignment and ensures quick assembly on PCBs.
- Compact, lightweight design weighing approximately 0.52 grams facilitates easy handling.
- Includes PCB locator and retention feature to secure connection in high mechanical stress environments.
- Ideal for applications in communication systems, household appliances, and office equipment.
Product Description
Molex 500075-1517 is a straight, through-hole mounted female USB Type B connector compliant with the USB 2.0 specification. Designed to enable reliable data transmission for computers and multimedia devices, it supports a high data transfer rate of up to 480 Mbps, suitable for quick and efficient data handling.
This connector is rated for a maximum current of 1A and operates at voltages up to 30V, making it well-suited for low-voltage applications. Its copper alloy contacts are gold-plated to resist corrosion and ensure consistent electrical performance over time. The connector features a polarised design that aligns with the PCB and mating parts, facilitating fast and precise assembly.
Operating reliably within a temperature range of 0°C to 50°C, this product is engineered for industrial use where mechanical robustness is important. The integrated PCB locator and retention features guarantee a secure connection and resistance to mechanical stress, making it ideal for demanding environments. Weighing only 0.52 grams, the lightweight construction allows easy incorporation into electronic assemblies without adding significant bulk.
Applications include use in communication systems, household appliances, and office equipment where USB data and power connectivity are required. The Molex USB On-The-Go (OTG) series complements this product by providing a variety of USB connector types, optimized for portable and mobile equipment.
Supports USB 2.0 data transfer speeds up to 480 Mbps. Rated for 1A current and 30V voltage capacity. Gold-plated copper alloy contacts for durability and conductivity. Through-hole mounting enhances mechanical strength on PCBs.
Polarised and keyed to prevent misalignment during assembly. Wide operating temperature range for dependable industrial use. Integrated PCB locator and retention for secure connections. Lightweight design suitable for compact electronic devices.
Explore more USB Connectors and electronic components in our comprehensive category at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer speeds of up to 480 Mbps, compliant with the USB 2.0 specification.
This model is rated for a maximum current of 1A and operates at voltages up to 30V.
The contacts are made from copper alloy and are gold-plated to ensure reliable conductivity and corrosion resistance.
It operates reliably within a temperature range of 0°C to 50°C.
It features a through-hole mounting type, which enhances mechanical strength on printed circuit boards (PCBs).
Yes, it has a polarised design that prevents misalignment and ensures quick assembly on PCBs.
It weighs approximately 0.52 grams, making it lightweight and easy to handle.
It is ideal for applications in communication systems, household appliances, and office equipment requiring USB data and power connectivity.
It uses a solder termination type for secure connections.
This model is a female USB Type B connector.
The country of origin for this connector is India.
It belongs to the Molex On-The-Go series, which includes various USB connector types optimized for portable and mobile equipment.
