RS PRO USB Connector Panel Mount Female/Female, 2-Port USB Type B to A, USB 2.0 235-4752

Free Delivery in India | Lowest Global Shipping Charges

RS PRO USB Connector Panel Mount Female/Female, 2-Port USB Type B to A, USB 2.0 235-4752

Name: RS PRO USB Connector Panel Mount Female/Female, 2-Port USB Type B to A, USB 2.0 235-4752
Brand: RS PRO
SKU: 404357
Price: 11 USD
Availability: InStock



Category USB Connector Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Orientation	Straight
Operating Temperature	Min -20 °C, Max +50 °C
Model	235-4752
Mount Type	Panel
Current Rating	1.5 A max
Series	RS PRO
Number Of Ports	2
Termination Type	Plug-In
Maximum Operating Temperature	50°C
Insulation resistance	20 mΩ min
Frame	Diecast, Nickel or black plated
Voltage Rating	30 V AC
Minimum Operating Temperature	-20°C
Interfaces	USB 2
USB Type	USB Type B to A
Shell	Nickel plated steel
Contact Resistance	50 mΩ max
Contacts	Gold Plated
Connector Gender	Female/Female
USB Specification	USB 2.0
Dielectric Withstanding Voltage	500V AC
Insert	ABS
USB 2.0 B-A FT Nickel frame, CSK holes, RS stock no	235-4752
USB 2.0 B-A FT Black metal frame, CSK holes, RS stock no	235-4753

Key Features

The connector supports USB 2.0 data transfer speeds for reliable high-speed connectivity.
Panel mount design with front and rear mounting capability ensures versatile installation.
No soldering or punch termination required, enabling simple push-fit installation with retaining screws.
Constructed with ABS insert, diecast nickel or black plated frame, nickel-plated steel shell, and gold-plated contacts for durability.
Operates within a temperature range of -20°C to 50°C, suitable for telecommunications and networking applications.
Slim profile with low rear profile ideal for minimal space applications.
Maintains excellent contact resistance max 50 mΩ and insulation resistance min 20 mΩ.
Dielectric withstanding voltage is 500 V AC for increased reliability.

Product Description

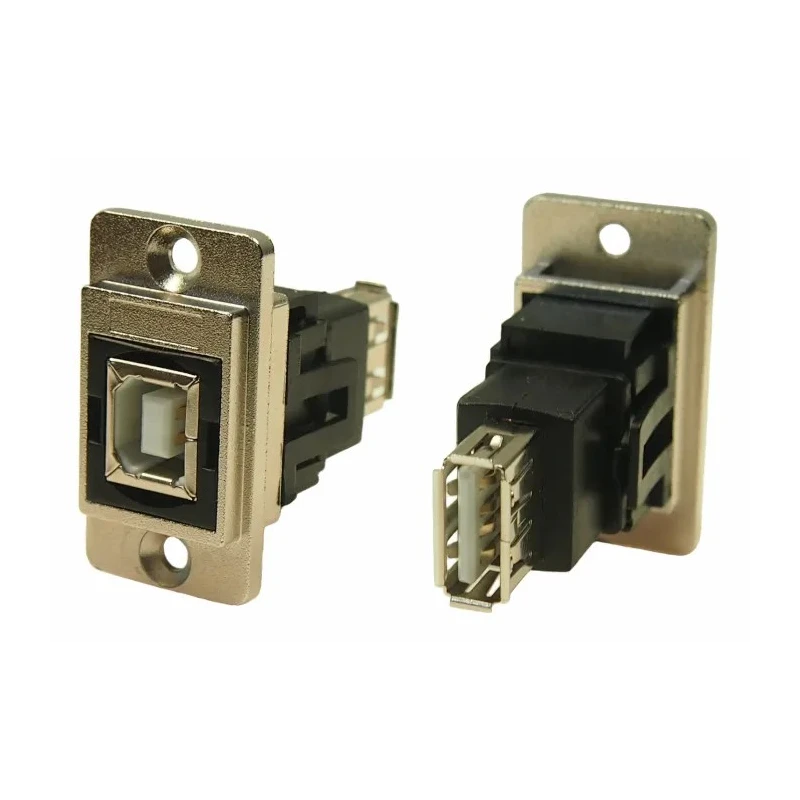

RS PRO 235-4752 USB Connector is a dual-port, panel-mounted feedthrough connector with female-to-female USB Type B to A ports conforming to USB 2.0 standards. This product is designed for high-speed data transfer applications requiring robust and reliable connectivity.

The panel mount configuration allows front or rear installation in enclosures or rack panel setups without the need for soldering or punch terminations. Installation is straightforward with a push-fit mechanism secured by retaining screws.

Constructed with an ABS insert combined with a diecast nickel or black plated frame and nickel-plated steel shell, the connector offers mechanical strength and corrosion resistance. Gold-plated contacts ensure reliable electrical connections with minimal contact resistance.

Operating comfortably within a temperature range from -20°C to 50°C, this connector is suitable for use in telecommunications, Ethernet network interfaces, audio soundboards, and computer interfaces. It features a voltage rating of 30 V AC and can handle currents up to 1.5 A maximum.

The slim and low-profile design makes it ideal for applications where minimal space is available. Performance specifications include a maximum contact resistance of 50 mΩ, a minimum insulation resistance of 20 mΩ, and dielectric withstanding voltage of 500 V AC, ensuring durability and signal integrity.

The connector supports USB 2.0 data transfer speeds for reliable high-speed connectivity. Panel mount front and rear installation compatible. No solder or punch termination; push-fit with retaining screws. Durable materials including ABS insert and gold-plated contacts.

Temperature operating range from -20°C to 50°C. Voltage rating of 30 V AC and current rating of 1.5 A max. Slim profile for minimal space usage in rack or enclosure panels. Ensures excellent contact and insulation resistance parameters.

This RS PRO feedthrough connector is a high-quality solution engineered for demanding industrial, telecommunications, networking, audio, and computer applications. Its robust design and ease of installation provide reliable performance with minimal maintenance.

Explore more RS PRO connectors and related products in the Electronics Components category at EnvMart for superior quality and value.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum current rating for this connector is 1.5 A.

It operates within a temperature range of -20°C to 50°C.

Installation is straightforward with a push-fit mechanism that is secured by retaining screws, eliminating the need for soldering or punch terminations.

This connector features dual female-to-female USB Type B to A ports, conforming to USB 2.0 standards.

It is constructed with an ABS insert, a diecast nickel or black plated frame, a nickel-plated steel shell, and gold-plated contacts.

The dielectric withstanding voltage is 500 V AC, ensuring increased reliability.

The maximum contact resistance is 50 mΩ, which helps maintain signal integrity.

The minimum insulation resistance is 20 mΩ, contributing to its performance reliability.

The voltage rating for this connector is 30 V AC.

Yes, it has a panel mount design that allows for both front and rear mounting options.

This connector is suitable for telecommunications, Ethernet network interfaces, audio soundboards, and computer interfaces.

The connector has a straight orientation.
