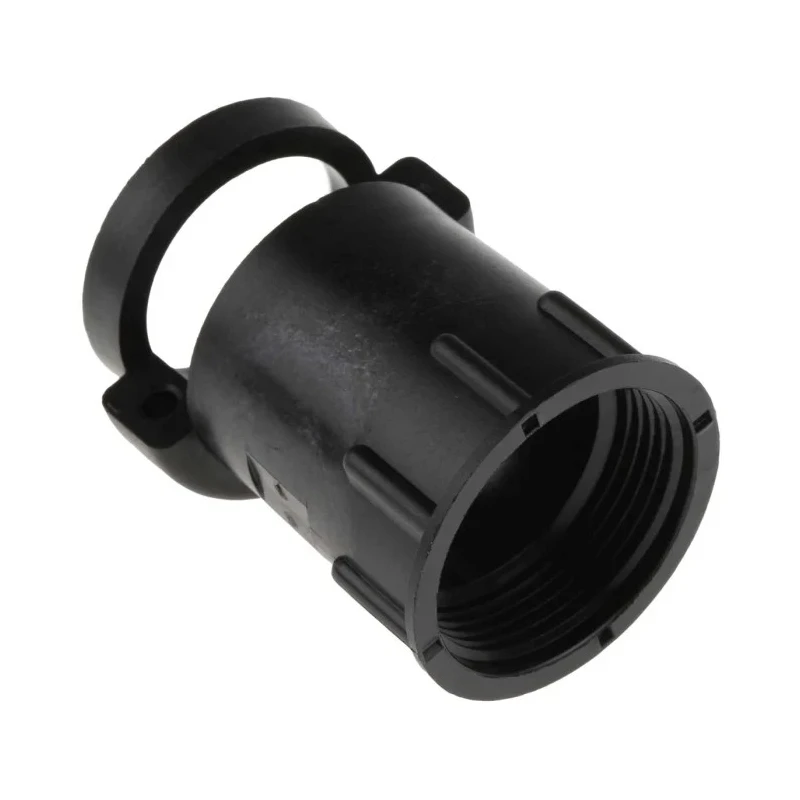

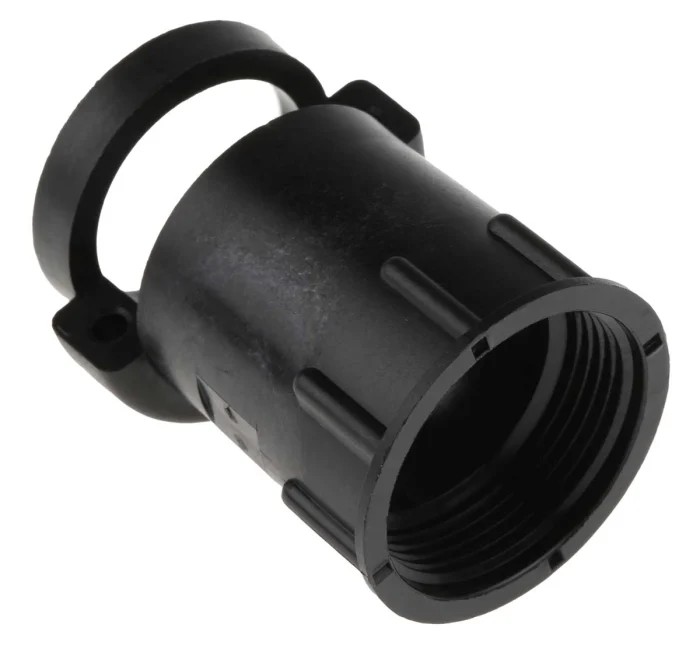

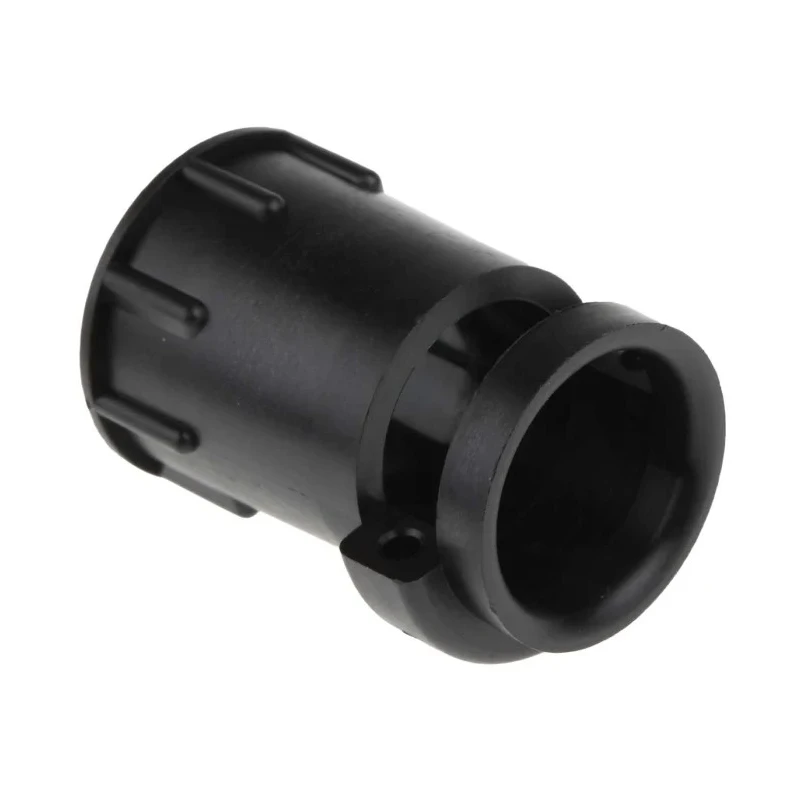

TE Connectivity CPC Series 17 Shell Size 20-Way Black Thermoplastic Cable Clamp 206322-9

TE Connectivity 206322-9 cable clamp is a durable 20-way black thermoplastic cable clamp with a 17 shell size, offering effective strain relief and secure connections in demanding industrial and electronic applications.

Manufactured from thermoplastic material, this cable clamp supports a maximum cable bundle diameter of 17.86mm and features a 15/16-20 UNEF-2B thread size for reliable mechanical fastening.

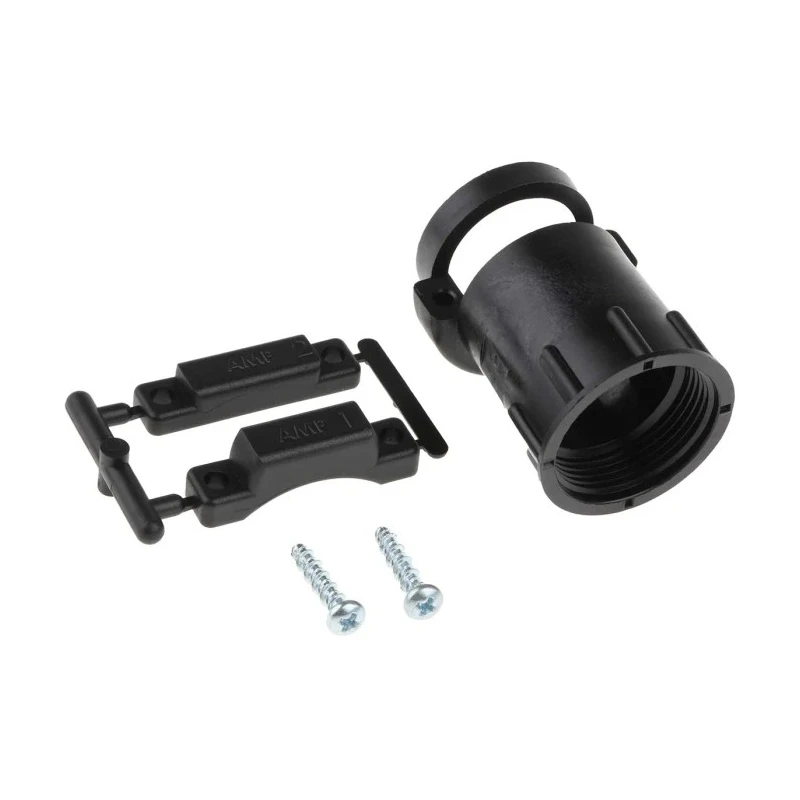

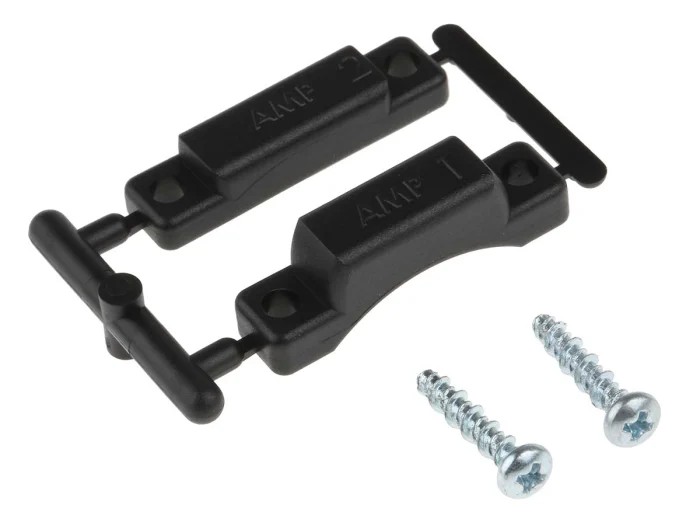

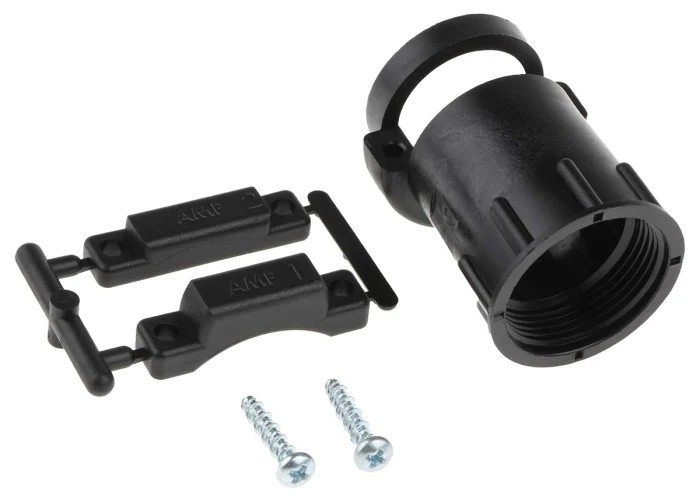

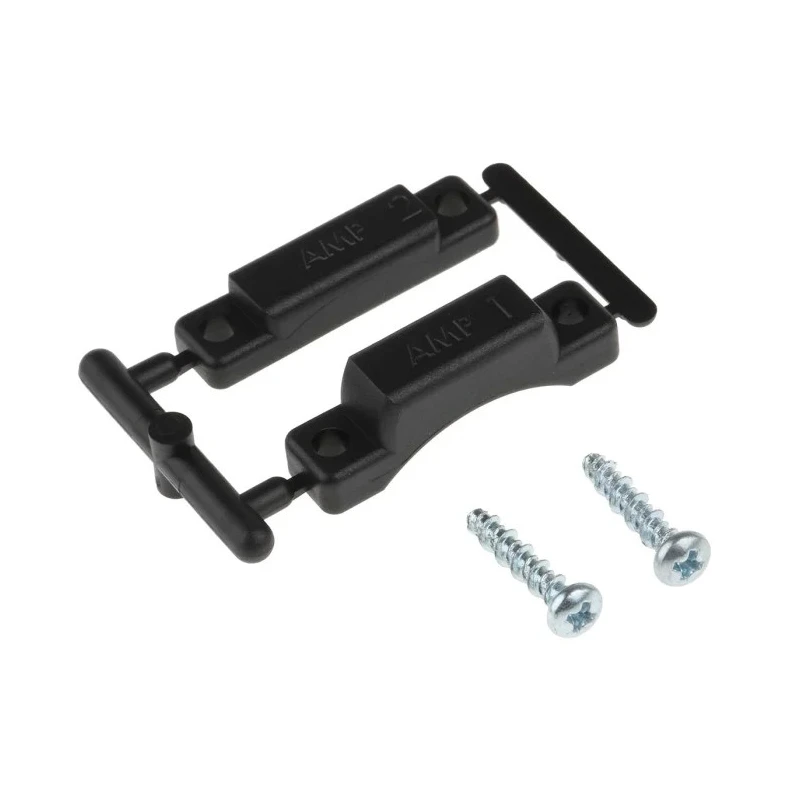

The clamp’s design includes adjustable clamping areas achieved by inverting or changing clamping inserts, enabling customized cable management tailored to specific setups. It uses a quick thread assist and positive detent coupling for fast connection and disconnection, ensuring maintenance efficiency and reducing downtime.

The CPC series connectors accept Type-III+, size 20 signal contacts, Type-XII power contacts, or AMP POWERBAND contacts, allowing this clamp to support a range of electrical configurations.

The clamp’s lightweight and polarized design ensures proper connector mating, preventing misalignment and ensuring electrical integrity. Removable contacts and a replaceable coupling ring simplify field repair operations.

This product is compliant with multiple international standards such as ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and UL94 V-0, with RoHS compliance, ensuring reliability and safety in use.

Applications for this cable clamp span aerospace and defense equipment, agricultural machinery, communications, construction, HVAC, industrial automation, lighting, medical devices, automotive, off-road vehicles, rail, and transit systems.

The clamp offers a maximum bundle diameter of 17.86mm for versatile cable management. It features a thread size of 15/16-20 UNEF-2B for easy installation and removal. The lightweight design ensures minimal added weight to assemblies.

Polarized design allows proper mating of connector halves. Removable contacts and replaceable coupling ring facilitate field repairs efficiently. Meets industry standards including ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007, and UL94 V-0 with RoHS compliance.

This cable clamp is suitable for aerospace, defense, industrial machinery, medical instrumentation, automotive, and HVAC applications. Compatible with CPC series receptacles and plugs for signal, power, or combined contacts.
